Balancing Underfloor Heating Water: Why It Matters and How to Do It?

Underfloor heating looks simple from the surface—warm floors, even comfort, silent operation. But behind the scenes, it only works properly if the water flow across every loop is balanced.
If it’s not, you get the classic symptoms: some rooms too hot, some too cold, slow heat-up times, and an oversized energy bill.

Balancing is the game-theory layer of hydronics: you’re forcing every loop to play fair instead of letting the shortest loop dominate the system.

Why Balancing Is Critical

1. Uneven Heat Distribution

Each loop in an underfloor heating manifold has different lengths.
Short loops have lower resistance → they steal more flow.
Long loops have higher resistance → they get starved.

Result:
Living room overheats while the corridor stays cold.

Balancing forces the flow to match the design output of each loop.

2. Faster Heat-Up Times

If one loop is hogging the flow, the boiler or heating pump cycles inefficiently.
Balanced loops let the entire floor reach temperature together.

3. Lower Energy Consumption

A balanced system prevents:

• Over-pumping

• Constant boiler cycling

• Wasted heat in short loops

This directly cuts running costs.

4. Extends System Life

Unbalanced flow means your pump is working harder than needed.
With proper balancing, pump load is reduced → components last longer.

How to Balance an Underfloor Heating System

Depending on your manifold, you balance using flow meters, balancing valves, or actuators with thermostats.
The core principle stays the same: match flow rate to design requirement.

1. Know the Flow Rates

Each loop should have a target flow, normally between 1–3 L/min, depending on:

• Pipe length

• Room heat loss

• Floor covering

If you don’t have the design sheet, you approximate:

• Long loop → higher flow

• Short loop → lower flow

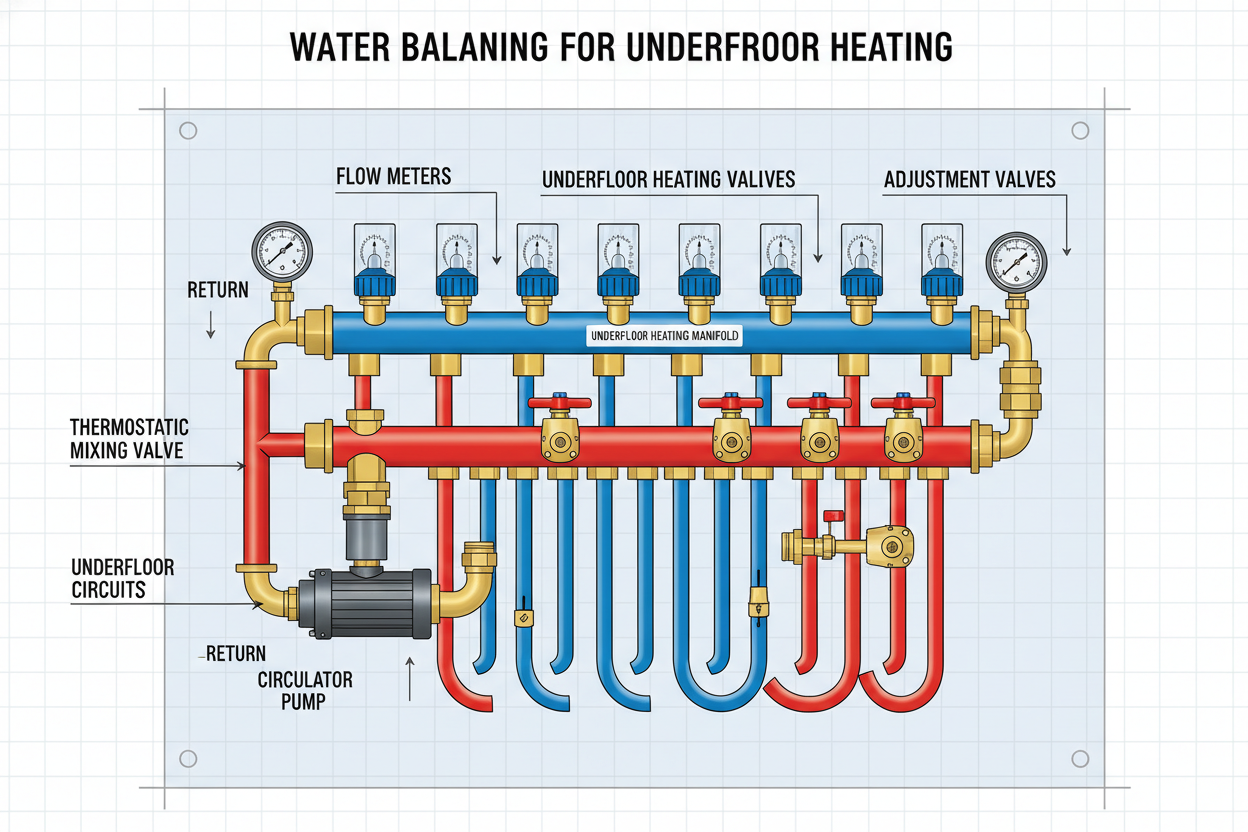

2. Use the Manifold Flow Meters

Most modern manifolds have clear flow gauges.
You adjust the cap to increase or restrict flow until each loop hits its target.

Process:

1. Turn all loops on.

2. Set pump to normal speed.

3. Open all valves fully.

4. Adjust one loop at a time:

   • Too cold? Increase flow.

   • Too warm? Reduce flow.

3. Balance by Temperature (Old Systems Without Meters)

If there are no flow meters:

1. Run heating for 30–45 minutes.

2. Measure the pipe temperature on the flow line of each loop.

3. Target: roughly equal temperatures across all loops.

4. Restrict the warmest loops gradually until they match the cooler ones.

It’s slower but effective.

4. Actuators + Room Thermostats

Every loop connected to a thermostat should still be balanced.
Thermostats modulate demand, not flow fairness.
You balance first, then let thermostats handle room-by-room control.

5. Recheck After 24 Hours

Systems settle. Air escapes. Temperatures stabilize.
Recheck flows the next day and fine-tune.

Common Mistakes

• Setting all loops to the same flow (wrong—loop lengths differ).

• Balancing with some valves closed.

• Using max pump speed to "force" heat (inefficient).

• Ignoring long loops—they always need more flow.

The Bottom Line

Underfloor heating is only as good as its balancing.
It’s the difference between:

• A smooth, efficient, even system, and

• A patchy, expensive, frustrating one.

Balancing ensures every room gets the heat it was designed for, at the lowest possible running cost.
If your heating feels inconsistent, 90% of the time the fix is not a new pump or boiler—it’s simply proper flow balancing.
