5m vs 8m Tape Measure: Choose Reach Without Carrying Excess

5m vs 8m tape measure is a reach decision, not a contest to carry the longest blade. The two Draper auto-lock models here share a 25mm blade, metric and imperial markings, Class II accuracy and push-button retraction. The practical difference is whether a compact 5m/16ft reach covers your usual rooms and setting-out work, or an 8m/26ft blade prevents repeated moves across longer runs.

Quick Shop: 5m vs 8m tape measure

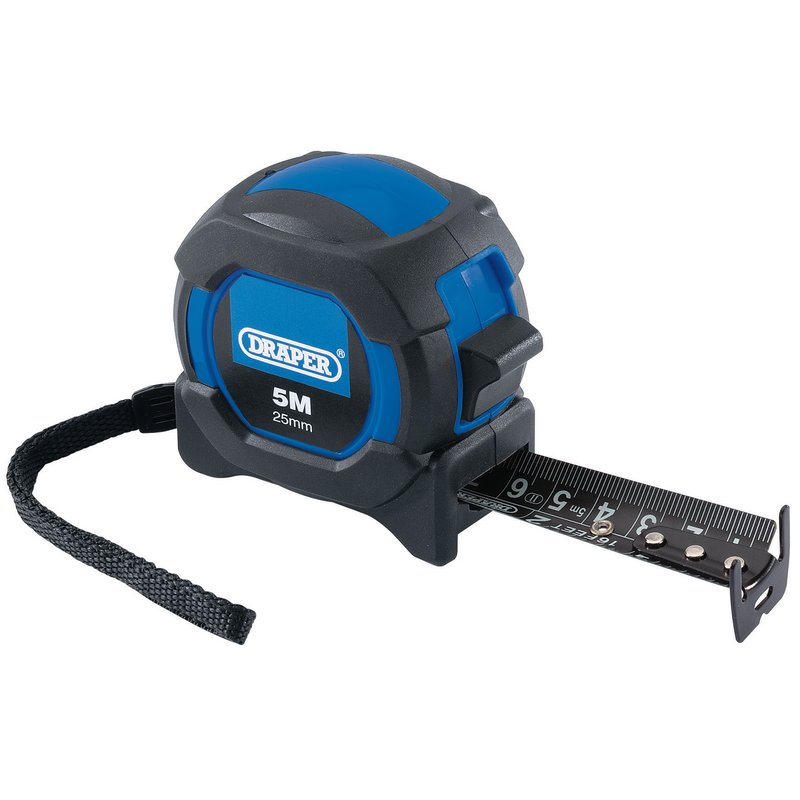

Draper Auto Lock Measuring Tape 5m/16ft × 25mm

The shorter model suits room measurements, first-fix marking and repeat bench work where five metres covers the run. Its auto-lock holds the blade until the release is pressed.

View the Draper 5m auto-lock tape

Draper Auto Lock Measuring Tape 8m/26ft × 25mm

The eight-metre model gives extra reach for longer walls, service routes and open setting-out. Choose it when that extra three metres removes an intermediate mark or second setup.

View the Draper 8m auto-lock tape

5m vs 8m tape measure: compare the working reach

Choose the 5m tape for compact rooms and repeat work

The Draper 5m/16ft auto-lock tape measure is the straightforward choice when most measurements sit comfortably inside five metres. Electricians marking accessory heights around a room, plumbers checking pipe centres and installers measuring short components rarely gain anything from carrying unused blade length.

Shorter reach does not change the measurement method. Keep the tape in the line being measured, pull the blade without twisting it and read from directly above the graduation. If the hook is being used against an edge, seat it consistently. When measuring into an internal corner, use a method that accounts for the case length rather than bending the blade sharply and estimating the result.

The compact option also fits repeat work where one known dimension is checked many times. For example, setting a run of clips, checking enclosure positions or transferring a cut length can all stay within the range of the 5m Draper tape. The point is not that five metres is sufficient for every room; it is that the tool should match the longest reliable measurement in the actual task.

Choose the 8m tape when longer runs reduce joins

The Draper 8m/26ft auto-lock tape measure earns its place when walls, containment routes or service runs regularly pass the five-metre mark. Measuring one continuous run avoids adding two readings and reduces the chance of losing an intermediate datum. That is useful on open-plan areas, longer corridors and exterior setting-out where the endpoints can be reached safely.

Extra blade length does not mean the blade should be extended unsupported through a busy work area. Use a second person, a secure end point or another suitable method where needed. Keep the line clear, avoid drawing the blade across sharp edges, and do not let it snap back uncontrolled. The push-button release manages retraction, but the operator still needs to guide the blade into the case.

If the longest run is only occasional, decide whether the extra reach justifies carrying the larger option every day. If six- and seven-metre measurements are routine, the 8m Draper tape removes a predictable limitation. If nearly every job stays below five metres, the longer blade may add no practical benefit.

5m vs 8m tape measure: selection by trade task

Electrical first-fix and containment

Use a tape length that covers the intended route between fixed datums. The 5m model suits accessory layouts and short containment sections; the 8m model is more useful across a long wall or corridor. Measurements should support the drawing and setting-out plan, not replace checks for level, plumb, bend allowance or manufacturer spacing.

Plumbing pipe runs and fixture positions

Measure from defined faces and note whether the figure is a centreline, finished-face or cut length. Allow separately for fittings, insertion depth and movement where the system requires it. A longer tape can cover a room in one pull, but it does not calculate those allowances. Write the datum with the measurement so the cut list remains understandable at the bench.

Bench work and material cutting

For repeat cuts, confirm the first piece before copying the mark across a batch. A tape measure is useful for general setting-out, while a rigid rule, square or stop may be the better control for short repetitive work. Never use the blade as a cutting guide, and keep it away from rotating machinery and live electrical parts.

Check the exact model before collection

Draper's current manufacturer pages identify the 5m/16ft × 25mm auto-lock tape and the 8m/26ft × 25mm auto-lock tape as Class II, dual-scale models with auto-lock and push-button release. The APM product pages bind the stocked items to barcodes 5010559703654 and 5010559703661 respectively. Use the live pages to confirm the current item details before ordering or travelling.

For related equipment, browse APM's measuring tapes and hand tools. Choose by working reach first. Five metres is the efficient answer when it covers the task; eight metres is the practical answer when longer continuous measurements are normal.
