Blue MDPE pipe is the standard material for underground cold water mains in the UK. Flexible, corrosion-resistant, and rated for mains pressure, it replaced lead and copper as the pipe of choice for supply runs from the water main to the building stopcock. If you are laying a new supply, extending a run to an outbuilding, or replacing a failed lead or copper service pipe, blue MDPE is what you reach for. Here is everything you need to know to spec and install it correctly.

What Is MDPE?

MDPE stands for Medium Density Polyethylene. It is a semi-rigid plastic pipe extruded in continuous coils or straight lengths, rated for both mains water pressure and the chemical conditions found in UK soils. Unlike copper, it will not corrode in aggressive ground conditions. Unlike rigid plastic, it can be coiled and laid around obstacles without the need for fittings at every change of direction.

Colour coding is standardised:

• Blue — potable water (drinking water supply)
• Yellow — natural gas (do not confuse with water pipe on site)
• Black — non-potable water, irrigation, or general drainage

Only use blue WRAS-approved MDPE for potable water supplies. The Aquaflow fittings we stock are all WRAS approved and carry the correct markings for water supply use.

Sizes and When to Use Each

MDPE pipe for domestic and light commercial water supply is available in the following sizes (outside diameter):

• 20mm — light domestic supply, garden tap feeds, short runs to outbuildings. Suitable for single outlet feeds at low demand.
• 25mm — standard domestic supply pipe. This is the most common size for a house service connection from the water main. Sized to give adequate flow at mains pressure for a typical 3–4 bedroom dwelling.
• 32mm — larger domestic properties, flats, or commercial premises with higher demand. Also used where the run length is long and friction losses would reduce pressure significantly on 25mm.
• 50mm and 63mm — commercial supplies, multi-unit residential, industrial applications.

For most domestic jobs, 25mm is the correct size. Your water supplier may specify the minimum size for a new connection — check before digging.

Coil vs Straight Lengths

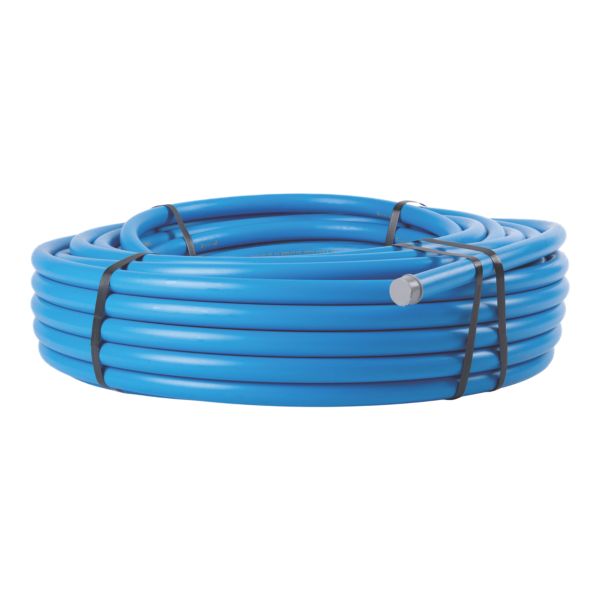

Blue MDPE is available in coil form (25m, 50m, 100m coils) and in straight 6m lengths. Coil is the practical choice for most supply runs — you can feed it through a narrow trench and around obstacles without joints. Straight lengths suit shorter runs or where the pipe needs to transition to rigid pipework at both ends.

Minimum bending radius for 25mm MDPE is approximately 500mm (varies by manufacturer and temperature — in cold conditions the pipe stiffens and requires a larger bend radius). Do not force tight bends. If you need a sharp change of direction, use an elbow fitting rather than bending the pipe.

SDR Rating and Pressure

SDR (Standard Dimension Ratio) defines the wall thickness relative to the pipe diameter. For potable water mains at UK domestic pressures (typically up to 10 bar), SDR11 is the standard rating — the wall thickness is 1/11th of the outside diameter. SDR17 is a thinner-wall variant used for lower pressure applications and is not appropriate for direct mains connection. Always confirm SDR11 when ordering for water supply work.

MDPE Compression Fittings: How They Work

MDPE uses dedicated compression fittings — these are not the same as copper compression fittings and are not interchangeable. An MDPE compression fitting works as follows:

1. The pipe end is pushed into the fitting body.
2. A grab ring inside the fitting grips the pipe outer surface as the nut is tightened.
3. An O-ring provides the water seal.

Pipe inserts are essential. MDPE is a semi-flexible plastic — without a support insert inside the pipe end, the pipe walls collapse slightly under compression, and the joint will leak or fail. Always fit the correct insert before making any compression joint. Inserts are size-specific: a 25mm insert will not fit in 20mm pipe.

The standard fitting range covers:

• Straight couplings — joining two lengths of pipe, or after a repair cut
• 90° elbows — changes of direction where bending radius is not achievable
• Tees — branch connections
• End caps / stop ends — temporary or permanent termination
• Reducer adaptors — transitioning between pipe sizes
• Copper adaptors (15mm, 22mm) — transitioning from MDPE to copper or plastic inside the building
• Lever ball valves — inline isolation, designed specifically for MDPE pipe ends

Transition to Copper or Push-Fit Inside the Building

MDPE is not used inside the building — it terminates at or near the incoming stopcock. The transition from MDPE to copper or plastic push-fit is made with a threaded or compression adaptor. A 15mm x 25mm MDPE adaptor connects 25mm MDPE supply pipe directly to 15mm copper or plastic pipework. This fitting has a compression MDPE end (with insert) on one side and a 15mm copper compression end on the other.

For 32mm MDPE feeds transitioning to 22mm copper, use the equivalent 22mm x 32mm adaptor.

Burial Depth Requirements

Water Regulations require mains service pipes to be buried at sufficient depth to prevent freezing and mechanical damage:

• 750mm minimum under roads, driveways, and areas subject to vehicle loading
• 450mm minimum under garden and landscaped areas

Where depth is insufficient — for example crossing a shallow path — sleeve the MDPE in a larger duct pipe (typically 50mm or 63mm rigid PE or PVC). The sleeve allows the service pipe to be withdrawn and replaced without excavation, and provides additional mechanical protection.

Where the run exits the ground and enters the building below the DPC, wrap the pipe in lagging for the section exposed above ground level and in the wall sleeve.
