Boiler Filling Loops — Types, Replacement, and How to Top Up Sealed System Pressure for UK Plumbers

Sealed central heating systems rely on a filling loop to replenish system water lost through minor leaks, bleed operations, or maintenance drains. When a boiler pressure gauge drops below 1 bar or a low-pressure fault locks out the boiler, topping up via the filling loop is usually the first corrective action — but only if the underlying cause has been identified and fixed. This guide covers filling loop types, replacement procedure, the correct repressurisation method, and when inhibitor dosing is required.

How Sealed Systems Work

A sealed central heating system is isolated from the atmosphere. Unlike open-vented systems with a header tank in the loft, a sealed system maintains pressure via a pre-charged expansion vessel and a safety pressure relief valve (PRV). The system is filled and topped up through a filling loop — a temporary or permanent connection to the cold mains supply.

Normal operating pressure for most domestic sealed systems is 1.0–1.5 bar cold (boiler off), rising to 1.5–2.0 bar when hot. Most boilers fault on low pressure below 0.5–0.8 bar and on high pressure above 3.0 bar.

Filling Loop Types

Straight (Rigid) Filling Loop

A straight double-check valve filling loop with two isolating valves. Connects between the cold mains supply and the heating return pipework using 15mm compression or push-fit connections. WRAS-approved models incorporate a double check valve to prevent backflow of heating water into the mains (Fluid Category 3 protection). This is the standard installation for most UK boilers.

• Fit: Permanent installation between mains and heating circuit — two 15mm connections, usually below or beside the boiler
• Identify: Two isolating valves (one on mains side, one on heating side) with a flexible hose or rigid body between them
• Operate: Open both valves to fill, close both before disconnecting (permanent loops are left connected but closed)

Flexible (Temporary) Filling Loop

A braided stainless hose with double-check valves and two compression-end fittings. Connected only when topping up, then removed. Required by some manufacturers' warranty conditions and by Building Regulations in some configurations. The flexible version is typically used where a permanent connection has not been installed or where the boiler has dedicated filling key ports.

Combination Filling Key Systems

Many modern combi boilers (Worcestershire Bosch, Vaillant, Ideal) incorporate a built-in filling loop with a key-operated valve rather than external pipework. The filling key is supplied with the boiler. If the key is lost, a replacement is available from the boiler manufacturer. Check the boiler manual before purchasing an external loop for combi installations — an external loop may not be required or may not fit without modification.

Magnetic Filter Filling Kits

Combined inline magnetic filter and filling loop kits (e.g., Calmag HF2 or equivalent) integrate a 22mm central heating filter with a built-in filling loop connection and dosing point. These are increasingly specified for new installs and system upgrades where a standalone filter and filling loop would otherwise need separate installation.

When to Top Up Boiler Pressure

Top up sealed system pressure when the cold pressure gauge reads below 1.0 bar and there is no active leak, component fault, or PRV failure. Do not top up repeatedly without investigating root cause — frequent pressure loss indicates a leak or failed expansion vessel pre-charge.

Safe to top up when:

• Pressure has dropped following bleeding radiators (bleed valves release both air and water)
• Pressure has dropped following a planned maintenance drain
• Pressure has dropped once over several months with no obvious leak (minor through-system loss)

Investigate before topping up when:

• Pressure drops repeatedly within days or weeks — indicates active leak, PRV weeping, or expansion vessel failure
• PRV discharge pipe is wet — vessel pre-charge may have failed, causing PRV to lift on every heat cycle
• Visible water around the boiler, pipework, or radiator valves — find and fix the leak first

Replacement Procedure — Straight Filling Loop

Filling loops can fail at the check valves (allowing backflow) or at the braided hose (developing leaks after years of flexing). Replace a suspect loop as a full assembly rather than attempting to service individual valves.

Tools and Materials Required

• Replacement 15mm straight filling loop assembly (with integrated double check valve)
• PTFE tape (for compression joint threads on the tail connections)
• Adjustable spanners × 2
• Towels and small bowl (residual water will be released on disconnection)

Replacement Steps

1. Isolate mains supply — close the mains stopcock or the service valve feeding the filling loop
2. Isolate heating circuit — close both isolating valves on the filling loop
3. Release pressure — with both valves closed, operate the boiler briefly until pressure returns to normal, then vent any residual pressure via a manual air vent rather than through the loop
4. Disconnect old loop — undo compression nuts at both ends; residual water will drain — have a bowl ready
5. Apply PTFE tape — three to four turns on the male threads of the new loop tail connections, wound clockwise in the direction of thread rotation
6. Fit new loop — hand-tighten compression nuts, then a quarter-turn with spanners. Do not overtighten compression connections
7. Test for leaks — slowly open mains valve, check all joints for leaks before opening heating circuit valve
8. Fill to pressure — open both valves, watch the boiler pressure gauge rise to 1.0–1.5 bar cold, then close both valves
9. Dose with inhibitor — if more than 10–20% of system volume has been replaced, dose with central heating inhibitor at the appropriate radiator bleed valve or dosing point

Repressurisation Step-by-Step

Where the filling loop is already installed and only repressurisation is required (not loop replacement):

1. Confirm the boiler is off and the system is cold — adding water to a hot system risks thermal shock and inaccurate pressure readings
2. Locate the filling loop — usually below the boiler on the heating return pipework, or as a built-in combi key port
3. Confirm both isolating valves are closed (handle perpendicular to the pipe = closed)
4. Slowly open the mains-side valve — you will hear water entering the system
5. Open the heating-side valve — monitor the pressure gauge
6. When the cold gauge reads 1.0–1.2 bar, close the heating-side valve first, then the mains-side valve
7. Confirm the pressure remains stable (gauge should not drop after valves are closed)
8. Fire the boiler and re-check pressure when hot — should be 1.5–2.0 bar at normal operating temperature

Important: Never exceed 1.5 bar when filling a cold system. The pressure will rise 0.3–0.5 bar as the system heats up. Overfilling cold pushes the PRV above its lift pressure (typically 3.0 bar) when hot, causing PRV discharge.

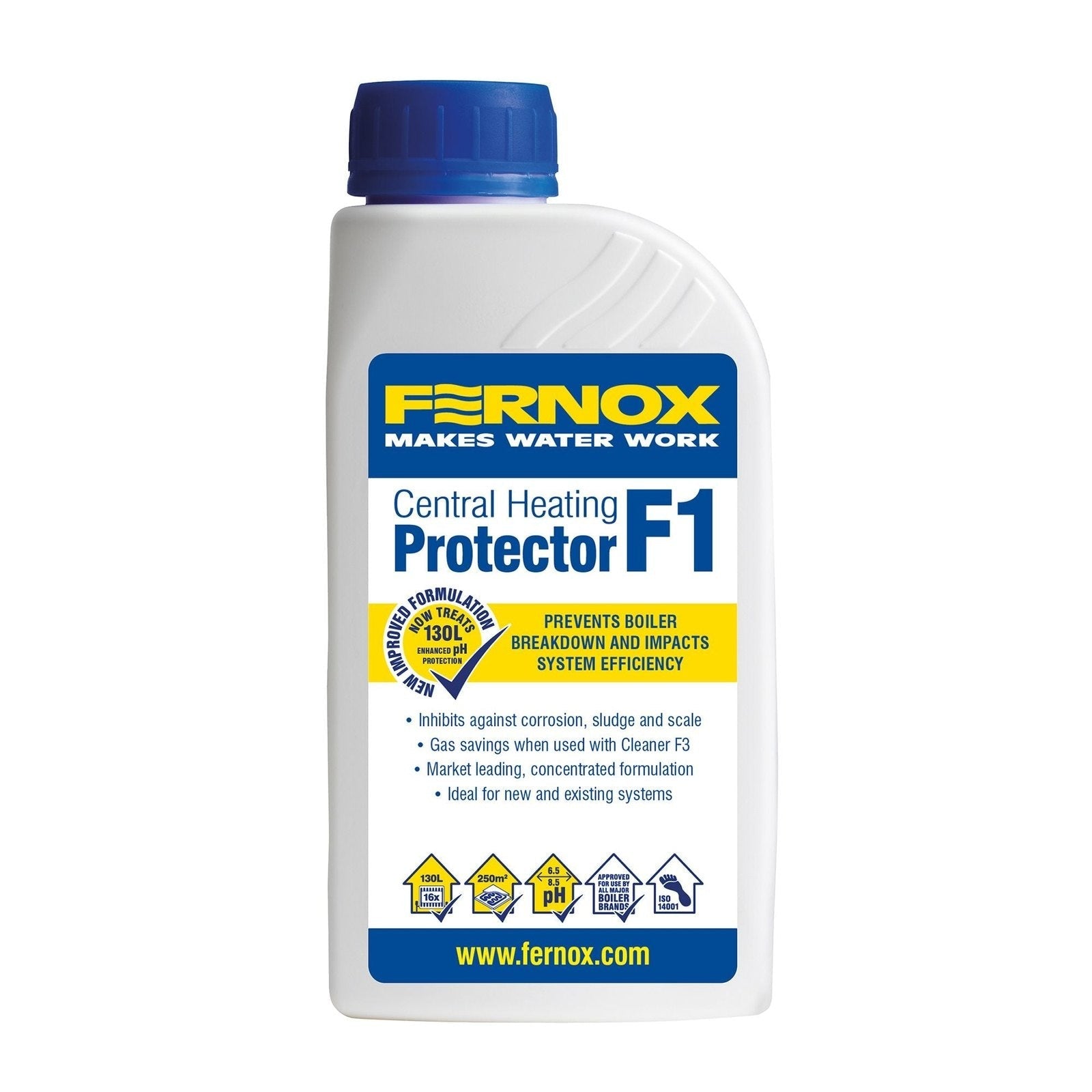

Inhibitor Dosing After Topping Up

Central heating inhibitor concentration is diluted whenever mains water is added to the system. After any significant top-up (more than a few litres), inhibitor should be re-dosed to maintain protection against corrosion and magnetite sludge formation.

• Most inhibitors recommend one 500ml bottle per 100 litres of system volume (typical domestic system: 70–120 litres)
• Dose via a radiator bleed valve — remove the plug from the lockshield end, pour inhibitor into the radiator body with the system depressurised, replace plug and top up pressure
• Alternatively, dose through a dedicated dosing point on the magnetic filter if fitted
• Always use an inhibitor compatible with all system metals — including aluminium if aluminium radiators are present

WRAS and Building Regulations Compliance

The Water Supply (Water Fittings) Regulations 1999 require that any connection between a heating circuit and the mains cold water supply incorporates backflow prevention appropriate to Fluid Category 3 (non-toxic heating water). A filling loop must incorporate a double check valve (DCv) rated for Fluid Category 3. Single-check valves alone are not sufficient for a permanent filling loop connection. WRAS-approved filling loop assemblies include double check valves as standard — verify the product carries the WRAS mark before installation.

For new installations, the connection must be to the mains cold water supply only — connecting to a secondary hot water circuit or stored water supply is not compliant. Notify the water undertaker (via Section 30 notification or through a WIAPS-approved contractor) if the filling loop forms a notifiable installation under Schedule 2 of the Regulations.
