Boiler Servicing and Annual Central Heating Maintenance — Inhibitor, Descaling, and Gas Safety for UK Gas Engineers

Annual boiler servicing is a legal requirement for landlords and a commercial necessity for gas engineers and heating engineers across the UK. A thorough service extends boiler life, maintains manufacturer warranties, reduces breakdown call-outs, and protects system efficiency. This guide covers the full scope of an annual service: what to inspect, what to replace, and which chemicals and consumables to carry on your van.

Why Annual Boiler Servicing Matters

The Gas Safety (Installation and Use) Regulations 1998 require landlords to arrange annual gas safety checks by a Gas Safe registered engineer. Boiler manufacturers — including Ideal, Worcester Bosch, Vaillant, and Baxi — typically condition warranty cover on annual servicing by a qualified engineer. Beyond compliance, regular servicing reduces boiler breakdowns, which cost significantly more to repair than a preventative service.

A missed service increases sludge build-up, reduces heat exchanger efficiency, accelerates corrosion, and voids warranty. For gas engineers, offering an annual service plan creates a recurring revenue stream and deepens customer relationships.

What a Full Boiler Service Covers

Visual Inspection

• Check flue terminal for obstruction, corrosion, or damage
• Inspect flue pipework joints for signs of leakage or condensate pooling
• Check pipework for corrosion, leaks, or unsupported runs
• Verify adequate ventilation (open-flued appliances)
• Check condensate pipe routing and frost protection

Operational Checks

• Confirm correct ignition, burner flame appearance (blue, no lifting or yellowing)
• Check heat input / gas rate at meter
• Test thermostat, programmer, and TRV operation
• Verify pressure relief valve and expansion vessel pre-charge
• Confirm system pressure (typically 1.0–1.5 bar when cold)
• Check pump operation and flow rate
• Test CO alarm and smoke alarm function

Internal Inspection

• Remove and inspect burner — clean carbon deposits
• Inspect heat exchanger for scale, soot, or damage
• Check electrode gap and condition — replace if worn
• Inspect condensate trap — clean or replace
• Test and clean injectors
• Check and clean condensate pump (where fitted)
• Inspect seals, gaskets, and combustion chamber door

System Water Quality: Inhibitor and Descaling

Water quality is the biggest determinant of boiler longevity. Magnetite sludge (Fe₃O₄), scale from hard water, and oxygen corrosion progressively damage the heat exchanger, pump, and valves. Annual chemical treatment alongside a magnetic filter is best practice on all sealed systems.

Inhibitor Top-Up

Central heating inhibitor prevents corrosion and scale formation. Inhibitor concentration degrades over time and should be checked (and topped up if necessary) at every service. Use a test strip or refractometer to check concentration.

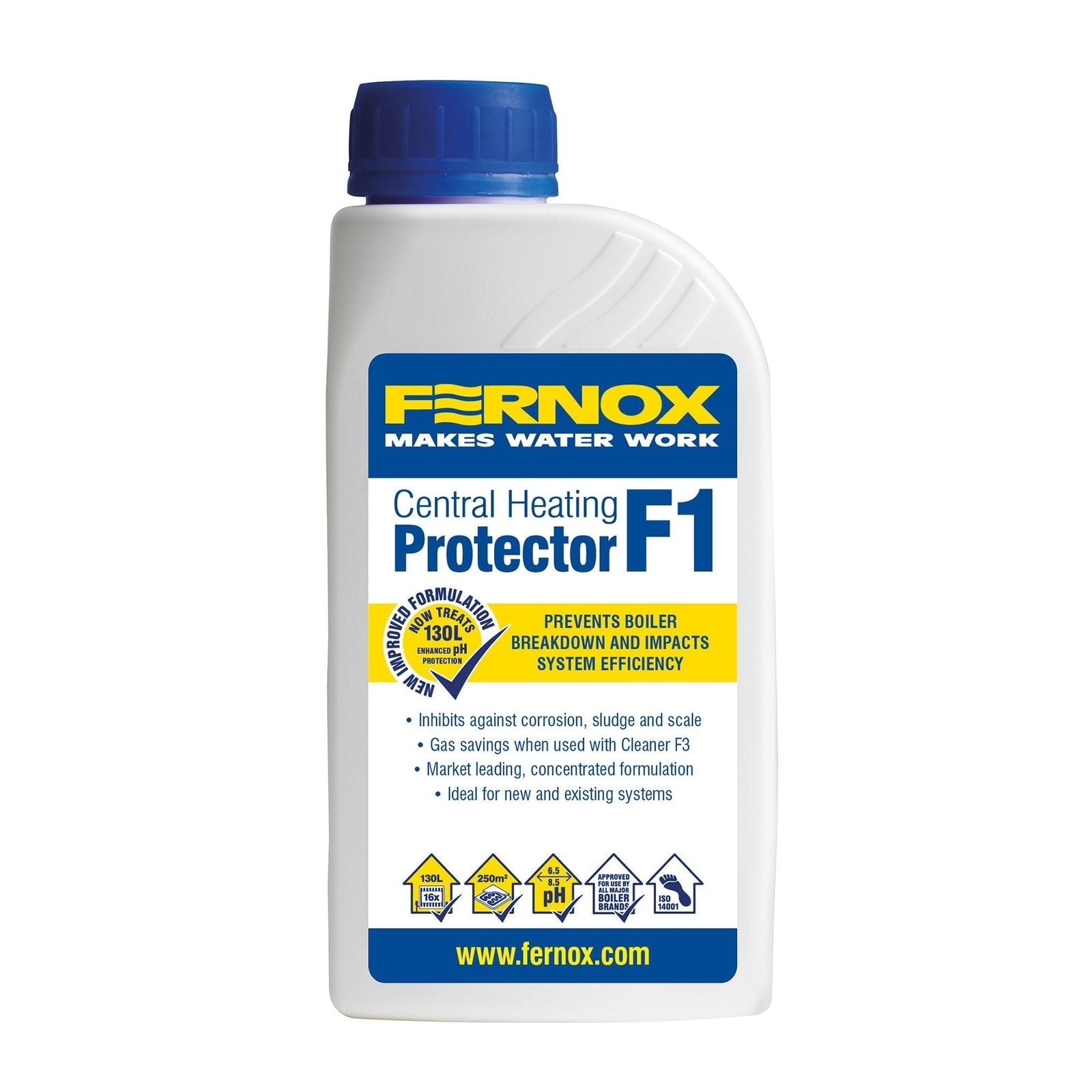

Recommended: Fernox F1 Central Heating Protector — suitable for all metals including aluminium, compatible with all system types. One 500ml bottle treats a typical 6–8 radiator system. Add via the radiator bleed point, auto air vent, or direct injection port. Check concentration meets the 20% target with test strips.

Powerflush and System Cleanse

Where sludge is detected (reduced heat output from radiators, cold spots at bottom of radiators, discoloured system water), a powerflush or chemical cleanse is required before inhibitor top-up.

Use Fernox F3 Heavy Duty Cleaner or a suitable alternative for heavily fouled systems. Circulate for 1–2 hours, drain, flush with clean water, then dose with inhibitor. For lightly fouled systems, Fernox F2 Cleaner (leave-in type) can be added to the system water.

Scale Reduction

In hard water areas (above 200 ppm TDS), limescale accumulates on the heat exchanger reducing efficiency and increasing the risk of failure. A descaler treatment annually removes scale build-up.

Faren F200 Anti-Scale Descaler is specifically formulated for central heating and toilet cisterns. Effective for scale prevention in hard water areas. Apply to the system and circulate before draining.

Magnetic System Filter: Installation and Maintenance

A magnetic filter (magnetic separator) is now considered best practice on all sealed systems. The filter captures magnetite particles before they reach the boiler heat exchanger. Major manufacturers including Worcester Bosch and Vaillant now require a magnetic filter for warranty compliance on new boiler installations.

At each service: remove the filter body, drain, clean the magnetic core with a damp cloth, flush the housing, and refit. Inspect the collected sludge as a diagnostic: heavy black sludge indicates ongoing corrosion and a more aggressive treatment programme is needed.

Recommended: Adey MagnaClean Professional 2 (22mm or 28mm connections) or Fernox TF1 Compact Magnetic Filter. Both are widely accepted by boiler manufacturers. Fit as close to the boiler return as possible.

Cross-reference: Magnetic System Filters — MagnaClean, Fernox TF1, and Central Heating Filtration

Condensate Pipe and Condensate Pump

Modern condensing boilers produce acidic condensate (pH 3–4) that must drain to a suitable external or internal drain. Inspect the condensate pipe routing at each service:

• External runs must be insulated and ideally 32mm bore to prevent freezing
• Internal drop to soil stack or sink trap is preferable to external runs
• Condensate pump (where fitted) — test operation, clean the float switch and pump chamber

Cross-reference: Condensate Pipes and Pumps — Freezing Prevention and Fault-Finding

System Pressure: Expansion Vessel and PRV

Sealed systems require correct operating pressure (typically 1.0–1.5 bar cold). Check the expansion vessel pre-charge pressure with a Schrader gauge (typical pre-charge 1.0 bar for a domestic system). A vessel that cannot hold charge requires replacement.

The pressure relief valve (PRV — usually set at 3 bar) should be visually inspected for evidence of weeping or past operation. A PRV that has lifted means either over-pressure events have occurred (check expansion vessel) or the PRV itself has failed and needs replacement.

Cross-reference: Expansion Vessels and System Pressure

Pilot Light and Ignition Components

Modern combi boilers use electronic ignition rather than a standing pilot light. At service, inspect the ignition electrode for carbon fouling or wear. A worn electrode increases ignition failures (lockouts). Replace as needed — electrode sets are boiler-specific; carry common spares for the most popular boiler brands you service.

Gas Tightness Test

Every service must include a gas tightness test of the appliance connections and internal pipework:

1. Use a calibrated electronic gas leak detector or gauge method (U6 or equivalent)
2. Pressurise to working pressure, isolate, and monitor for pressure drop over 2 minutes
3. Any pressure drop above 0.5 mbar indicates a leak — identify and repair before proceeding
4. Alternatively, use soap solution on joints under pressure

PTFE tape (white, plumber's grade) is used on threaded gas connections where appropriate — though sealant compounds (Boss White, Loctite 577) are commonly preferred for gas pipework. Always comply with Gas Industry Unsafe Situations Procedure (GIUSP) when a gas leak or unsafe situation is identified.

Carbon Monoxide Safety

Carbon monoxide (CO) is the primary safety risk from poorly maintained boilers. Every home with a gas appliance should have a working CO alarm sited per BS EN 50291. At service, test the existing CO alarm if present. Replace batteries if battery-powered. If no CO alarm is present, recommend installation — it is now mandatory in all new tenancies in England and Scotland.

Cross-reference: Smoke Alarms and Heat Detectors — BS 5839-6 and Interlinked Systems

What to Carry on Your Van: Essential Service Consumables

A well-stocked service van minimises return visits and increases first-time fix rates. The following consumables should be standard stock for any gas engineer carrying out boiler services:

• Fernox F1 Inhibitor 500ml (one per service)
• Fernox F2 or F3 Cleaner (for scaled/fouled systems)
• Fernox or Adey system water test strips
• PTFE tape (white, 12m x 12mm)
• CO alarm (for customer supply where absent)
• Embrass 15mm isolating valve / ball valve (for repressurisation connections)
• Condensate pump (Aspen Silent+ or CONLIFT equivalent) for breakdowns
• Replacement PRVs (common ratings: 3 bar)
• Schrader valve core tool + gauge for expansion vessel pre-charge check

Gas Safety Certificate (CP12)

On completion of a landlord gas safety check, issue a Gas Safety Record (LGSR, colloquially CP12) to the landlord within 28 days. The record must be issued by a Gas Safe registered engineer and include: appliances checked, faults found, actions taken, engineer's Gas Safe registration number, and property/landlord details. Landlords must provide a copy to tenants within 28 days and to new tenants before occupation.
