The circulating pump is the heart of a wet central heating system. Without it, hot water from the boiler stays put — radiators stay cold, the hot water cylinder never charges, and the boiler short-cycles on its own heat. When a pump fails, the job is usually straightforward: isolate, swap, and recommission. But picking the wrong replacement — wrong head, wrong centres, wrong connection size — means a second visit. This guide covers sizing, selection, and installation so you get it right first time.

What a Circulating Pump Does

The pump forces water around the heating circuit at sufficient pressure to overcome the resistance of the pipework, radiators, and fittings. It does not add heat — it moves water. On a sealed system the pump typically sits on the flow pipe between the boiler and the first junction, or on the return, depending on the original design. On an open-vented system it traditionally sits on the return, though modern practice favours the flow side for better air handling.

Key performance parameters are:

• Head (metres) — the pressure the pump can develop, measured in metres of water column. A typical domestic system needs 4–6m head.
• Flow rate (m³/h or l/min) — the volume the pump moves per unit time. Sized to the system heat output and pipe bore.

These two parameters define the pump curve — a graph showing the relationship between head and flow. As flow increases, available head decreases. You need a pump whose curve sits above your system curve at the operating point.

Sizing for Domestic Systems

For most domestic systems (up to 15kW output, 15mm or 22mm pipework), a 15/50 or 15/60 pump is correct. The notation means: 15mm connection, maximum head 50 or 60 metres (this is the old UPS notation — modern pumps are sized differently but these numbers persist as model references). For a larger domestic property or a system with long pipe runs and many radiators, step up to a 25/60 or 25/80.

The centre-to-centre dimension — 130mm is standard domestic, 180mm for larger pumps — must match the existing pump unless you are replumbing the connections. Most domestic replacements are 130mm centres. Check before ordering.

Connection size is typically 1½" BSP (male) on both ends, with a 15mm, 22mm or 28mm tailpiece adaptor to suit the pipework. Confirm the adaptor size you need — the pump body is usually 1½" BSP regardless of pipe size, and the compression tails are separate.

A-Rated Efficiency: Why It Matters

Since 2013, the EU ErP Directive (now retained in UK law) banned the sale of non-A-rated circulating pumps for heating systems. All new pumps must carry an Energy Efficiency Index (EEI) of ≤0.23. This means variable-speed ECM (electronically commutated motor) technology is now standard. An old 3-speed UPS-type pump running flat out consumed 60–80W. A modern A-rated pump running on auto control uses 5–25W depending on system demand.

For replacements, this matters practically: if you are replacing an old 3-speed pump that was wired with a single switched live from the boiler, an auto-speed pump will work the same way — wire live, neutral, and earth, and the pump handles speed control internally based on system pressure differential.

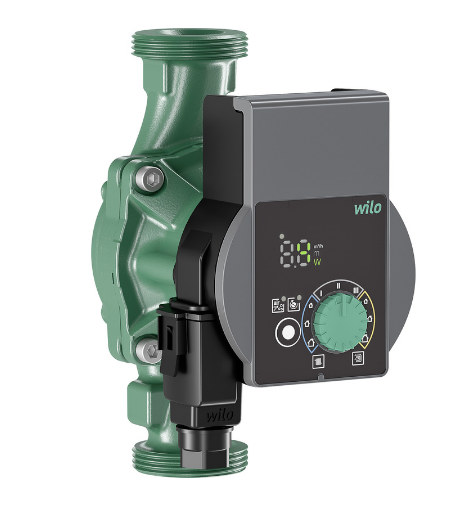

Grundfos vs Wilo vs KeyPlumb: What We Stock

Grundfos is the dominant brand in UK domestic heating. The UPS3 and Alpha2L ranges are the go-to replacements for the older UPS and Alpha pumps that were fitted in millions of UK homes. The Grundfos UPS3 15-50/65 covers the vast majority of domestic replacements — 130mm centres, A-rated, auto speed control. The Grundfos Alpha2L 15-50 is the slim-body version, useful where space is tight around the pump head.

For systems with higher head requirements — longer pipe runs, larger properties — the Grundfos UPM3 Auto 15-70 provides extra head at the same 130mm centres. It handles up to 70mm of head and suits larger domestic or light commercial applications.

Stuart Turner is another established UK brand with a loyal following among plumbers and heating engineers. The Stuart Turner Pulse Trade 25/60-130 is a solid mid-range option with a 2-year warranty and straightforward wiring.

For price-sensitive jobs where the client wants a functional replacement without a premium brand, the KeyPlumb 3-Speed 25/6-130 delivers reliable performance at a lower price point. It is A-rated and fits straight onto standard 130mm centres.

Signs a Pump Needs Replacing

• No heat, boiler firing normally — pump motor seized or impeller jammed. Common after a summer shutdown when limescale locks the impeller. Try the manual release screw on the pump body first.
• Loud rattling or grinding noise — bearing failure. Replace before it seizes completely.
• Hot pump body, cold radiators — pump running but not circulating. Impeller damaged or pump air-locked. Bleed the pump; if no improvement, replace.
• Leaking from the pump body — seal failure. Replace; do not attempt seal repairs on site.
• System slow to heat — pump running at too low a speed, or pump undersized for the system. Check speed setting or upgrade to higher head model.

Replacement Procedure

1. Isolate the pump using the slotted isolator valves on each side. Quarter-turn with a flat-blade screwdriver.
2. Place a towel and shallow tray under the pump body to catch residual water.
3. Undo the pump union nuts — these are usually 1½" BSP. The pump body will come away leaving the tail unions in the pipework.
4. Note the flow direction arrow on the old pump — the new pump must be installed the same way.
5. Fit new fibre washers to the union faces. Never reuse old washers.
6. Screw in the new pump, hand tight then ¾ turn with a pump spanner.
7. Open isolator valves slowly. Check for leaks at the unions before energising.
8. Wire: live (switched from boiler), neutral, earth. On auto-speed pumps, no speed selector — just power and the pump controls itself.
9. Vent the pump using the bleed screw on the pump body. Run for 10 minutes and re-vent.
10. Balance the system if radiators are uneven after the pump swap.

In Stock — Same-Day Collection Acton

We keep the most common domestic pump replacements in stock at 24 Western Avenue, Acton W3 7TZ. Call 020 8702 8080 to confirm availability before you travel.
