Dimmable GU10 LED vs Non-Dimmable: What Every Electrician Needs to Know

Specifying the wrong GU10 lamp on a dimming circuit is one of those mistakes that comes back to bite you fast — flickering, buzzing, premature driver failure, or a customer complaint the week after handover. Whether you're wiring a new kitchen, retrofitting downlights, or just stocking your van, knowing the difference between dimmable GU10 LED and non-dimmable matters. Here's the straight version.

Integral LED Classic GU10 Dimmable — the trade standard for retrofit and new-build downlight installs.

Dimmable GU10 LED vs Non-Dimmable: The Core Difference

The difference comes down to the LED driver inside the lamp. A non-dimmable GU10 has a fixed-output driver — it runs at a set current, and any attempt to reduce that current (via a dimmer switch) will either cause the lamp to flicker, flash at minimum brightness, or fail early. Some non-dimmable lamps will appear to dim slightly before cutting out entirely. None of that is acceptable on a finished job.

A dimmable GU10 LED has a driver built to accept a varying input. It responds smoothly to the dimmer's output, reducing light level without instability. The key is matching the lamp to the dimmer type — more on that below.

The practical rule: if the circuit has a dimmer switch, fit dimmable lamps. Full stop. If there's no dimmer and the customer hasn't asked for one, non-dimmable is fine and usually cheaper.

Dimmer Compatibility: The Part That Trips People Up

Not all dimmable LED lamps work with all dimmer switches. Most domestic dimmers in the UK are trailing-edge (leading-edge dimmers were designed for incandescent loads and often cause problems with LED drivers). The main compatibility rules:

• Leading-edge (phase-cut) dimmers — designed for resistive/inductive loads (incandescent, halogen). Many LED lamps claim compatibility, but results vary. Buzzing and flickering are common. Avoid specifying on new installs.
• Trailing-edge (electronic) dimmers — the correct choice for LED. Smooth dimming curve, no buzzing, wider compatibility with modern LED drivers. Brands like Varilight, Lutron, and MK all produce trailing-edge units.
• Minimum load — LED lamps draw very little wattage. Many dimmers have a minimum load (e.g. 40W). Put three 5.7W GU10s on a dimmer rated 40W minimum and you may get ghost lighting or instability at low levels. Check the dimmer spec.
• Maximum lamp count — dimmers have a maximum load too. Divide the dimmer's rated wattage by the lamp wattage to get the maximum count.

Integral LED publish compatibility lists for their dimmable GU10 range against most major UK dimmer brands. It's worth checking before you specify or carry spares to site.

Colour Temperature: Getting It Right for the Room

GU10 LEDs come in three main colour temperatures:

• 2700K (Warm White) — closest to old halogen. Domestic living rooms, bedrooms, hospitality. The Integral LED GU10 620Lm 5.7W 2700K Dimmable is the go-to for residential work where the customer wants that warm, familiar feel.
• 3000K (Warm White / Natural White) — slightly crisper than 2700K, popular in kitchens and bathrooms. The Integral LED GU10 620Lm 5.7W 3000K Dimmable is the standard kitchen spec lamp.
• 4000K (Cool White) — clean, clinical. Offices, commercial kitchens, retail. The Integral LED Classic Dimmable GU10 4000K 570Lm 7W covers commercial installs.

As a rule of thumb: 2700K for living spaces, 3000K for kitchens and bathrooms, 4000K for commercial and task lighting. Always confirm with the customer before ordering in bulk.

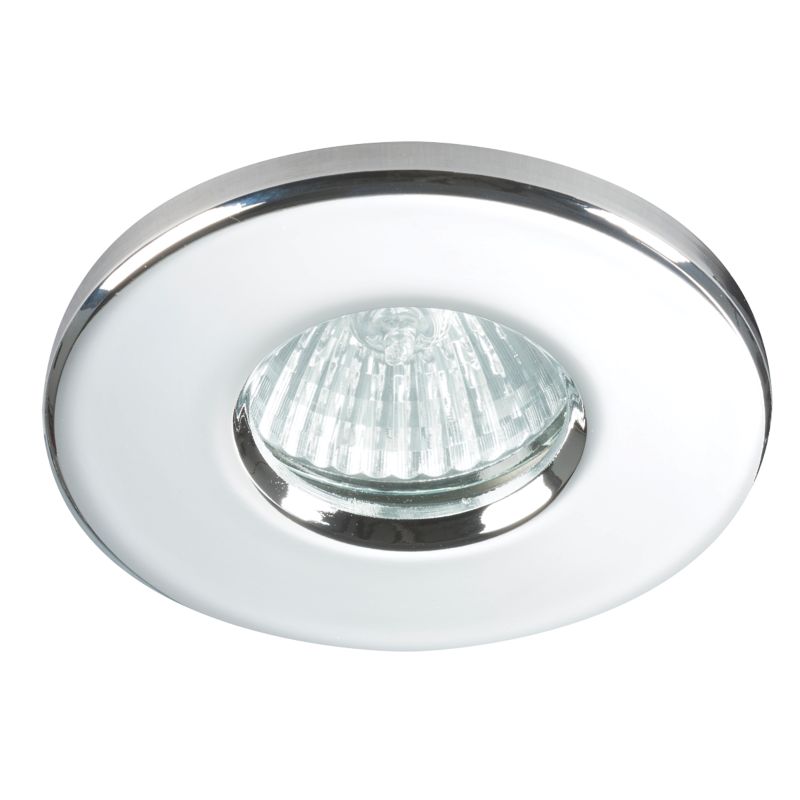

Recessed GU10 downlight fitting — fire-rated fittings are required where insulation is present above the ceiling.

Fire-Rated vs Standard Downlight Fittings

The lamp is only half the equation — the fitting matters too. Building Regulations Part B requires that fire-rated downlight fittings are used wherever the ceiling forms part of a fire-resistant structure (e.g. between floors in a house, or below a bedroom). A standard open-back fitting creates a hole in the ceiling void that defeats the fire compartmentation.

Fire-rated fittings are rated in minutes (typically 30, 60, or 90 minutes) and seal around the GU10 lamp to maintain the ceiling's fire resistance. If you're in any doubt — use fire-rated. The cost difference is negligible versus the liability exposure.

Wattage and Lumen Output: What to Specify

The old halogen standard was 50W GU10, giving around 400–450 lumens. Modern LED equivalents deliver the same or better output at a fraction of the power:

• 5.5–5.7W LED ≈ 470–620 lumens — standard replacement for 50W halogen
• 7W LED ≈ 520–570 lumens — higher-efficiency driver, useful where a slightly brighter output is needed
• Beam angle — most GU10s come in 36° (standard flood) or 24° (spot). 36° is the default for general downlighting; 24° for accent or display lighting

For kitchens, the rule of thumb is one GU10 per 0.5m² of ceiling area, or one per 0.5–1m depending on ceiling height. For 2.4m standard ceilings, 600 lumen at 36° is fine. Higher ceilings need higher lumen output or tighter beam angles.

Buying in Bulk: 10-Pack vs Single

For new-build and retrofit projects, buying by the 10-pack makes sense. The Integral LED GU10 10-Pack 600Lm 5.7W 2700K Dimmable is the trade buy for residential jobs — same lamp as the singles, better unit price, and a consistent batch colour temperature across the installation.

For commercial one-offs or colour temperature testing before ordering in volume, the singles work fine. We stock the full Integral LED GU10 range — dimmable and non-dimmable, warm white through cool white — at the counter in Acton.
