How to Clean a Heating System and Prevent Boiler & Zone Valve Damage

A heating system doesn’t fail suddenly. It degrades. Sludge, corrosion, and debris slowly attack the boiler heat exchanger, circulating pumps, and zone valves until one day something seizes, leaks, or overheats.
Cleaning the system is not optional maintenance — it’s risk control.

Why Heating Systems Get Dirty (Root Cause)

Inside every wet heating system:

• Steel radiators + oxygen = magnetite (black sludge)

• Mixed metals = galvanic corrosion

• Old installs = flux residue & scale

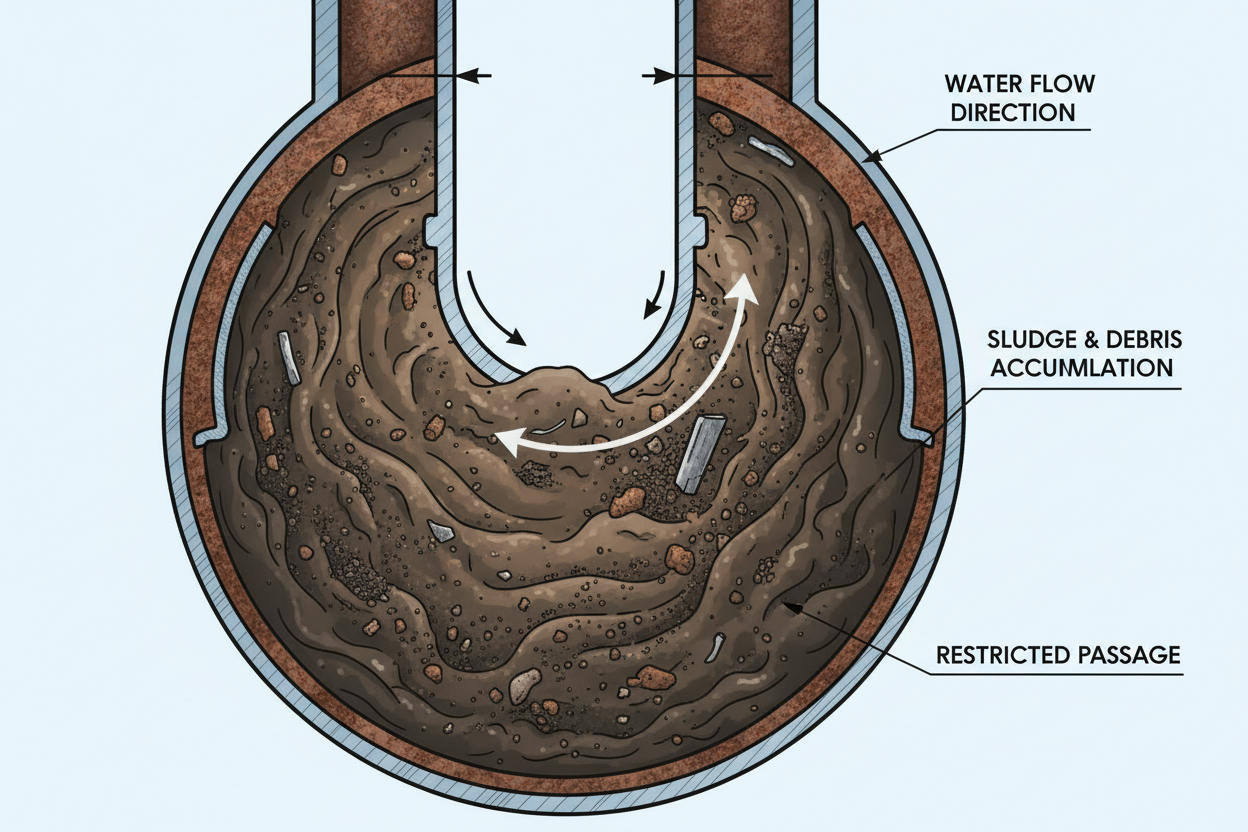

• Poor circulation = debris settling in valves

Where the damage shows first:

• Boiler heat exchanger (overheating & noise)

• Zone valves (seizing, not opening/closing)

• Pumps (bearing wear, noise, failure)

• Cold spots in radiators

If flow is restricted, temperature rises locally → mechanical stress + early failure.

How to Clean a Heating System (Three Levels)

1. Manual Drain & Refill (Light Contamination)

Use when: system is relatively new, no major sludge signs.

Steps:

1. Shut down boiler & isolate power

2. Drain system from lowest drain point

3. Flush each radiator individually

4. Refill with fresh water

5. Bleed air from all radiators

Limitation: removes loose debris only. Sludge stuck in pipework stays.

2. Chemical Circulation Clean (Most Homes)

Use when: radiators heat unevenly, valves feel sticky, boiler noisy.

Process:

1. Add system cleaner chemical

2. Run heating 1–3 days (as instructed)

3. Cleaner dissolves sludge & corrosion products

4. Drain system completely

5. Flush until water runs clear

6. Refill + add inhibitor

This method protects zone valves because it restores flow without shock.

3. Power Flushing (Heavy Contamination)

Use when:

• Boiler repeatedly locks out

• Radiators cold at bottom

• Zone valves stuck or buzzing

• Black water drains out

Power flushing:

• Uses high-flow, low-pressure pumping

• Flushes each radiator independently

• Breaks up hardened magnetite

⚠️ Risk note:
On very old systems, power flushing can expose weak joints. Inspection first is mandatory.

How to Protect Zone Valves Specifically

Zone valves fail due to debris buildup on the spindle.

Protection actions:

• Clean system before replacing valves

• Install a magnetic filter on return pipe

• Add corrosion inhibitor after every drain

• Cycle valves fully at least once per week (prevents sticking)

If you replace a valve without cleaning the system, expect repeat failure.

How to Test If the System Is Dirty

Visual & Physical Tests

Check for:

• Radiators hot top / cold bottom

• Black or brown water when bleeding

• Boiler kettling or gurgling

• Slow heating response

• Zone valves warm but not passing heat

Simple Water Test

• Drain a small sample into a clear container

• Black = magnetite

• Brown = corrosion

• Cloudy = suspended debris

When Does the System Need Chemicals?

Add chemicals when any of the following are true:

• System has been drained/refilled

• New boiler, pump, or valve installed

• Water sample is discolored

• Flow issues exist

• No inhibitor added in last 2–3 years

Chemicals That Matter

• Cleaner → removes sludge (temporary use)

• Inhibitor → prevents corrosion (permanent)

• Anti-scale → hard water areas

• Biocide → underfloor heating systems

Skipping inhibitor = accepting future failure.

Ongoing Prevention Strategy (Low Cost, High ROI)

1. Install magnetic filter

2. Annual service with water inspection

3. Inhibitor top-up every drain

4. Flush system every 5–7 years (or sooner if symptoms appear)

5. Exercise zone valves regularly

Bottom Line

• Dirty water kills boilers and valves

• Cleaning restores flow and temperature balance

• Chemicals are not optional — they’re system insurance

• Ignoring sludge always costs more later

If you control the water quality, you control the lifespan of the heating system.
