Kitchen Sink Mixer Taps — Monobloc, Lever, and Pull-Out Spray Selection and Installation for UK Plumbers

Kitchen mixer tap replacement is one of the most common plumbing call-outs in domestic and light commercial work. Whether you're upgrading a worn monobloc, fitting a new kitchen, or troubleshooting a leaking cartridge, understanding tap types, fitting standards, and compatible accessories saves time on site. This guide covers mixer tap selection, under-sink connections, waste fittings, and cartridge servicing for UK plumbers.

Mixer Tap Types for Kitchen Sinks

Most UK kitchen sinks accept a monobloc mixer — a single-body tap that mixes hot and cold through one spout. The key variants are:

• Lever (single-handle) monobloc — one lever controls both flow and temperature. Fast to use, popular in trade kitchens and rental properties. Cartridge-based: ceramic disc cartridge lasts years with no dripping.
• Pillar taps (pair) — separate hot and cold with a 3/8" BSP tail each, fitting a 2-hole sink deck. Older style, still found in period properties. Requires half-inch flexi connectors per tap.
• Pull-out spray mixer — integrated pull-down spray head on a flexible hose. Popular in modern fitted kitchens. Higher-flow cartridge; verify working pressure (typically 0.5–3 bar).
• Bridge mixer — traditional style with two separate valve bodies joined by a bridge over the spout. Fits 2-hole Belfast sink decks (180mm centres).

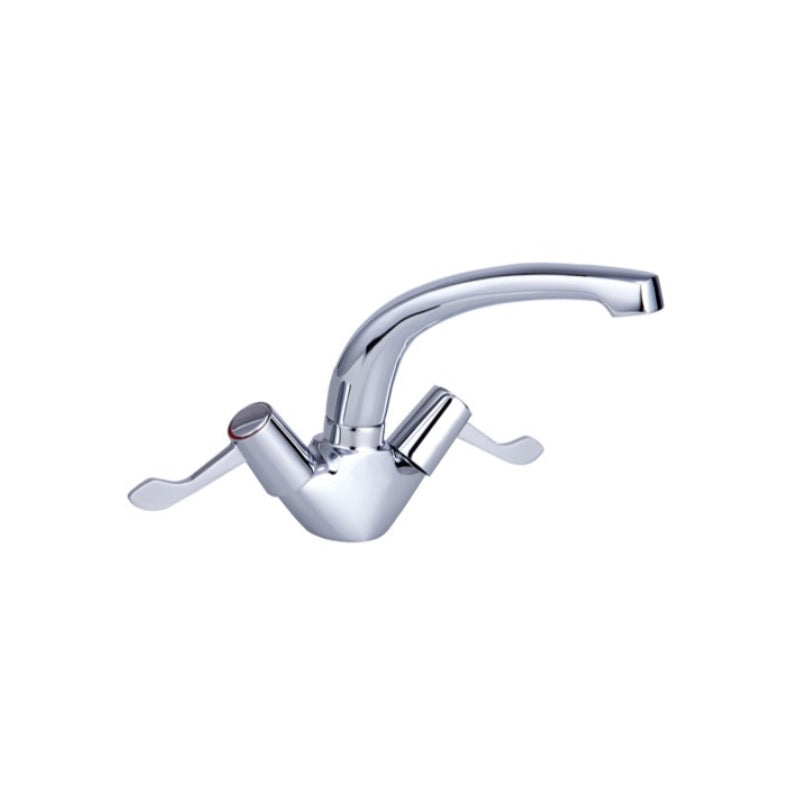

For trade and contract work, a contract lever monobloc is the default specification — low cost, reliable ceramic cartridge, 1/2" BSP tails, fits standard 35mm deck hole. The KeyPlumb Contract Lever Kitchen Sink Mixer is a proven choice for volume installs.

Sink Deck Hole Sizes and Fitting Standards

Most modern UK kitchen sinks have a single 35mm deck hole for a monobloc tap. The tap body slots through, secured by a back nut and (on stainless sinks) a plastic or rubber deck ring to prevent galvanic corrosion and seal water ingress.

Key fitting checks before ordering:

• Deck thickness — standard tap backnut reaches decks up to ~30mm. Deep Belfast ceramic sinks need a long-tail tap or extension backnut.
• Deck hole diameter — 35mm is standard; older sinks may be 32mm or 22mm (pillar tap holes). Measure before ordering.
• Tail length — most monoblocs have 300mm tails, which reach under a standard 150mm-deep sink deck. Deep-set Belfast sinks need 450mm tails.
• 2-hole sinks — Belfast and butler sinks typically have two 35mm holes at 180mm centres. Use a bridge mixer or pillar taps; cap the spare hole with a 35mm blanking plug if fitting a monobloc on one hole.

Under-Sink Water Connections

Flexible tap connectors are the standard way to connect tap tails to the supply pipework under the sink. They compensate for slight misalignment and allow the tap to be swapped without cutting pipework.

Standard spec for a monobloc kitchen mixer:

• 2× flexible tap connectors, 300mm or 450mm, 15mm × 1/2" BSP
• Fibre washers included (replace on every install — never reuse an old washer)
• Hand-tighten plus one-quarter turn with a basin wrench — do not overtighten, which splits the connector or strips the tap tail

Always fit an isolation valve (15mm inline quarter-turn or service valve) on both hot and cold supply legs under the sink. This allows the tap to be serviced without shutting off the zone. Embrass Peerless 15mm isolating valves are a reliable choice for under-sink work.

Where supply pipework terminates with 22mm copper (common in older properties), use a 22mm × 15mm reducer and then a 15mm valve and connector, rather than relying on the connector alone to take the diameter step.

Waste Fittings and Kitchen Sink Drainage

A kitchen sink replacement job typically includes the waste as well as the tap. Standard UK kitchen sink waste is 40mm (nominal 1.5" BSP at the sink outlet). The waste kit connects the sink outlet to the 40mm pushfit or solvent weld waste pipe below.

Key components:

• Sink waste outlet — 40mm plug and chain or basket strainer. Stainless kitchens: use a stainless strainer, not chrome-plated brass (corrosion risk on wet/dry cycles).
• P-trap or bottle trap — P-trap (tubular trap) suits tight under-sink spaces; bottle trap fits where there's space but looks cleaner if the under-sink area is visible (e.g. open vanity units). Both must maintain a minimum 50mm water seal to comply with Part H.
• 40mm waste pipe — Aquaflow 40mm pushfit waste pipe and fittings are widely used; knuckle bends and branches for routing around sink cabinet frames.
• Overflow connection — if the sink has an integral overflow, connect with an overflow hose (typically 22mm flexi) to the back of the waste outlet before fitting the trap.

If the property has a dishwasher, spec a waste kit with an integrated dishwasher spigot outlet (or add an inline dishwasher connection branch on the 40mm waste run).

Cartridge Servicing and Drip Repairs

Modern monobloc taps use a ceramic disc cartridge rather than a traditional rubber washer. When a ceramic cartridge fails it typically either drips constantly or fails to shut off — it does not respond to tightening the packing nut like a washer tap. The repair is cartridge replacement, not washer replacement.

Cartridge removal procedure:

1. Isolate hot and cold under the sink (or shut off zone valves).
2. Open the tap fully to release residual pressure and drain the line.
3. Remove the lever handle — typically a grub screw under a cap on top of the lever, or a Phillips screw in the base of the handle.
4. Unscrew the chrome shroud/collar (may need a strap wrench to avoid marking).
5. Undo the cartridge retaining nut — 22mm or 24mm hex, or a plastic knurled ring that unscrews by hand.
6. Pull the cartridge straight up and out. Note the orientation (flat face position) before removing — the replacement must go in the same way.
7. Fit new cartridge, reassemble, test for full shut-off and smooth temperature control before buttoning up.

Most monobloc cartridges are a standard 40mm ceramic disc cartridge — widely available. Measure the height (40mm, 45mm, or 50mm are common lengths) and note whether the outlet ports are side or bottom. Take the old cartridge to the merchant if unsure — it's faster than ordering blind.

Common Faults and Fixes

Water Regulations and Part G Compliance

Kitchen taps connect to the wholesome (drinking) water supply, so all components in contact with the water must be WRAS-approved or comply with the Water Supply (Water Fittings) Regulations 1999. This includes:

• The tap itself — check the tap carries WRAS approval or is CE-marked for drinking water contact (look for the WRAS logo or manufacturer WRAS certificate)
• Flexible tap connectors — WRAS-approved connectors use approved braided hose and approved brass fittings
• Isolation valves — must be WRAS-approved for wholesome water use

Do not use a check valve on a kitchen cold supply unless the tap specifically requires it (some pull-out spray taps with a diverter do need a check valve to prevent backflow). Fitting an unnecessary check valve can raise cold-side pressure and cause stress on the cartridge.

For combi boiler systems, ensure the hot supply to the tap is from the heated domestic hot water outlet, not the heating circuit. Kitchen taps must not be connected to the primary (heating) circuit — Part G and Part L requirements.

Spec Summary for a Standard Kitchen Tap Swap

• 1× monobloc kitchen mixer (contract lever for trade/rental) — 35mm deck hole, 1/2" BSP tails
• 2× 15mm × 1/2" BSP flexible tap connectors, 300mm (with fibre washers)
• 2× 15mm inline isolation valves (quarter-turn)
• 1× 40mm sink waste kit (plug and chain or basket strainer)
• 1× P-trap or bottle trap, 40mm
• PTFE tape for BSP threaded connections
