LED Downlights Buying Guide: What to Look For in 2026

LED downlights are one of the most frequently specified products in domestic and light commercial electrical work — and one of the most frequently mis-specified. The buying decision involves more variables than it looks: fire rating, IP rating, cutout size, colour temperature, dimmability, and driver type all matter. This LED downlights buying guide covers what every electrician and homeowner needs to know before choosing a fitting in 2026, with products available in stock at APM Electricals in Acton, West London.

Fire Rating — Mandatory for Most UK Installations

In most UK domestic installations, downlights must be fire-rated. Building Regulations Part B requires that any penetration in a fire-separating ceiling (between floors, or between a habitable room and a loft) maintains the fire resistance of that element. A standard downlight punches a hole in a fire-resistant ceiling and renders it non-compliant. Fire-rated downlights include an intumescent seal that expands in a fire, closing the hole around the fitting.

The rule of thumb: if there's a room above the ceiling, or the ceiling separates the living space from the roof void, use a fire-rated fitting. In a single-storey extension or a flat with no room above, non-fire-rated is technically acceptable — but fire-rated is rarely more expensive and is always the safer default.

The Integral LED Evofire Fire Rated Downlight (70–100mm cutout, IP65) is a strong all-round choice — it covers a range of cutout sizes, is rated IP65 for bathroom zones, and includes an insulation guard so it can be covered by loft insulation without overheating.

IP Rating — Bathrooms, Kitchens, and Damp Areas

IP (Ingress Protection) rating tells you how resistant a fitting is to dust and moisture. For downlights, the water-resistance digit is what matters:

• IP20 — dry indoor areas only. Suitable for bedrooms, living rooms, hallways.
• IP44 — splash-protected. Acceptable in bathroom zones 2 and 3, above kitchen worktops.
• IP65 — jet-proof. Required in bathroom zone 1 (above the bath/shower to 2.25m height) and any direct wet area.

Most electricians use IP65 fire-rated downlights throughout, even in dry rooms — it simplifies specification and means the same fitting works across all zones on a job. The price difference between IP20 and IP65 in modern LED fittings is negligible.

Cutout Size — Measure Before You Order

Downlights are specified by their cutout diameter (the hole cut in the ceiling), not the overall bezel diameter. Standard cutout sizes in the UK are 70mm and 95–100mm, but many fittings now cover a range (e.g. 70–100mm adjustable). If you're replacing existing fittings, measure the existing hole before ordering — ordering 70mm fittings for 95mm holes means cutting more ceiling, and going the other way means plugging gaps.

Check the product spec carefully. The Integral Evofire range uses an adjustable spring clip system that covers 70–100mm cutout, which significantly reduces the SKU count needed for a mixed job.

GU10 Lamp vs Integrated LED Driver

Downlights come in two formats: those with a GU10 lamp socket (replaceable bulb), and those with an integrated LED driver (the LED array is built in and not user-replaceable).

GU10 Fittings

A GU10 fitting takes a standard GU10 lamp. The lamp can be replaced when it fails, and the colour temperature or beam angle can be changed by swapping the bulb. This is generally the preferred choice for residential installs — the customer can buy replacement bulbs from any electrical wholesaler if one fails 10 years later.

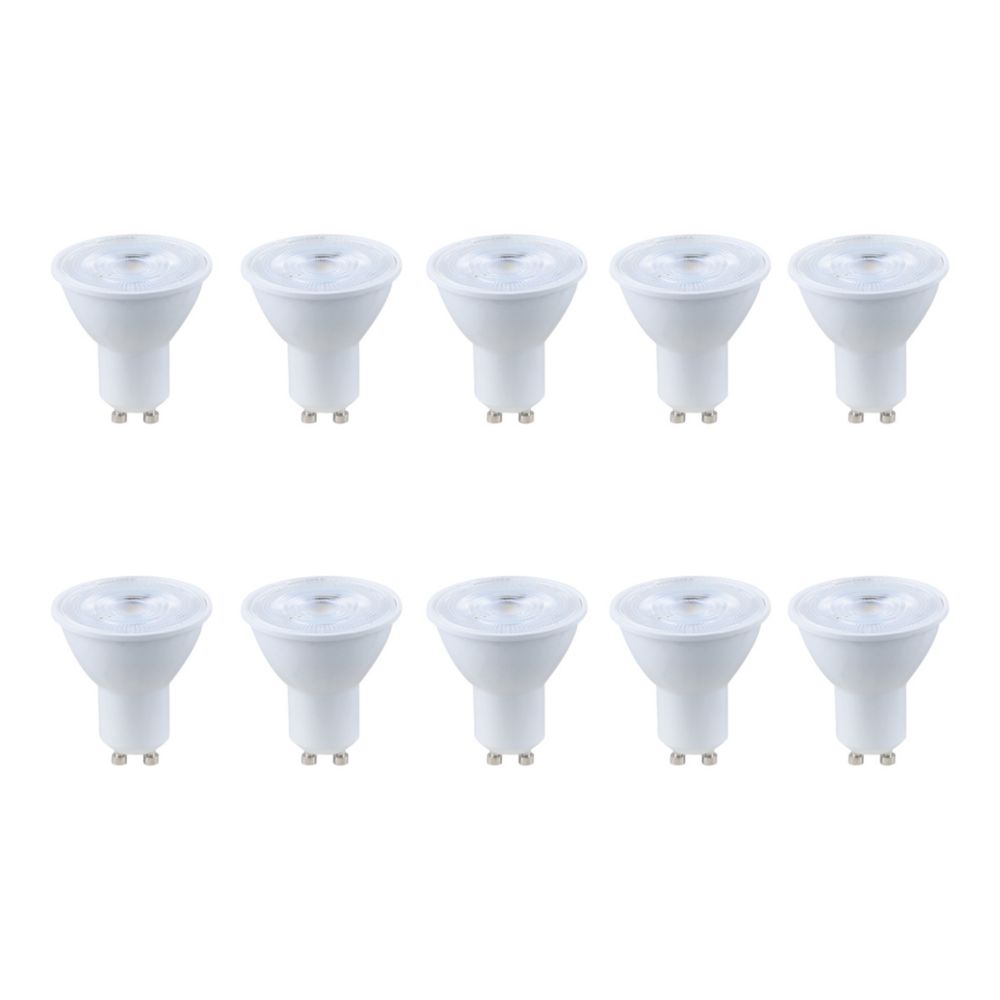

The Integral LED GU10 10-pack (600lm, 5.7W, 2700K, dimmable) is the most practical way to kit out a room — 10 bulbs covers most domestic downlight installs in one purchase. At 5.7W replacing a 50W halogen equivalent and 600 lumens, the output is strong without being harsh.

Integrated LED Fittings

Integrated fittings have the LED built in. They're often thinner and better-sealed (useful for IP65 applications), but when the LED array degrades or fails, the whole fitting needs replacing. Suitable for commercial applications with a maintenance contract, or where depth constraints make a GU10 fitting impractical.

Colour Temperature — Getting It Right for the Space

Colour temperature is measured in Kelvin (K) and affects the mood of the space significantly:

• 2700K — warm white. Closest to traditional incandescent. Best for bedrooms, living rooms, hospitality.
• 3000K — warm-neutral. A good all-rounder for kitchens and bathrooms where you want warmth but clarity.
• 4000K — cool white. Offices, commercial spaces, utility rooms.
• 6500K — daylight/cool daylight. Very clinical. Rarely used in domestic installs unless specifically requested.

For a typical domestic living space, 2700K is the standard recommendation. For a kitchen or bathroom where task lighting matters, 3000K is a practical choice. Mixing temperatures in the same room looks wrong — keep it consistent.

Dimmability — Check Both the Fitting and the Dimmer

LED dimmability is one of the most common sources of callbacks. An LED bulb labelled "dimmable" is not guaranteed to work with every dimmer switch. The dimmer and the LED must be compatible. The key points:

• Most modern leading-edge dimmers are not compatible with LED loads without modification or replacement.
• Trailing-edge dimmers (electronic dimmers) are generally better suited to LED loads.
• Check the lamp manufacturer's compatible dimmer list — Integral LED publish one on their website.
• The minimum load on a dimmer matters — a 250W dimmer with 8 × 5W LED bulbs (40W total) may not dim smoothly or may flicker at the low end.

The Integral LED GU10 620lm 5.7W 2700K Dimmable is a good domestic downlight lamp — it handles dimming cleanly with compatible trailing-edge dimmers and delivers a solid 620 lumens at 5.7W.

What We Stock at APM Electricals, Acton

We carry a full range of fire-rated downlights and GU10 LED bulbs from Integral LED and Knightsbridge — available for same-day trade counter collection at 24 Western Avenue, Acton, London W3 7TZ. Open 7 days. Call 020 8702 8080 to confirm stock on specific fittings or to discuss a project.
