Outdoor Electrical Sockets and Garden Wiring — IP66 Weatherproof Sockets, SWA Armoured Cable, and RCD Protection for UK Electricians

Outdoor electrical installations are among the most common domestic jobs for electricians — a garden socket for a lawnmower, a supply to a shed or summerhouse, or a dedicated circuit for an outbuilding. Done correctly, they are safe and reliable for decades. Done incorrectly, they create serious shock and fire risk. This guide covers the key requirements under BS 7671 (18th Edition), the cable types used for buried and surface runs, how to select weatherproof sockets for different locations, and the RCD protection rules that apply to every outdoor circuit.

Why Outdoor Circuits Need Special Consideration

The outdoors is a hostile environment for electrical installations. Moisture, UV radiation, mechanical damage, and freezing temperatures all degrade materials that would last a lifetime indoors. BS 7671:2018+A2:2022 (the 18th Edition Wiring Regulations) addresses this through the IPEX classification system, mandatory RCD protection for all outdoor circuits, and specific cable burial depth requirements.

Regulation 411.3.3 requires that every socket outlet and circuit for use outdoors must be protected by a 30mA RCD. There are no exceptions for domestic installations. This applies whether the socket is on an external wall, at the end of an underground supply to a garden building, or supplying a temporary connection via an extension lead. The RCD must trip within 40ms at 5x rated residual current, protecting against lethal contact with a live conductor.

From the 2022 amendment (Amendment 2), Type A or Type F RCDs are required for most new circuits, as Type AC devices may fail to detect the pulsating DC fault currents produced by modern equipment such as power tool chargers, EV supply equipment, and inverter-driven garden machinery. Where an installation includes a Type B EVSE (covered in our EV Charger Installation guide), the upstream RCD must be Type B or an embedded measurement system used.

IP Ratings Explained for Outdoor Socket Selection

The IP (Ingress Protection) rating on a socket enclosure tells you how resistant it is to solid particles (first digit) and water (second digit). For outdoor use in the UK, you need to understand the relevant thresholds:

• IP44 — Protected against solid objects >1mm and water splashing from any direction. Suitable for covered outdoor areas, porches, and outbuilding walls under a canopy. Not suitable for direct rain exposure or hose-down areas.
• IP55 — Dust protected and protected against water jets from any direction. Suitable for most exposed garden locations.
• IP65 — Fully dust-tight and protected against low-pressure water jets. Good general-purpose outdoor rating.
• IP66 — Fully dust-tight and protected against powerful water jets and heavy seas. The correct choice for exposed locations subject to direct rain, garden hose overspray, or pressure washing nearby. The standard for most UK outdoor installations in exposed positions.
• IP67/IP68 — Submersion rated. Required for underground junction boxes in waterlogged ground or pond installations.

When selecting a socket, match the IP rating to the actual exposure. An IP66-rated socket on an exposed garden wall will outlast an IP44 unit by many years and presents far lower risk of water ingress into the back box and wiring connections.

Mounted sockets must also account for the back box. Surface-mounting an IP66 socket on a weatherproof patress box and sealing cable entry with glands maintains the IP rating through to the wiring. Flush-mounting an outdoor socket into a standard metal back box recessed into brickwork undermines the IP rating entirely — water tracks back along the cable and into the box. Always use a surface-mounted weatherproof back box for exposed outdoor positions, or an IP-rated flush patress where the wall itself provides protection.

IP66 Outdoor Sockets — 2-Gang Configuration

For garden and outbuilding applications, a 2-gang IP66 socket is the practical choice. It allows simultaneous use of two appliances — mower and leaf blower, power washer and lighting, or two garden power tools — without the need for extension leads that reduce the effective IP protection of the circuit.

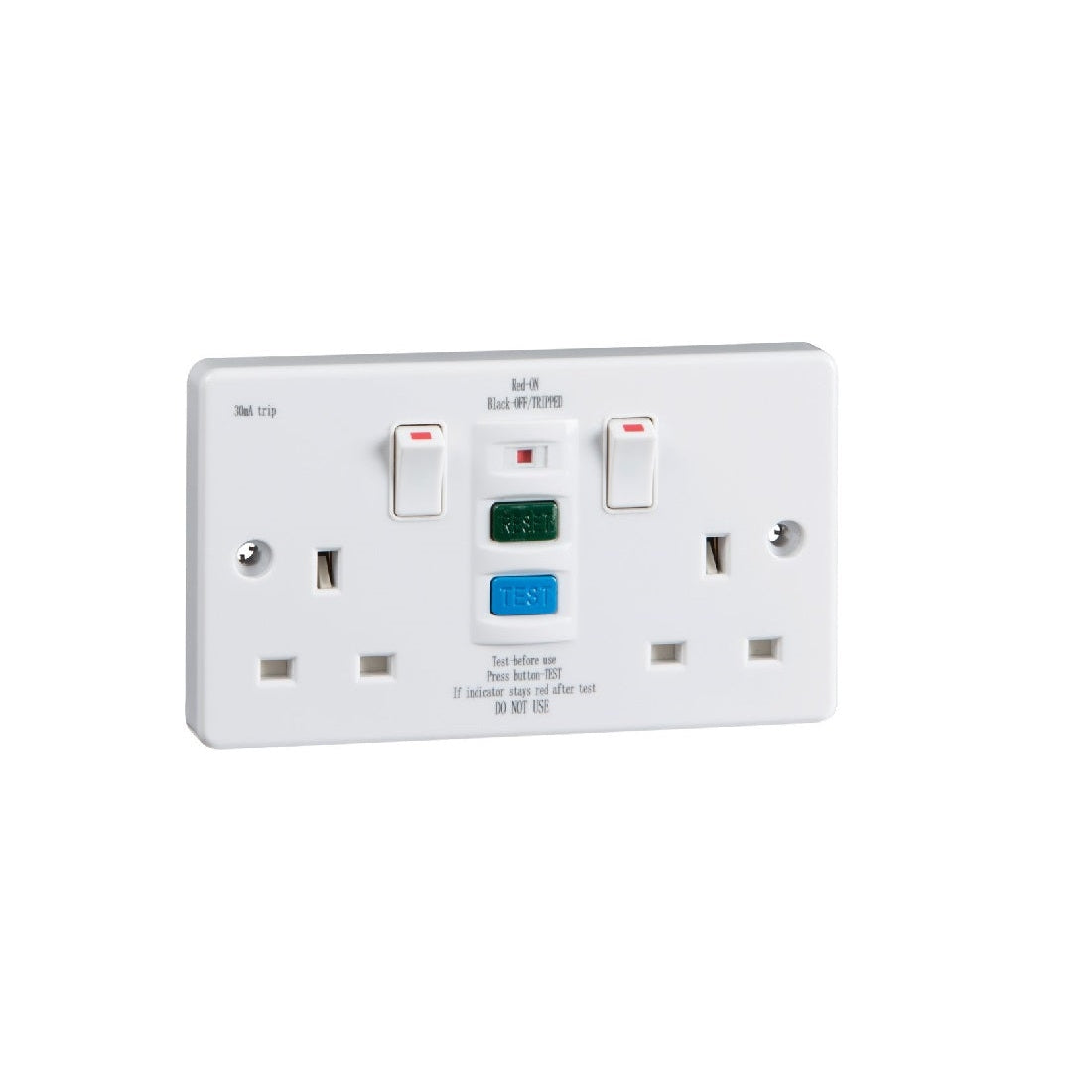

RCD Sockets for Added Protection

Where a separate RCD in the consumer unit is not practicable — for example on older installations with no spare way, or where a socket is being added on an existing circuit without a dedicated RCD breaker — an RCD socket outlet provides built-in protection at the point of use. These incorporate a 30mA RCD module behind the socket face, with test and reset buttons on the front.

RCD sockets are not a substitute for proper circuit protection in new installations. Regulation 411.3.3 requires the RCD to protect the entire outdoor circuit. An RCD socket only protects equipment plugged directly into it — it cannot protect the cable run from the consumer unit to the socket, or any socket further downstream on the same circuit. For compliance, the RCD must be upstream of the cable run.

However, for retrofit applications where a temporary outdoor socket is added using an existing indoor circuit, an RCD socket or RCD adaptor provides the 30mA protection required at the point of use, and is accepted by many inspectors as a pragmatic solution for low-risk extensions on Part P-compliant work.

Cable Selection for Outdoor and Underground Runs

The cable type determines the permitted installation method. For outdoor circuits, three broad options exist:

Twin and Earth (6242Y / 6243Y)

Standard flat twin-and-earth cable is not suitable for outdoor runs exposed to UV, moisture, or mechanical damage unless enclosed in conduit throughout. Where run in rigid steel or PVC conduit, T&E can be used for the internal section of an outdoor run. The conduit must be UV-rated for exposed sections and must be sealed at both ends to prevent moisture migration. This approach is rarely used for buried sections.

Steel Wire Armoured Cable (SWA)

SWA cable is the standard for outdoor buried runs in domestic and commercial installations. The steel wire armour provides mechanical protection against spades, forks, and ground movement. SWA cable can be buried directly without conduit, though building in conduit is best practice for future rewirability. The armour must be earthed at both ends using appropriate cable glands. SWA is also used for surface runs on outbuilding walls where mechanical protection is required.

Common SWA specifications for outdoor domestic circuits:

• 6943X 3-core × 2.5mm² — for single-phase circuits up to 20-25A (dependent on installation method and ambient temperature). Standard choice for outbuilding supplies and garden socket circuits.
• 6943X 3-core × 4mm² — for higher-load outbuilding supplies, workshop circuits, or longer cable runs where voltage drop is a concern.
• 6943X 3-core × 6mm² — for supplies to larger outbuildings with multiple circuits, sub-boards, or electric heating.
• 6943X 4-core × 2.5mm² — for three-phase circuits and supplies where a neutral-earth separation is required in a sub-board.

SWA cable sold per-metre allows you to order the exact run length required plus a 10-15% allowance for bends, gland tails, and connection lengths at each end.

MICC Cable (Mineral Insulated)

Mineral insulated copper-clad cable is used where fire resistance is required — fire alarm circuits, emergency lighting supplies, and high-temperature environments. It is rarely used for standard garden or outbuilding circuits due to cost and the specialist tools required for termination.

Terminating SWA Cable — Cable Glands

Correct termination of SWA cable is critical to maintaining the earth continuity through the armour and achieving the IP rating of the enclosure. Cable glands must be correctly sized for the cable outer diameter, securely grip the armour wires, and provide a weatherproof seal at the point of entry.

The gland type determines the earthing method:

• CW (Cable and Wire) glands — terminate the SWA armour directly within the gland body. The armour wires are clamped between the inner cone and outer body. Earth continuity is maintained through the gland to the earth terminal of the equipment or enclosure. CW glands are the standard choice for most UK SWA terminations and are used for both earthed and unearthed enclosures.
• BW (Back Nut and Wire) glands — a simpler and lower-cost option where the armour is gripped by a back nut. Generally used in clean indoor environments only.
• E1FW and LSF glands — for fire-rated and low-smoke installations where outgassing from PVC materials is restricted.

Gland size must match the outer cable diameter. Most manufacturers publish a gland selection chart — always measure the cable OD before ordering. A 32mm CW gland kit will accommodate the larger SWA cable sizes commonly used for outbuilding supplies and garden circuits.

Cable Burial Depth Requirements

Regulation 522.8 of BS 7671, alongside guidance in the IET On-Site Guide and OSG Table 4A, sets minimum burial depths for underground cables. For SWA cables with mechanical protection from the armour, the minimum recommended depth is:

• 600mm in areas accessible to pedestrians and light vehicles (garden paths, lawns, planting areas)
• 900mm in areas that may be crossed by vehicles (driveways, access roads)
• Marked with cable route marker tape installed 150mm above the cable at all depths

Although SWA armour provides mechanical protection, burial at these depths protects against routine garden tool damage (spades and forks typically penetrate to 300mm), and the cable cover tile or warning tape at 150mm above the cable gives additional notice before the armour is reached.

Where the cable is enclosed in rigid steel conduit throughout the buried section, depth can be reduced, as the conduit provides the mechanical protection. In practice, burial in conduit to 600mm is the most future-proof approach — the SWA can be drawn out and replaced without excavation.

Earthing and Bonding Requirements

Outdoor circuits present specific earthing challenges. The earth fault return path must be reliable — a disconnection anywhere between the supply earth and the circuit protective conductor leaves a socket that can be live to earth but unable to clear a fault. The SWA armour provides a parallel earth path, but the protective conductor within the cable must still be connected at both ends.

For a supply to an outbuilding with its own distribution board, the earthing arrangement must comply with Regulation 643.7. Where the outbuilding has its own means of earthing (a local earth electrode), a TT system may be used with the sub-board protected by an RCD. Where the earth is derived solely from the main building's TN-S or TN-C-S system, the main protective bonding conductor must extend to the outbuilding's main earth terminal — the SWA armour alone is not sufficient as the only protective conductor.

Supplementary bonding is required in outbuildings containing a bath or shower — see our Earth Bonding guide for the full requirements under Regulations 411.3.1.2 and 544.

Notification and Part P Compliance

Any new outdoor circuit in England and Wales must be notified to the local building control authority under Part P of the Building Regulations, or self-certified by a registered competent person (NAPIT, NICEIC, ECA, or ELECSA). This includes:

• New circuits supplying outdoor sockets
• New supplies to outbuildings, garages, and garden buildings
• Replacement of an outdoor circuit (where the cable run is replaced in its entirety)

Adding a socket to an existing outdoor circuit, or replacing a like-for-like outdoor socket, is not notifiable. However, the work must still comply with the current edition of BS 7671 and a Minor Works Certificate (MWC) or Electrical Installation Condition Report (EICR) observation should document the change.

On completion of any notifiable outdoor circuit, an Electrical Installation Certificate (EIC) must be issued, covering the design, construction, and inspection/test. The key test results for an outdoor circuit include:

• Insulation resistance — line-neutral, line-earth, neutral-earth (minimum 1 MΩ at 500V DC)
• Continuity of protective conductors — ring, radial, and bonding conductors
• Earth fault loop impedance (Zs) at each socket — must satisfy the disconnection time for the upstream protective device
• RCD trip time — must trip within 40ms at 5x rated residual current (I∆n × 5)
• Polarity — line to the switched terminal of each socket

Common Outdoor Wiring Scenarios

Scenario 1: Garden Socket on External Wall

The simplest outdoor installation — a weatherproof socket on the outside of the house, typically supplied from a spare way at the consumer unit or from a fused spur on an existing ring final circuit. Route the cable via the shortest internal route to a point where it passes through the external wall. Use a weatherproof grommet or sealant at the wall penetration. Terminate in a surface-mounted IP66 back box on the external face. The circuit must be protected by a 30mA RCD — either at the consumer unit or an RCD socket as above. Cable: 2.5mm² T&E in conduit through the wall; transition to the back box via a conduit fitting with sealed entry.

Scenario 2: Buried Supply to Garden Shed or Summerhouse

Plan the route from the consumer unit to the outbuilding, avoiding routes under trees (root movement) and paved areas where possible. Install a dedicated 20A circuit protected by a 30mA Type A RCD at the consumer unit. Run 3-core × 2.5mm² SWA from the consumer unit, through the wall at ground level, and buried to 600mm depth across the garden. Terminate with CW glands at the consumer unit knockouts and at the outbuilding enclosure. Earth the armour at both ends. In the outbuilding, install a small 2-way consumer unit with an RCD and two MCBs — one for lighting, one for sockets. Issue an EIC and notify Part P.

Scenario 3: External Socket on Outbuilding Wall

Where a garden office, workshop, or garage requires an external socket as well as an internal supply, mount a surface IP66 socket on the outbuilding's exterior. Run SWA along the external face of the building in conduit or saddle-clipped, terminating at the outbuilding's sub-board. The external socket circuit must be protected by a 30mA RCD at the sub-board. As an external socket in a garden building, this remains a notifiable circuit under Part P.

Selecting the Right Products for the Job

For most domestic outdoor socket installations, the following specification covers the majority of applications:

• Consumer unit protection: 30mA Type A RCBO (or RCD + MCB) for the outdoor circuit
• Cable: 3-core × 2.5mm² SWA for buried runs; 2.5mm² T&E in conduit for surface/internal runs
• Socket: IP66 2-gang for exposed positions; IP44 acceptable under canopy
• Cable glands: CW-type, correctly sized to cable OD, earthed at both ends
• Marker tape: Yellow cable route marker tape at 150mm above buried cable

Where the installation is a retrofit without a dedicated RCD at the consumer unit, an RCD socket provides 30mA protection at the point of use as an interim measure, though a permanent dedicated circuit with upstream RCD is the compliant solution for any new notifiable work.

For installations that include outdoor security lighting alongside garden sockets, see our guide on PIR LED Security Floodlights — outdoor lighting and socket circuits are often run together to minimise trenching.

Summary

Outdoor electrical installations require attention to IP ratings, cable selection, earthing, and mandatory RCD protection. Every outdoor circuit must be protected by a 30mA RCD under BS 7671 Regulation 411.3.3. SWA armoured cable is the standard for buried runs. IP66 sockets are the correct choice for exposed garden positions. Cable glands must be correctly sized and earthed at both ends. Most new outdoor circuits are notifiable under Part P and require an EIC on completion.

The four products above cover the core components of most domestic outdoor socket installations: a weatherproof IP66 2-gang socket, SWA armoured cable per metre for buried runs, an RCD socket for retrofit protection, and CW cable glands for correct armour termination.
