Panel Radiators and Column Radiators — BTU Sizing, Fitting, and Balancing for UK Plumbers and Heating Engineers

Radiator replacement is one of the most common heating engineer call-outs in the UK. Whether you are swapping a failed panel radiator on an existing system, adding a column radiator in a refurbished room, or advising a customer on an upgrade, understanding output calculations, valve types, and balancing procedure will save you time on site and protect the system long-term.

This guide covers panel radiators, column radiators, and double-panel double-convector (DPDC) types — their sizing by BTU/Watts, valve and isolation requirements, connection to sealed and open-vented systems, and balancing technique.

Panel Radiator Types

UK domestic and light commercial radiators fall into a handful of standard types, classified by panel count and convector fin arrangement:

• Type 10 (Single Panel, No Convector): Low-profile slab radiator. Suits bathrooms and modern minimal interiors. Lower output for a given size.
• Type 11 (Single Panel, Single Convector): Most common in period properties and single-zone rooms. Balanced output-to-depth ratio.
• Type 21 (Double Panel, Single Convector): Higher output than Type 11 in the same footprint. Suited to medium-sized rooms.
• Type 22 (Double Panel, Double Convector — DPDC): The workhorse of UK new-builds and retrofits. Maximum output for given dimensions. Requires slightly higher flow rate.
• Type 33 (Triple Panel, Triple Convector): Used in hard-to-heat spaces or rooms with high heat loss. Heavier; bracket spacing critical.

Column radiators — traditional cast iron style now usually mild steel or aluminium — are specified by section count and column depth (2-column, 3-column, 4-column). They offer the same output calculations but have a longer warm-up time and higher water content, which suits open-vented systems and older boilers with lower pump pressure.

BTU and Watt Output Calculation

Radiator output is rated at Delta T 50°C (mean water temperature 70°C, room temperature 20°C) in the UK. All manufacturers quote output at ΔT50 as standard.

To calculate room heat demand:

1. Measure floor area (m²)
2. Multiply by ceiling height (m) to get volume (m³)
3. Apply a watts-per-m³ factor:
   • Well-insulated new build: 30–40 W/m³
   • Average 1970s–90s property: 45–55 W/m³
   • Pre-1960 solid wall, poor insulation: 60–80 W/m³
4. Add 10–20% uplift for rooms with large glazing or exposed external walls

Example: 4m × 3.5m room, 2.4m ceiling, average 1970s property = 33.6 m³ × 50 W/m³ = 1,680 W (5,732 BTU). Select a radiator rated at or above 1,680 W at ΔT50.

Convert between units: 1 kW = 3,412 BTU/hr; 1,000 BTU/hr = 293 W.

Low-Temperature Systems (Heat Pumps)

Air source and ground source heat pumps run at lower flow temperatures — typically 45–55°C mean water temperature (ΔT25 or ΔT35). At these temperatures, a Type 22 radiator delivers roughly 50–60% of its ΔT50 rated output. Size accordingly: a room needing 1,500 W from a heat pump system at ΔT35 may require a radiator rated at 2,500–3,000 W at ΔT50. Oversizing radiators is the correct approach for heat pump retro-fits — never undersize.

Valve Selection

Thermostatic Radiator Valves (TRVs)

TRVs are mandatory under Part L of Building Regulations for all new and replacement radiators in heated rooms, except the room containing the main room thermostat. The TRV head senses air temperature and throttles flow to maintain setpoint without requiring a separate programmer signal.

Key TRV specifications:

• Body pattern: Straight, angled, or H-block (corner) — must match the radiator tail orientation and pipework approach
• Kv flow coefficient: Controls maximum flow rate. Most domestic TRVs have Kv 0.3–1.0. Lower Kv suits small radiators; higher Kv suits large panel or column radiators
• Preset: Some TRVs (Drayton RA4900, Honeywell Home VT117) have pre-settable flow limiters — useful for pre-balancing during commissioning
• Head compatibility: Standard M30 × 1.5 thread mates with most UK valve bodies. Confirm before ordering replacement heads

Lockshield Valves

The lockshield valve controls return-side flow for system balancing. It is adjusted with a flat-blade screwdriver or specialist key and then locked with a plastic cap to prevent interference. Do not omit the lockshield — without it, balancing the system is impossible.

Manual Radiator Valves

Used as a TRV alternative where occupant control is preferred over automatic temperature regulation, or in the thermostat room. Available as straight (for pipes rising vertically through the floor) or angled (for pipes from the wall).

Fitting a Replacement Radiator

Isolation and Draining

Before disconnecting the old radiator:

1. Isolate both valves — turn the TRV to 0 and close the lockshield fully, noting the number of turns so you can restore the balance position on the new radiator
2. Place a radiator drain tray under each valve connection
3. Open the bleed valve at the top of the radiator to admit air and allow gravity drain
4. Disconnect both valve connections and drain residual water from the radiator before lifting

If the valves are corroded or leaking, replace them as part of the job. Attempting to work with seized lockshields is a common cause of system leaks after a radiator swap.

Wall Hanging

Most panel radiators ship with a pair of wall brackets. Locate studs or use suitable cavity fixings for plasterboard — a standard Type 22 600 × 1200 mm radiator weighs approximately 16–20 kg when full of water. Mark the bracket height using a spirit level across both sides. The radiator should be level to within 2 mm — a tilted radiator traps air at the valve end and causes gurgling and poor output.

Leave a minimum 100 mm clearance below the radiator for cleaning and airflow convection, and 50 mm above. Avoid mounting directly below an electrical socket.

Valve and Tail Installation

1. Wrap the radiator tail threads with three to four turns of PTFE tape, stretching it as you wrap to seat properly into the thread. Wind in the direction of thread rotation (clockwise looking at the tail end)
2. Fit the valve tailpiece into the radiator bottom tapping — hand-tight then one full turn with a spanner. Do not overtighten mild steel tappings
3. Connect compression fittings to the pipework, ensuring the olive seats squarely on the copper before tightening the cap nut. Do not over-compress — one-and-a-quarter turns past hand-tight on standard 15 mm

Filling and Pressure Testing

1. Open both valves slowly and listen for water entering. Open the bleed valve by half a turn to purge air until water flows steadily, then close
2. Check all connections for weeps before closing the dust sheets
3. After the system refills to working pressure (typically 1.0–1.5 bar on a sealed system), run to full temperature and re-check

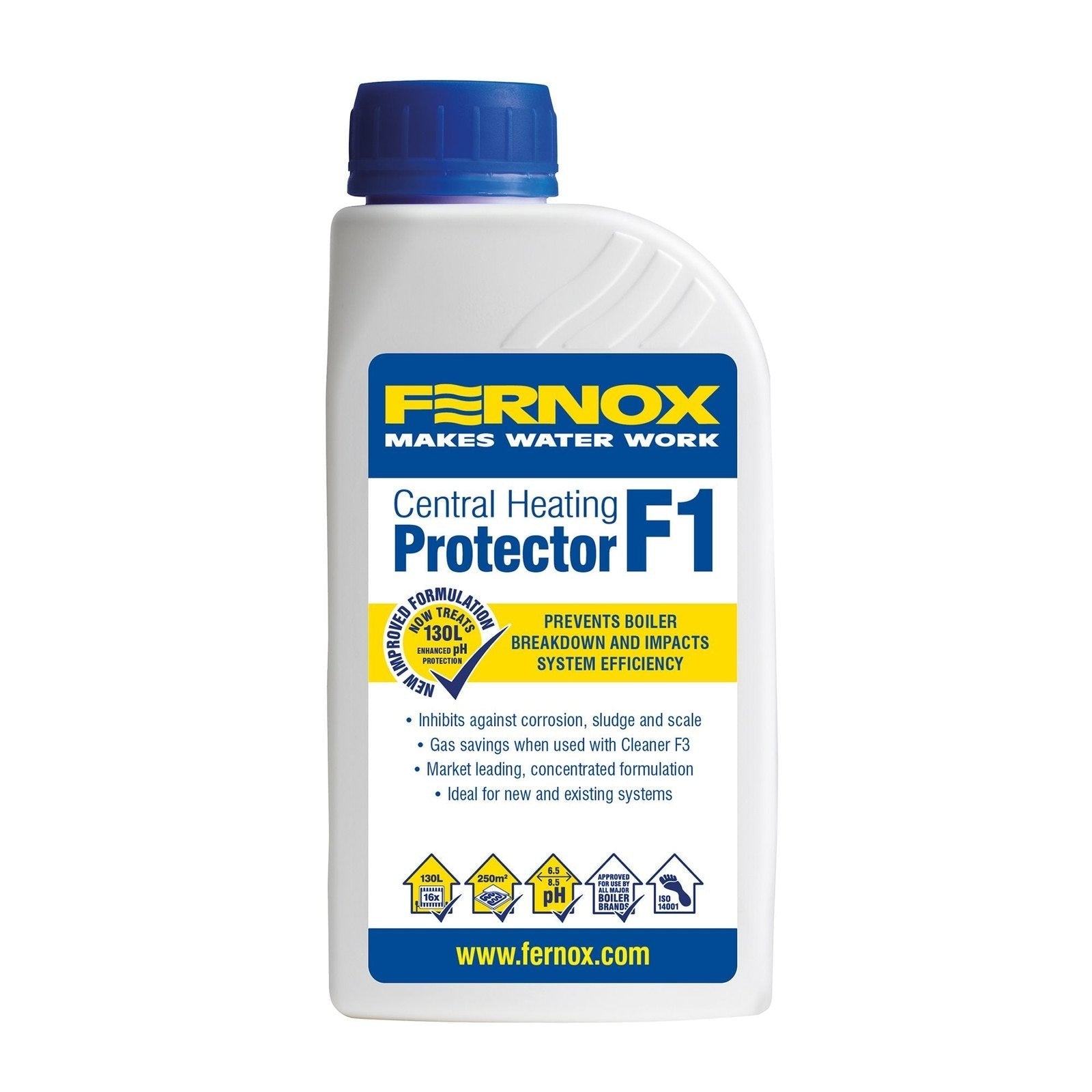

4. Dose with inhibitor appropriate to the system — Fernox F1 or equivalent — if the system has been drained significantly. Check existing inhibitor level with a test strip if available

Balancing a Central Heating System

Balancing ensures each radiator receives the correct proportion of system flow so that all radiators reach setpoint temperature simultaneously. An unbalanced system causes some rooms to overheat while others remain cold, and the boiler may short-cycle on the stat room before distant radiators warm up.

Tools Required

• Pipe clamp thermometer or digital infrared thermometer
• Lockshield valve key or flat-blade screwdriver
• Notepad for recording turns and temperatures

Procedure

1. Open all TRVs fully (turn to maximum setting) and open all lockshields fully
2. Run the boiler at full output until the system reaches operating temperature (typically 70–80°C flow)
3. Identify the radiator closest to the boiler — this will heat up first. It gets the most restriction. The radiator furthest from the boiler gets the least restriction (leave it fully open as the reference)
4. Working nearest to furthest, progressively close each lockshield until there is a temperature difference of 10–12°C between flow (valve side) and return (lockshield side) on that radiator
5. A 12°C differential (e.g., 75°C flow, 63°C return) indicates correct flow velocity through the radiator for good heat transfer
6. Work through each radiator in turn. The system will shift as you adjust, so return to earlier radiators for a second pass if temperatures drift

Pre-settable TRVs speed up balancing on new installations by limiting the maximum flow at the TRV body, reducing the adjustment required at the lockshield. They are particularly useful on large systems with many radiators.

Column Radiators — Specific Considerations

Column radiators have higher water volume per kW output than panel radiators. This gives slower response but is an advantage in open-vented systems where the expansion vessel is a header tank — the larger water mass buffers temperature swings.

On sealed systems with condensing boilers and weather compensation, the increased thermal mass of column radiators can cause the boiler to modulate poorly. Ensure the boiler minimum flow rate exceeds the system's static fill pressure by at least 0.3 bar to avoid cavitation at low firing rates.

Column radiator brackets must be rated for the full filled weight. A 10-section 4-column steel radiator at 900 mm height typically weighs 25–35 kg filled — confirm the manufacturer's filled weight data and use M10 wall bolts into masonry or structural noggins.

Aluminium Radiators

Aluminium panel and column radiators offer faster warm-up time and lighter weight compared to mild steel. They are the preferred choice for heat pump systems due to lower thermal mass and good performance at reduced flow temperatures.

Aluminium is incompatible with mixed-metal systems without appropriate inhibitor. If aluminium radiators are installed alongside a steel boiler heat exchanger and copper pipework, use an inhibitor formulated for mixed-metal systems (e.g., Fernox F1 or Sentinel X100 — both suitable for aluminium). Do not use inhibitors marketed only for steel/copper systems — electrolytic corrosion risk.

Common Faults and Fixes

Regulations and Compliance

• Part L (Conservation of Fuel and Power): TRVs required in all newly heated rooms in England and Wales except the stat room. Scotland and Northern Ireland follow similar provisions under their Building Standards
• Part P: Radiator replacement work on existing pipework (plumbing only, no new electrical connections) is not notifiable under Part P. However, if adding a new electric towel rail or electric element, notification or self-certification applies
• Gas Safety (Installation and Use) Regulations 1998: Do not work on gas-connected appliances or the boiler heat exchanger without Gas Safe registration. Radiator and pipework work is not gas work
• Water Regulations 1999: Sealed heating system fill connections must incorporate a double-check valve to prevent backflow into the mains. Confirm the filling loop includes this and is disconnected after filling
