Shower Pumps and Twin Impeller Pumps — Boosting Gravity Hot Water Pressure for UK Plumbers

Poor shower pressure is one of the most common complaints in UK homes with gravity-fed hot water systems. A dedicated shower pump or twin-impeller pump is the most effective fix — boosting both hot and cold supplies to deliver a satisfying shower experience without replacing the entire system. This guide covers pump selection, installation, pipework sizing, and fault diagnosis for UK plumbers.

Why Shower Pumps Are Needed

Combi boilers and unvented cylinders deliver mains-pressure hot water, so shower pumps are not used with them. Shower pumps are fitted on gravity-fed (vented) systems where the hot water cylinder is fed from a cold water storage cistern in the loft, and the water pressure depends on the height of the cistern above the draw-off point (typically 0.1 bar per metre of head).

In a typical two-storey house with a loft cistern, the head at first-floor shower level might be only 1–3 metres, giving 0.1–0.3 bar — barely enough for a trickle shower. A shower pump boosts both hot and cold supplies to 1–3 bar, transforming performance.

Types of Shower Pump

Single-Impeller Pumps

A single-impeller pump boosts only one supply — either hot or cold. These are used where only one supply needs boosting, or where the cold supply is already mains-pressure (e.g., cold direct from mains, hot from cylinder). Less common in modern domestic installs.

Twin-Impeller Pumps

A twin-impeller pump has two separate impellers housed in one body — one for hot, one for cold. Both supplies enter the pump simultaneously and are boosted independently, then flow to the shower valve. This ensures balanced hot/cold pressure at the mixing valve, preventing thermal shock. Twin impellers are the standard choice for vented systems with both hot and cold from the cistern.

Positive Head vs Negative Head Pumps

This is the most critical selection decision:

• Positive head pumps — require a minimum head (typically 600mm) between the cistern base and the pump inlet to start. They detect flow by sensing the positive pressure at the inlet. Suitable for most loft-cistern installations where the pump is located in the airing cupboard and the cistern is in the loft above.
• Negative head (universal) pumps — incorporate an integrated flow switch or pressure sensor and can operate with zero or negative head. Required when the pump is installed at the same level as, or above, the cistern (e.g., in a bathroom directly below the loft hatch, or where the cistern is in a low-level cupboard).

Fitting a positive head pump where there is insufficient head will result in the pump not starting, or hunting and vibrating as it repeatedly attempts to start. Always measure the actual static head before selecting.

Pump Ratings

Pump output is rated in bar (boost pressure) and flow rate (litres per minute). Common domestic ratings are 1.5 bar, 2.0 bar, and 3.0 bar. A 1.5 bar pump is usually sufficient for a single shower with reasonable pipework; 2.0–3.0 bar suits longer pipe runs or multiple outlets.

Note that the rated pressure is achieved at a specific flow rate — higher flow means lower pressure. Always check the pump's performance curve against the shower valve's minimum pressure and flow requirements. Most thermostatic shower valves require a minimum of 0.1–0.3 bar and 6–12 litres/minute to operate correctly.

Installation Requirements

Regulations

Shower pump installations must comply with:

• Water Supply (Water Fittings) Regulations 1999 — all plumbing materials must be WRAS approved
• BS 6700 — design, installation, testing, and maintenance of water services
• Manufacturer installation instructions — warranty and performance are dependent on correct installation

The pump must be electrically connected to a fused spur (typically 3A fuse) by a qualified electrician. In a bathroom, the spur must be outside Zone 1 and Zone 2 as defined by BS 7671. The pump itself must be rated for bathroom use (typically IP44 or higher). An isolator switch must be fitted in an accessible position outside the bathroom or within reach without entering a wet zone.

Minimum Head Requirements

For positive head pumps, the minimum head is measured from the underside of the cold cistern (or from the vent/expansion pipe entry point into the cylinder for the hot supply) down to the pump inlet. Typical minimum is 600mm. Measure this carefully — heads below the minimum result in failure to start.

If head is marginal, raise the cistern (if structurally possible), or switch to a negative head pump.

Pipework Sizing

Undersized pipework is the most common cause of underperformance. For most domestic shower pumps, supply pipes from cistern to pump should be at minimum:

• 22mm from cistern/cylinder to pump inlet (28mm for high-output 3 bar pumps)
• 15mm from pump outlet to shower valve (if run is short and straight)

Long pipe runs, multiple bends, and isolation valves all create additional resistance. Where possible, run 22mm pipe as close to the shower as practicable and reduce to 15mm at the valve.

The hot supply draw-off must be from the cylinder side of the vent pipe (not from the vent pipe itself) to avoid pumping air. This is the most common installation error. Draw the hot supply from a dedicated dedicated tee on the hot outlet of the cylinder, below the vent take-off.

Pump Location

The pump should be located:

• As close to the cylinder as possible to minimise pipe run
• In the airing cupboard or utility area — not in a bathroom (unless manufacturer specifies)
• On anti-vibration mounts (most pumps are supplied with rubber feet — use them, and consider an anti-vibration mat if the pump sits on a wooden floor)
• Accessible for servicing — allow removal clearance for impeller chambers

Installation Steps

1. Drain down the hot and cold supplies to the pump feed points. On the cold side, fit a gate valve or service valve close to the cistern outlet. On the hot side, fit a gate valve on the hot outlet of the cylinder above the immersion heater (or close to the cylinder outlet).
2. Run 22mm pipework from the cylinder hot outlet and from the cistern cold supply to the pump inlet connections. Ensure the hot inlet goes to the hot impeller side (marked H or red) and cold to the cold side (C or blue).
3. Run 15mm pipework from the pump outlets to the shower valve or thermostatic bar valve.
4. Fit isolating valves on pump inlets to allow servicing without draining the system.
5. Open isolation valves and check for leaks before energising the pump.
6. Check that the pump primes correctly — water should appear at the shower head (with valve open) before switching on. Never run the pump dry.
7. Connect the fused spur (by an electrician) and switch on. The pump should start when the shower valve is opened and stop when it closes. There should be no more than 2–3 seconds delay.

Noise and Vibration

Pump noise is a frequent complaint. Causes include:

• Vibration transmission — fit anti-vibration mounts and ensure pipework is not rigidly clamped directly to joists within 1m of the pump
• Water hammer — fit a pressure-reducing valve on the cold supply if pressure fluctuations cause banging; consider a mini expansion vessel on the cold inlet
• Cavitation — air in the hot supply causes a distinctive rattling noise. Check the hot supply draw-off point (it must be below the vent pipe take-off), and that the cylinder is fully charged
• Worn impeller bearings — a grinding or screeching noise in an older pump indicates bearing failure; replacement is usually uneconomical and the pump should be replaced

Common Faults and Diagnosis

Servicing Shower Pumps

Shower pumps should be serviced every 2–3 years, or earlier if performance deteriorates:

1. Isolate electrically and close inlet isolation valves
2. Remove pump from pipework (unions make this straightforward if fitted on installation)
3. Open impeller chambers (usually secured by screws around the volute)
4. Remove impellers and clean volute passages — limescale and debris accumulate here
5. Inspect flow switch and clean or replace if sticking
6. Replace O-ring seals on impeller chambers
7. Reassemble, refit, and check for leaks

Descaling is important in hard water areas — soak impellers and volute chambers in descaler solution for the time recommended by the manufacturer.

Alternatives to Shower Pumps

Where a shower pump is not appropriate (e.g., a combi boiler property with insufficient mains pressure), consider:

• Pressurised whole-house booster pump — boosts cold mains inlet, increasing pressure throughout the property
• Electric shower — draws cold water directly from mains and heats it internally; no cylinder or pump needed but limited power options
• Unvented cylinder retrofit — replacing a vented system with an unvented pressurised cylinder delivers mains pressure throughout; more disruptive but permanent

Featured Products

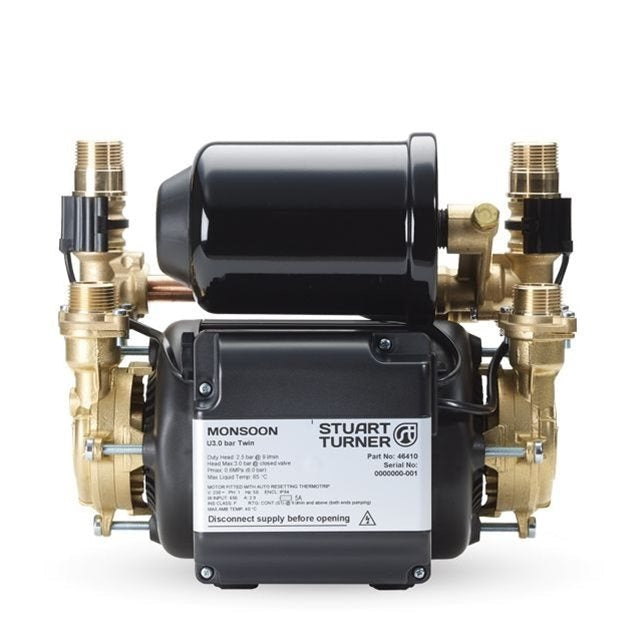

• Stuart Turner Monsoon 3.0 Twin Shower Pump (Universal)
  Neg/pos universal twin-impeller pump, 3.0 bar boost, suits zero or negative head installations. The go-to choice where cistern height is marginal or pump is at same level as cistern.
• 46416 Positive Monsoon S3.0 Bar Twin
  Positive head twin-impeller pump, 3.0 bar, designed for standard loft-cistern installations where ≥600mm head is confirmed. Most common domestic install.
• U2.0 Bar Twin N/Pos Monsoon
  2.0 bar universal twin-impeller pump — a practical mid-spec choice for average-length pipe runs and single-shower installations where 3.0 bar is not required.
• Grundfos STR2-1.5C Shower Pump
  Compact 1.5 bar single-impeller shower pump from Grundfos. Entry-level option for low-demand installations or where only one supply requires boosting.
