Toilet Cistern Repair and Maintenance — Syphons, Inlet Valves, Descalers, and Cistern Parts for UK Plumbers

Cistern faults are among the most common plumbing callouts in the UK. A running toilet, a weak flush, or a cistern that fails to refill properly — all of these are quick diagnoses and fast repairs for a competent plumber, provided you carry the right parts. This guide covers everything you need to know about toilet cistern maintenance: how cisterns work, how to diagnose the most frequent failures, and which components to stock for effective, first-time repairs.

How a WC Cistern Works

Most UK domestic toilets use either a syphon-flush or a drop-valve mechanism to release water from the cistern into the pan. Understanding which type you are working on is the first step in any cistern repair.

Syphon-Flush Cisterns

The traditional UK-market mechanism. When the flush lever or button is pressed, a diaphragm inside the syphon body is pulled upward, creating a siphonic action that draws water over the top of the syphon and down into the flush pipe. The water flows until the cistern empties or the flush is released.

Syphon cisterns are common in properties built before the 2000s and remain popular because they cannot suffer from valve drip — water only leaves the cistern during an active flush. This makes them inherently compliant with Water Supply (Water Fittings) Regulations 1999 backflow prevention requirements without additional double-check valves.

Drop-Valve and Dual-Flush Cisterns

Modern close-coupled and concealed cisterns increasingly use a drop-valve or dual-flush valve mechanism. A seal at the base of the valve sits against a seating at the bottom of the cistern; when the flush handle or push-button is operated, the valve lifts to release water. Dual-flush designs offer a short flush (typically 4 litres) and a full flush (typically 6 litres), meeting the 6/4 litre water efficiency requirements under BS EN 997.

Drop valves are more susceptible to drip failure when the seal wears or debris sits on the seating — the most common cause of a continuously running toilet on modern cisterns.

Inlet Valves (Fill Valves)

Regardless of flush mechanism, all cisterns use an inlet valve (also called a fill valve or float valve) to control the water supply into the cistern after each flush. Traditional designs use a ballcock with a horizontal float arm; modern designs use a float that travels vertically on a spindle, offering a more compact, quieter mechanism with less susceptibility to fouling.

Inlet valves are available in side-entry (supply enters through the cistern side wall, typically 15mm compression) and bottom-entry (supply enters through the cistern base) configurations. Bottom-entry valves are preferred where the cistern back panel conceals the supply pipework and are now the most common type on modern close-coupled suites.

Scale Build-Up in Cisterns — A Hidden Cause of Failures

In hard water areas — which account for approximately 60% of England by water supply zone — limescale accumulates inside the cistern, on the syphon diaphragm, on inlet valve components, and around the flush valve seating. Scale build-up is a leading cause of:

• Inlet valves that fail to shut off, causing continuous refill noise
• Syphon diaphragms that become stiff and no longer flex correctly
• Drop valve seatings that develop micro-roughness, preventing a full seal
• Cistern levers that seize or become difficult to operate

Regular descaling — or fitting a scale-inhibiting anti-scale tablet or liquid — significantly extends the service life of cistern internals and is an easy value-add recommendation for plumbing clients in hard water areas.

Diagnosing Common Cistern Faults

Most cistern callouts fall into one of five fault categories. A systematic diagnosis before ordering parts saves time and avoids unnecessary return visits.

Fault 1: Toilet Running Continuously (Phantom Flush)

Likely cause (syphon cisterns): Worn or perforated syphon diaphragm. Water drips past the diaphragm and into the pan continuously without activating the flush. Confirm by placing food dye in the cistern — if dye appears in the bowl without flushing, the syphon is failing.

Likely cause (drop valve cisterns): Worn drop valve seal or debris on the valve seating. Lift and inspect the seal; clean or replace as required. Note: if scale has roughened the seating surface, a new seal alone may not achieve a lasting repair — the seating may also need attention.

Fault 2: Cistern Fails to Refill or Refills Very Slowly

Likely cause: Faulty inlet valve. The valve may be jammed closed (scale, debris), or the float may be waterlogged and sitting too low to open the valve. Check water supply pressure at the service valve first. A scale-encrusted inlet valve that partially opens may be repaired by descaling; a physically damaged valve or one with a failed diaphragm should be replaced.

Fault 3: Cistern Overfills — Water Running into Overflow Pipe

Likely cause: Inlet valve failing to shut off at the set water level. Either the float arm is set too high, the float has developed a perforation and is waterlogged, or the valve diaphragm has failed and will not close fully. Check: raise the float arm by hand — if water flow stops, the float height needs adjustment. If water continues regardless, the valve needs replacement.

Fault 4: Weak or Slow Flush

Likely cause (syphon cisterns): Stiff or partially perforated diaphragm, or a scale-clogged syphon body restricting water flow. Descale first; if flush remains weak after descaling, the syphon should be replaced.

Likely cause (any cistern): Insufficient water level in cistern — check and adjust inlet valve to fill to the correct height (typically 25mm below the overflow pipe entry). Also check the flush pipe and syphon connector for partial blockage.

Fault 5: Stiff or Non-Functional Flush Lever

Likely cause: Scale-seized lever pivot, broken lever arm, or disconnection from the syphon or flush valve link rod. Levers are inexpensive and should be replaced as a unit. Ensure the replacement lever is compatible with the cistern profile (side, front, or top-entry).

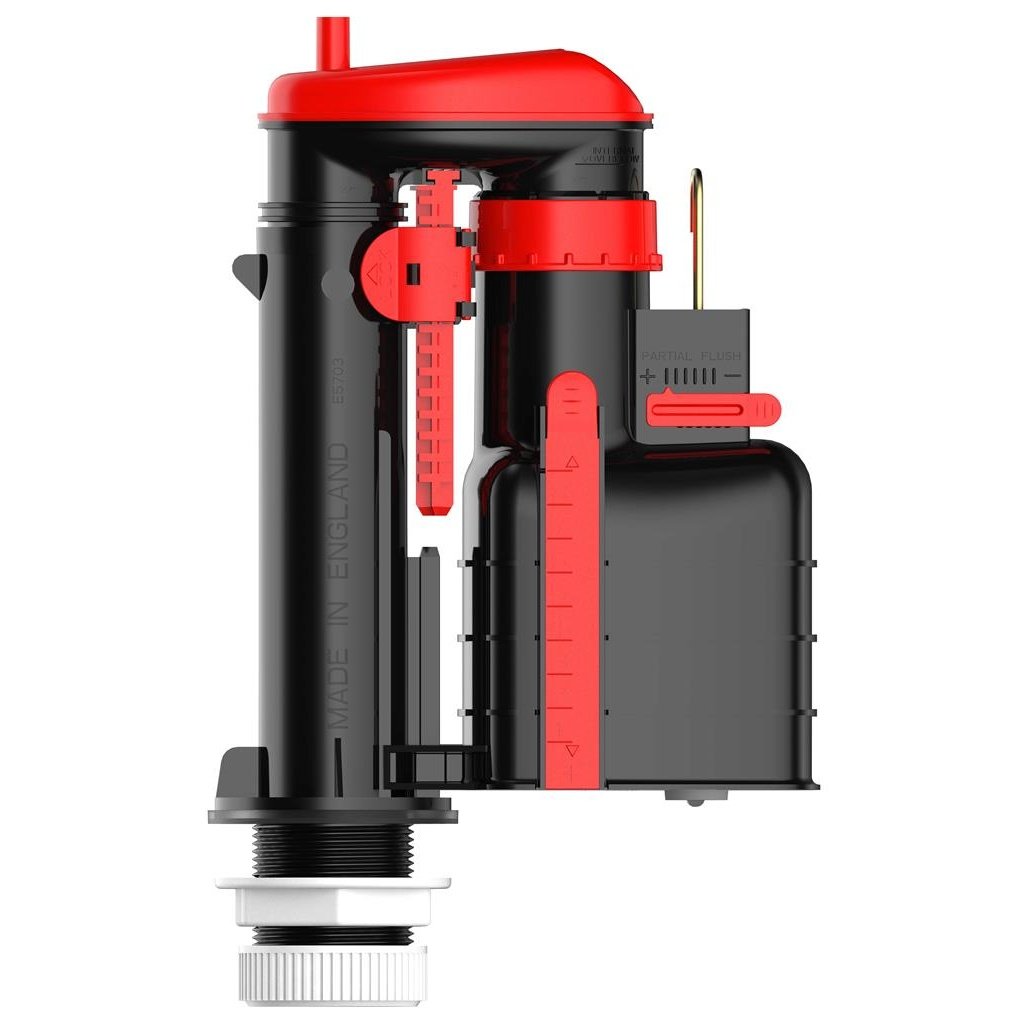

Syphon Replacement

Replacing a cistern syphon is a half-day repair for most plumbers, requiring the cistern to be isolated from the supply and either removed from the cistern or accessed from above depending on the design. Universal syphons are designed to fit the majority of close-coupled and low-level cisterns without requiring a complete toilet replacement.

Inlet Valve (Fill Valve) Replacement

Inlet valves have a finite service life. In hard water areas, a valve may need replacement every 5–8 years; in soft water areas, a quality valve may last considerably longer. The Water Supply (Water Fittings) Regulations 1999 (Schedule 2, paragraph 16) require that WC cisterns are fitted with approved float-operated valves — both traditional ballcock and modern float-spindle designs are covered under approved designs, provided they comply with BS 1212 or the applicable EN standard.

When replacing an inlet valve:

• Isolate the supply and flush the cistern to drain it
• Identify whether the existing supply enters through the side (typically 15mm compression to the cistern side wall) or base (bottom-entry, below the cistern floor) — replace like-for-like unless you intend to modify the supply arrangement
• Note the cistern water level mark or measure to the overflow pipe; set the new valve to match so the cistern fills to the correct level
• Use PTFE on all threaded connections and hand-tighten to half a turn past finger-tight — over-tightening plastic cistern bodies risks cracking
• Run a short flush cycle and confirm the valve closes cleanly at the set water level before closing the service valve cover

Cistern Lever and Handle Replacement

The cistern lever is a frequently overlooked failure point. Chrome finishes corrode and pit in high-humidity bathrooms; plastic lever arms crack under repeated use; the link between the lever and the syphon or flush valve can separate and prevent operation. A lever replacement takes under ten minutes and is a worthwhile inclusion on any cistern service visit — particularly as a preventive measure when the existing lever is visibly corroded.

Most cistern levers connect to the syphon or drop-valve via a short link rod or wire. Ensure the replacement lever arm is compatible with the cistern design:

• Single-flush syphon lever: A simple pivot arm — one position activates the flush. Available in chrome, white plastic, or brushed nickel finishes.
• Dual-flush handle: Push-button systems on modern cisterns require the full push-button assembly, not a traditional lever.
• Bottom-entry cistern levers: Where the lever pivot passes through the cistern front or top panel, ensure the pivot fixing method matches.

Water Regulations Compliance for WC Cistern Repairs

All WC cisterns and cistern components in the UK are subject to the Water Supply (Water Fittings) Regulations 1999. Key requirements for cistern maintenance work include:

Float-Operated Valves

Inlet valves must be of an approved type that prevents backflow and shuts off reliably at the set water level. Traditional ballcock valves complying with BS 1212 Parts 1–3 are approved. Modern float-spindle valves should comply with BS EN 14055 or carry WRAS (Water Regulations Advisory Scheme) approval.

When replacing an inlet valve, verify that the replacement valve is WRAS-listed or carries a CE marking confirming compliance with the relevant standard. A non-compliant valve that allows water to siphon back into the mains supply from a contaminated cistern could, in theory, constitute a notifiable Water Regulations breach.

Overflow Pipes

The overflow pipe from a WC cistern must discharge to a visible location — either externally to the outside of the building or, in some installations, into the WC pan. An overflow running internally to a drain without being visible is non-compliant. If you encounter an internal overflow on a repair visit, advise the client and note it on the job sheet.

Cistern Water Volume

Since 1993, all new WC suites have been required to flush with a maximum of 7.5 litres per full flush (reduced to 6 litres maximum in 2001 under the 2000 Building Regulations Approved Document G revision). When replacing a cistern or upgrading internals, ensure the new configuration does not result in a flush volume exceeding the current maximum. Dual-flush mechanisms providing 6/4 litre options are the standard trade solution.

When to Repair vs Replace the Cistern

The decision between repairing individual cistern internals and recommending a full cistern or suite replacement depends on several factors:

Repair is appropriate when:

• The cistern body is intact — no cracks, crazing, or porosity
• The pan and cistern remain as a matched suite with no visible damage
• The failure is isolated to one internal component (inlet valve, syphon, or lever)
• The suite is less than 20 years old and parts remain available
• The customer has no plans to remodel the bathroom

Replacement is worth considering when:

• Multiple internal components are failing simultaneously, suggesting general end-of-life
• The cistern is on an oversized 9-litre or older pre-1993 suite — replacement with a 6/4 dual-flush suite will deliver ongoing water savings
• The cistern or pan is cracked, discoloured, or heavily crazed
• Concealed cistern systems where internal access is restricted and repeated failure is likely
• The customer is already remodelling or the bathroom is due for renovation

For concealed cistern and wall-hung WC systems, Geberit Duofix and Grohe Rapid SL frames offer serviceable components that can be accessed through the flush plate aperture — see our guide to concealed cisterns and wall-hung WC installation for details.

Servicing Checklist for Cistern Maintenance Visits

A structured cistern service visit covers the following points efficiently:

1. Inspect the cistern body — check for cracks, staining, or evidence of external condensation (can indicate under-insulated cold water supply)
2. Lift the lid and assess scale build-up — visible white or orange calcium deposits indicate hard water area; recommend descaling with Faren F200 before component work
3. Test the flush — note whether the flush is crisp, slow, or continuous
4. Observe the refill cycle — confirm the inlet valve opens promptly, fills at a reasonable rate, and shuts off cleanly at the set level
5. Check the overflow pipe — verify it is not weeping; if it is, the inlet valve or its float setting is the likely cause
6. Inspect the lever and connection to the syphon or flush valve — check for corrosion, looseness, or play in the link
7. Check the service valve below the cistern — verify it operates freely; a seized service valve makes future maintenance difficult
8. Record the cistern make and model if visible — note on the job sheet for future reference, particularly if the suite has branded internals requiring proprietary replacement parts

Stocking Recommendations for Mobile Plumbers

Cistern repairs are high-frequency callouts. Carrying core components avoids same-day sourcing delays and allows first-visit resolution in the majority of cases:

• Universal syphon (dual-flush) — covers the majority of pre-2010 close-coupled and low-level cisterns
• Adjustable bottom-entry inlet valve — the most common type on modern close-coupled suites
• Side-entry inlet valve — for older low-level cisterns and some concealed cistern systems
• Cistern lever (chrome) — stock one or two; they are inexpensive and frequently needed
• Faren F200 descaler — a 1-litre bottle goes a long way when used as a maintenance dose; recommend as a leave-behind product for hard water area clients
• PTFE tape — always required for inlet valve connections
• Syphon diaphragm washers — some syphons can be repaired with a new diaphragm rather than a full syphon replacement; carry a selection of sizes
