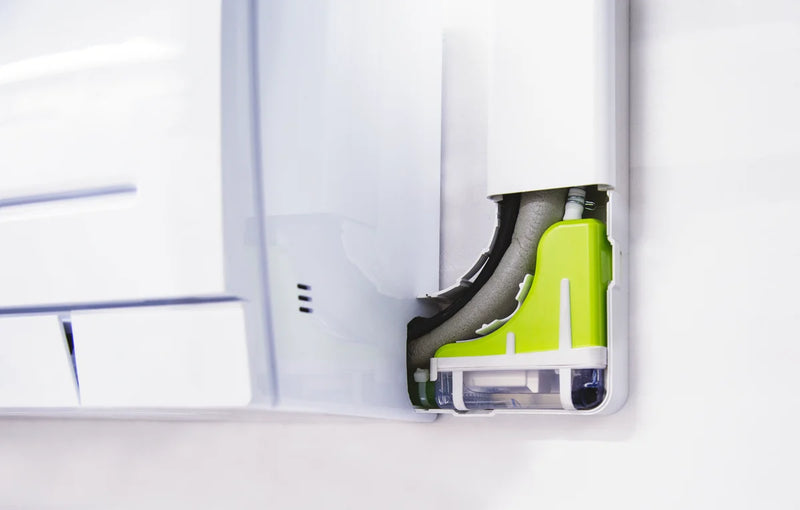

Aspen Silent+ Mini Lime Condensate Pump with S-Ducting – White

The Aspen Silent+ Mini Lime condensate pump with white S-ducting is designed for high-wall split air conditioning systems. With noise levels as low as 16 dB(A), it removes condensate while keeping operating noise low.

The fifth-generation Mini Lime offers flexible left- or right-hand installation and compatibility with popular trunking systems, making it suitable for installations where space and appearance matter.

Key features

• Backwards-compatible plug-and-play cable
• Fits popular trunking systems
• Installation without a separate damper or anti-siphon device
• Maximum flow rate of 40 litres per hour at zero head
• Suitable for high-wall split systems up to 46 kW / 157,000 BTU/h
• Supplied with white S-ducting

Specifications

• Product code: FP3320/5
• Maximum flow rate: 40 L/h at 0 m head
• Maximum recommended head: 15 m
• Power supply: 100–250 V AC, 50/60 Hz
• Current: 0.18 A
• Power consumption: 2.1 W
• Alarm contact: 5.0 A, normally closed (N.C.)
• Noise level: as low as 16 dB(A)
• Discharge connection: 6 mm internal diameter
• Maximum water temperature: 40°C
