Click Mode 1G 35mm Deep Pattress Box UK

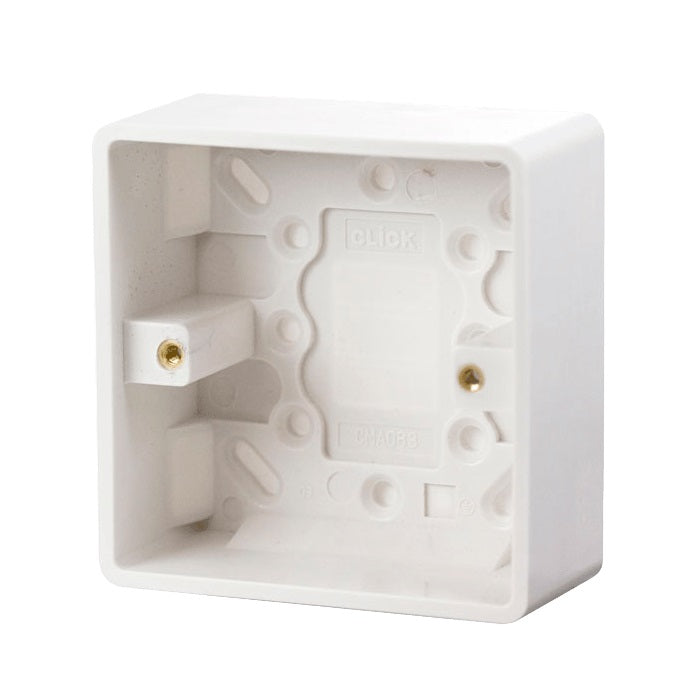

The Click Mode 1G 35mm Deep Pattress Box (CMA083) is a premium white moulded back box designed for mounting single-gang electrical accessories. Part of the Click Mode smooth profile range, this pattress box combines contemporary styling with practical functionality for modern electrical installations.

Technical Specifications:

• Model: CMA083
• Dimensions: 87mm(W) x 87mm(H) x 40mm(D)
• Gang size: 1 gang (single)
• Mounting depth: 35mm (effective working depth)
• Material: White moulded PVC
• Profile: Smooth contemporary design
• Colour: Polar white finish
• Fixing centres: 60.3mm standard
• Operating temperature: -5°C to +40°C
• Knockouts - Top: 2 x 15mm x 15mm
• Knockouts - Bottom: 3 x 15mm x 15mm
• Knockouts - Sides: 2 x 15mm x 15mm each side
• Knockouts - Rear: 22mm x 27.5mm
• Features: Fixed brass lugs, antiviral & antibacterial certified
