WAGO 5 CONNECTOR 2.5MM GREY - Box of 40Pcs

by Wago
Original price £21.99 - Original price £21.99
Original price
£21.99
£21.99 - £21.99
Current price £21.99

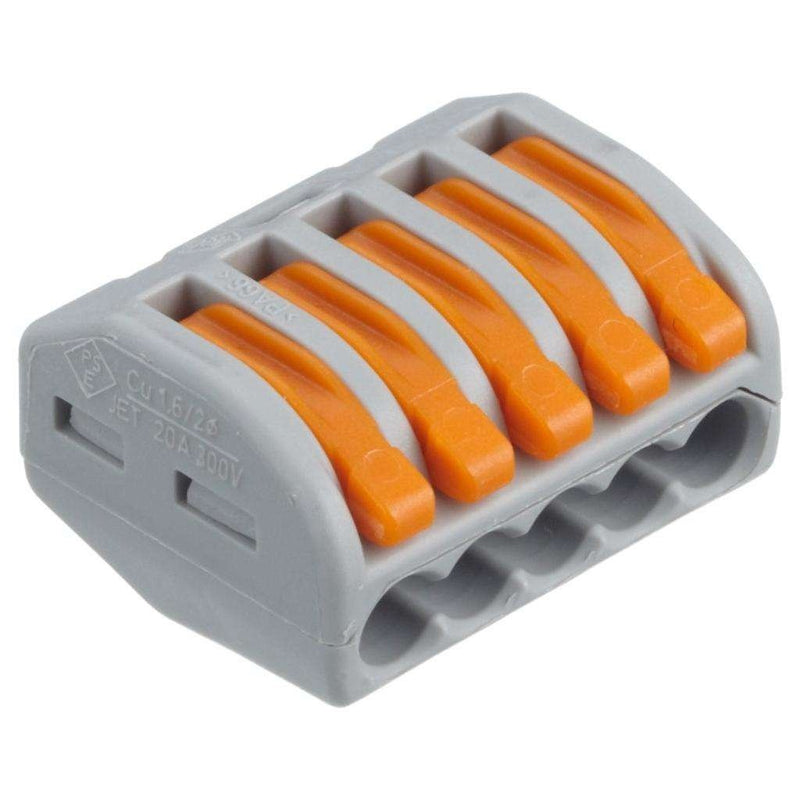

Wago 222-415 50PC Compact Splicing Connector 5 Way Conductor Terminal Block

  • Protection against electrical shock, touch-safe.
  • Combination of different wire sizes and types in one connector.
  • 12 to 28 AWG solid/stranded conductor.
  • Clearly organized wiring in control cabinets and junction boxes.
  • 4kV rated impulse voltage.

Wago 222-415 is a 5 conductor terminal block with a cage clamp connection. This connector allows for solid, stranded, and fine stranded cables to be connected together without the need for any tools. This terminal block is suitable for wire sizes ranging from 12 to 28 AWG.

Features:

  • 5 Way Compact splicing connector.
  • Number of connection points: 5.
  • Copper connectable conductor materials.
  • Side-entry wire type.
  • Low installed cost and safe operation.
  • Fast and easy to use.
  • Permanent, secure connections.
  • Plastic Construction.
  • Suitable for cables 0.14mm² to 4mm².
  • Rated Voltage: 400V.
  • Current Rating: 20A.
  • Rated Surge Voltage: 4kV.
  • Color: Gray.
  • Maximum Operating Temperature: 105°C.
  • Ratings per EN60664.
  • Stranded conductor: 28 to 12 AWG.
  • Fine-stranded: 28 to 12 AWG.
  • H x W x D: 0.57inch x 0.49inch x 0.81inch.
