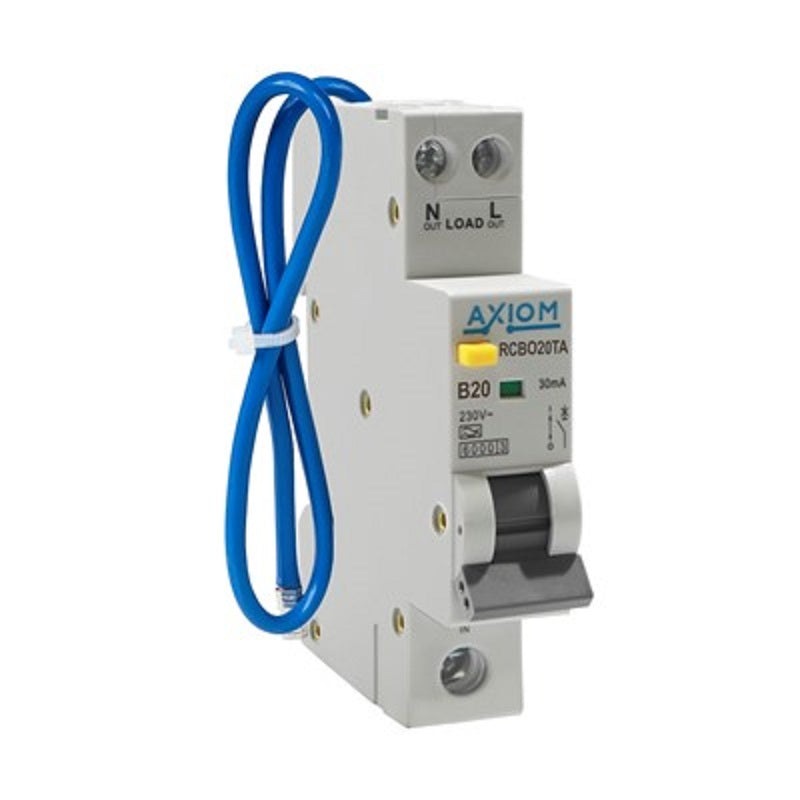

AXIOM RCBO 20Amp S.P 1 Module Type A Mini

Compact single-module RCBO (Residual Current Breaker with Overload protection) providing both overload and earth leakage protection in one device. Ideal for domestic and commercial installations where space is limited in consumer units.

• Current rating: 20A, Type B curve
• Sensitivity: 30mA (Type A)
• Configuration: Single pole + neutral (1P+N)
• Compact size: 17.8 x 90mm, 1 module width
• Rated voltage: 230-240V AC, 50/60Hz
• Breaking capacity: 6kA
• Terminal capacity: Up to 25mm²
• Body material: Acrylic with grey finish
• IP rating: IP120
• Standards: IEC/EN 61009 compliant
• CE marked and RoHS approved
• Weight: 0.159kg
• Applications: Domestic and commercial use
• 1 year warranty
