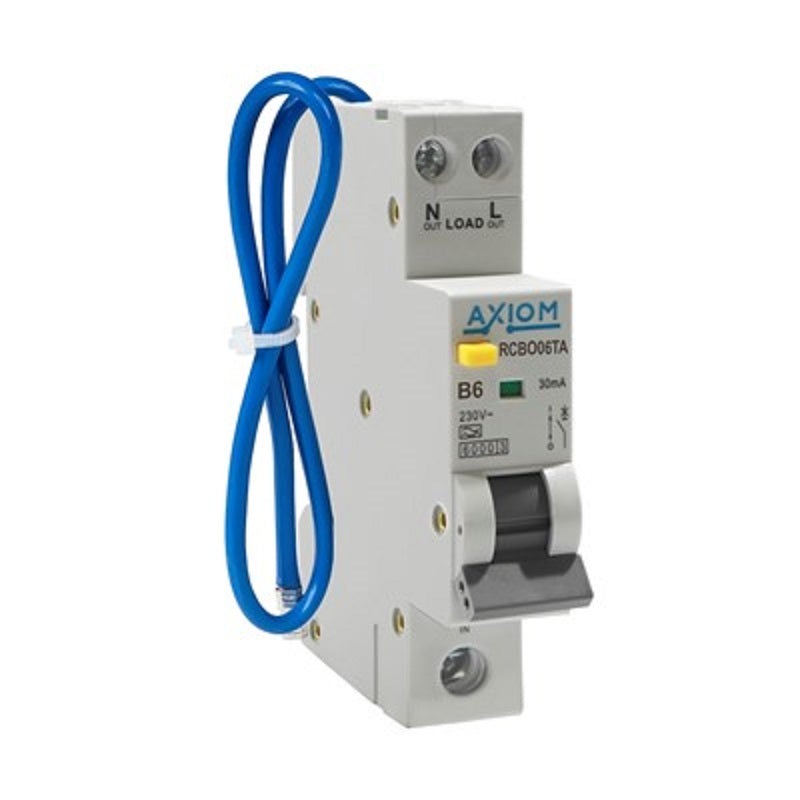

AXIOM RCBO 6Amp S.P 1 Module Type A Mini

Professional AXIOM 6A single pole mini RCBO providing combined overload, short circuit and earth leakage protection in a compact 1-module design. Type A sensitivity for enhanced protection against DC residual current components.

• 6A current rating, 30mA RCD sensitivity
• Single pole + neutral (1P+N) configuration
• Compact 1-module width (17.8mm x 90mm)
• Type A RCD for DC fault detection
• 6kA breaking capacity (Type B characteristic)
• 230-240V AC 50/60Hz operation
• Terminal capacity up to 25mm²
• CE marked, RoHS compliant, IEC/EN 61009
