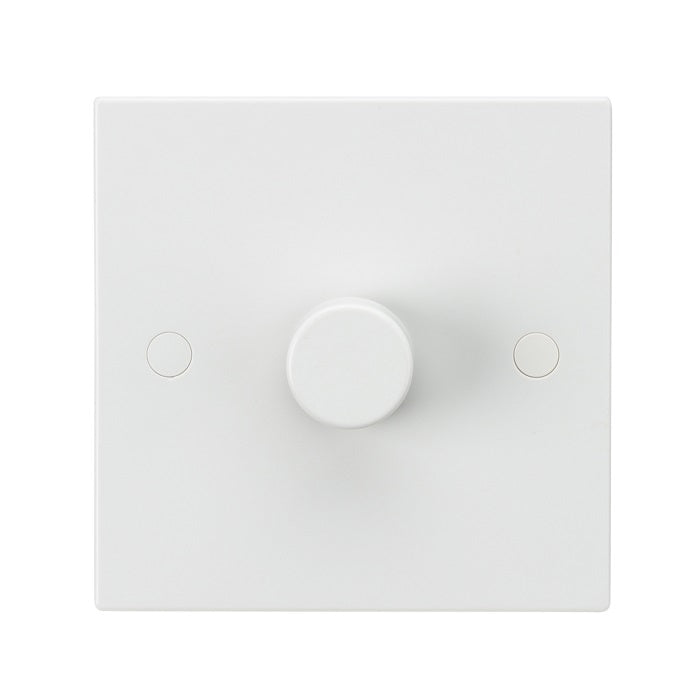

Knightsbridge SN2161 1G Leading-Edge Dimmer – 3–100W LED, White
The Knightsbridge SN2161 is a white Square Edge one-gang two-way leading-edge dimmer with rotary dimming, push on/off operation and screw-cap covers.
- Model: SN2161
- LED load: 3–100W, subject to lamp-manufacturer compatibility
- Incandescent load: 40–400W
- Supply: 230 V, 50 Hz
- Construction: white thermoset resin
- Dimensions: 86 mm high × 86 mm wide; 46.8 mm overall depth
- Total projection / recessed depth: 26.5 mm / 20.3 mm
- Plate depth: 9 mm; the knob adds 17.5 mm to the projection shown in the drawing
- Current datasheet minimum mounting-box depth: 25 mm; confirm actual unit depth and wiring space before fitting
- Terminal capacity: 2 × 1.0 mm² or 2 × 1.5 mm²
- Accessory earth terminal: no
- Protection: IP20, indoor use
- Manufacturer-listed standard: BS EN 60669-2-1
- EAN: 5055832953562
Lamp and circuit compatibility: check the LED lamp manufacturer's dimmer compatibility and the permitted load range. Do not mix incandescent and LED loads. For two-way switching, use one dimmer with a conventional two-way switch; the manufacturer instructions do not permit dimming from two dimmers on the same circuit.
Follow the manufacturer instructions and verify that the supply is isolated before work. Disconnect the dimmer before high-voltage or insulation-resistance testing.
Manufacturer dimensions
View the full-size SN2161 manufacturer drawing
Manufacturer documents
The current datasheet lists a two-year manufacturer warranty for this dimmer, subject to the manufacturer's applicable installation and use terms.
