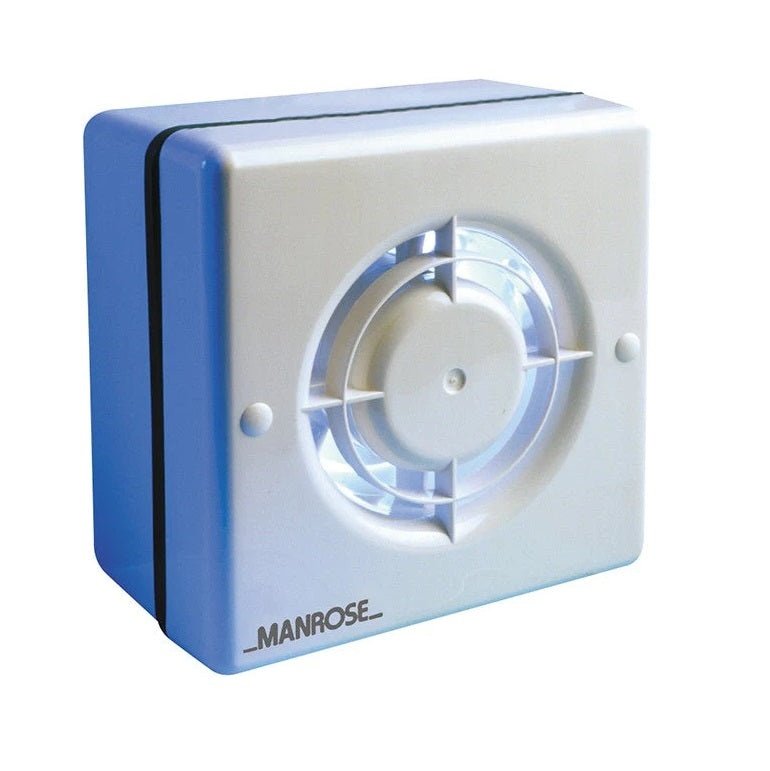

Manrose WF100P 4" 100mm Axial Extractor Window Fan Humidity

WF100 series window extractor fans are designed for window mounting through a standard 115 - 155mm diameter hole in 4mm - 10mm thick glass.

This comprehensive range of 4" fans from Manrose have been designed for Wall, Ceiling or Window mounting for use in bathrooms, toilets or kitchens. Quiet and efficient the 100mm (4") series has an impressive extract rate of 85m³/hr, 23 litres per second. The units are are all manufactured using high ABS thermoplastics for strength, durability, aesthetics and easy cleaning. WF100 Series designed for window mounting through a standard 115-155mm hole.

• Single phase consuming 15 Watts
• Designed for wall, ceiling or window mounting, this comprehensive range offers a wide selection of models for use in bathrooms and toilets
• Quiet and efficient, the 100mm (4") series has an impressive extract rate of 85m³/hr, 23 litres per second, and is available in the eleven options detailed opposite
• The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning
• Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance- free life
• Designed to comply with the Building Regulations on Ventilation (F1)
• Mounting: Wall
• Noise: 41.0 dB(A)
• Hole Size: 4"
• Type of Extractor: Axial
• Number of Speeds: 1
• Extraction Rate: 23 litres per second
• XF/WF100 Series 85m3/hr, 23 l/s
• 100mm (4")
• Maximum pressure: 20 p.a.
• Fan speed: 2400 r.p.m.
• Maximum operating temperature: 40ºC.
• Dimensions: Height: 163mm x Width: 163mm x Depth: 90mm

Criteria

• Application: Bathroom
• Warranty: 5 Years
• Wattage: 15
• Voltage: 220-240V - AC. 50Hz
• Width: 163
• Height: 163
• Colour: White
• Manufacturer Code: WF100H
