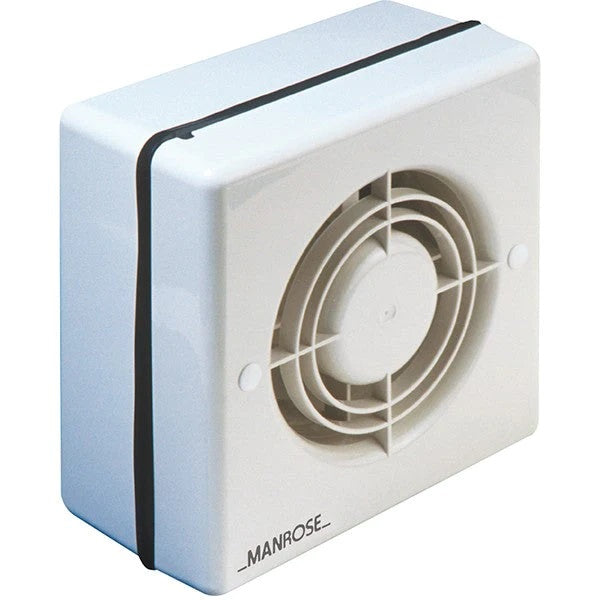

Manrose 5" 120mm Window/Wall Extractor Fan

The Manrose 120mm Extractor Fan is designed for larger bathrooms, toilets, cloakrooms and medium sized rooms, the 120mm (5") series of fans are 56% more powerful than their 100mm (4") counterparts, yet only 10% larger in surface area. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor. WF120 Series is designed for window mounting through a standard 140mm - 150mm hole.

 Features:

• Noise: 41.0 dB(A)
• Hole Size: 5"
• Type of Extractor: Axial
• Number of Speeds: 1
• 120mm (5")
• Maximum pressure: 35 p.a.
• Fan speed: 2000 r.p.m.
• Maximum operating temperature: 40ºC
• Single phase consuming 15.5 Watts
• Designed for wall, ceiling or window mounting, the efficient range of axial flow extractor fans are available in eleven options
• Quiet in operation, easy to install and possess the latest design technology
• The extract rate is 130m3/hr, 36 litres per second
• Power is provided by a single phase induction motor with pre-oiled bearings fitted for a long, maintenance free life
• Manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning
• The 120mm (5") series complies with the Building Regulations on Ventilation (F1)
