Knightsbridge CU4101 10AX 4G 2-Way Switch – White Single Plate
Original price
£7.46
-
Original price
£7.46
Original price
£7.46
£7.46
-
£7.46
Current price
£7.46

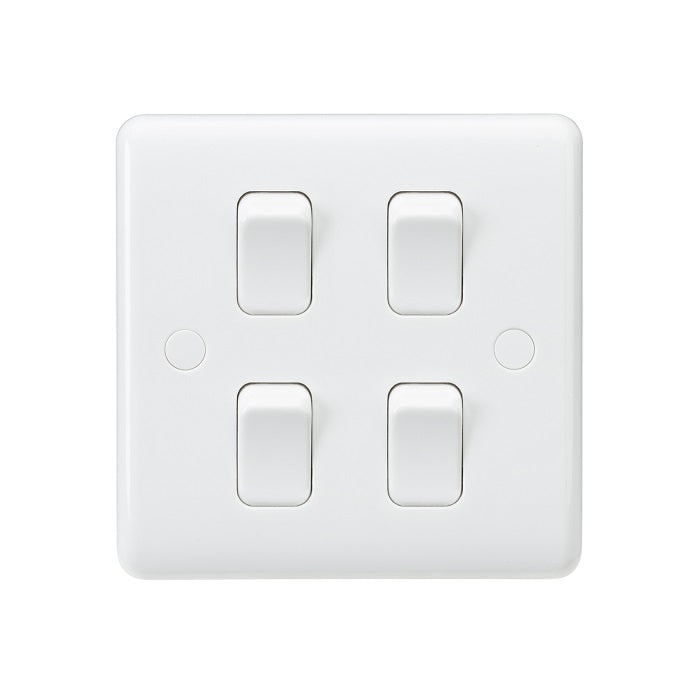

The Knightsbridge CU4101 is a white curved-edge 10AX, four-gang 2-way switch with four rockers arranged on one 86mm square plate. Screw cap covers are included.
Product details
- Manufacturer model: CU4101
- Rating: 10AX; supply: 230V 50Hz
- Four-gang, 2-way switching on a single plate
- White thermoset-resin construction with rounded edges
- Plate dimensions: 86mm high × 86mm wide
- Current datasheet dimensions: 31.2mm overall depth, 10.8mm projection and 20.4mm recessed depth
- Minimum mounting box depth: 25mm
- Terminal capacity: 2 × 1.0mm² or 2 × 1.5mm²
- IP20; indoor use only
- Manufacturer-stated standard: BS EN 60669-1
Manufacturer drawing
The drawing labels 27mm to the back base, while the current datasheet lists 31.2mm overall depth. Check the actual unit and available mounting space before fitting.
Manufacturer documents
The manufacturer links this general wiring-accessories instruction sheet for CU4101. Read the full instructions and the actual unit's terminal markings, and isolate the supply before installation.
