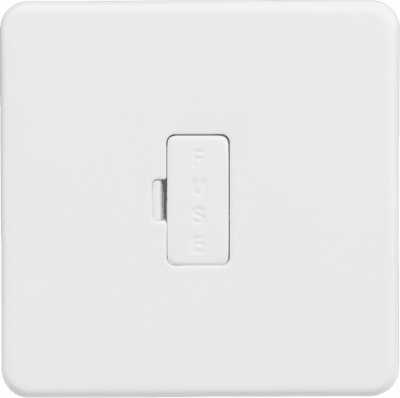

Knightsbridge SN6000 13A Fused Spur Unit – White Square Edge

The Knightsbridge SN6000 is a white 13A fused spur unit with a square-edge plate, front fuse carrier and flex outlet from the base. Screw cap covers are included.

Product details

• Manufacturer model: SN6000
• Unit rating: 13A; supply: 230V 50Hz
• White thermoset-resin construction
• Plate dimensions: 86mm high × 86mm wide
• Overall depth: 25.3mm; projection: 9mm; recessed depth: 16.3mm
• Fixing centres: 60.3mm
• Minimum mounting box depth: 25mm
• Earth terminal provided
• Terminal capacity: 3 × 2.5mm² or 2 × 4.0mm²
• IP20; indoor use only

Check the fitted fuse rating on the actual unit before installation and ensure it is suitable for the connected appliance.

Manufacturer drawing

Manufacturer documents

• SN6000 manufacturer datasheet (PDF)
• Manufacturer wiring-accessories instructions (PDF)

The manufacturer links this general wiring-accessories sheet for SN6000. Read the full instructions and the actual unit's terminal markings, and isolate the supply before installation.

The manufacturer's summary page lists BS 1363-2, while its SN6000 datasheet lists BS 1363-4. Confirm the markings and documentation supplied with the actual unit.
