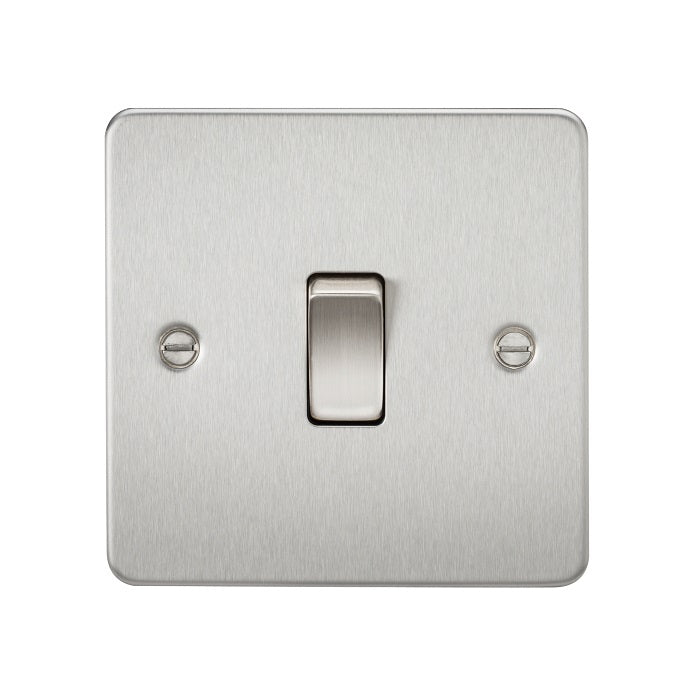

Knightsbridge FP2000BC 10AX 1G 2-Way Switch – Brushed Chrome

The Knightsbridge FP2000BC is a brushed-chrome FlatPlate 10AX one-gang two-way light switch, with a matching metal rocker, visible fixing screws and a built-in gasket.

• Model: FP2000BC
• Rating: 10AX, 230 V, 50 Hz
• Function: two-way switching
• Construction: 201 stainless steel
• Finish: brushed chrome
• Plate size: 87.5 mm high × 87.5 mm wide
• Current datasheet dimensions: 21.5 mm overall depth; 6.5 mm total projection; 14.8 mm recessed depth
• Plate thickness: 2.5 mm; the rocker adds 4.0 mm to the projection shown in the drawing
• Minimum mounting-box depth: 16 mm
• Electrical class: Class I; earth connection required
• Terminal capacity: 2 × 1.0 mm² or 2 × 1.5 mm²
• Protection: IP20, indoor use
• Manufacturer-listed standard: BS EN 60669-1
• EAN: 5055832917083

Dimension note: the current datasheet lists 14.8 mm recessed depth, while the manufacturer-linked drawing shows 15.0 mm. The supplied unit's depth and installation fit have not been physically checked. Confirm the mounting box and wiring space before fitting.

Follow the manufacturer instructions, provide the required earth connection and verify that the supply is isolated before work. The gasket does not change the IP20 rating.

Manufacturer dimensions

View the full-size manufacturer drawing for FP2000BC

Manufacturer documents

• FP2000BC manufacturer datasheet (PDF)
• Manufacturer wiring-accessories instructions — DCAUG22 V3 (PDF)

The current datasheet lists a 25-year manufacturer warranty, subject to the manufacturer's applicable installation and use terms.
