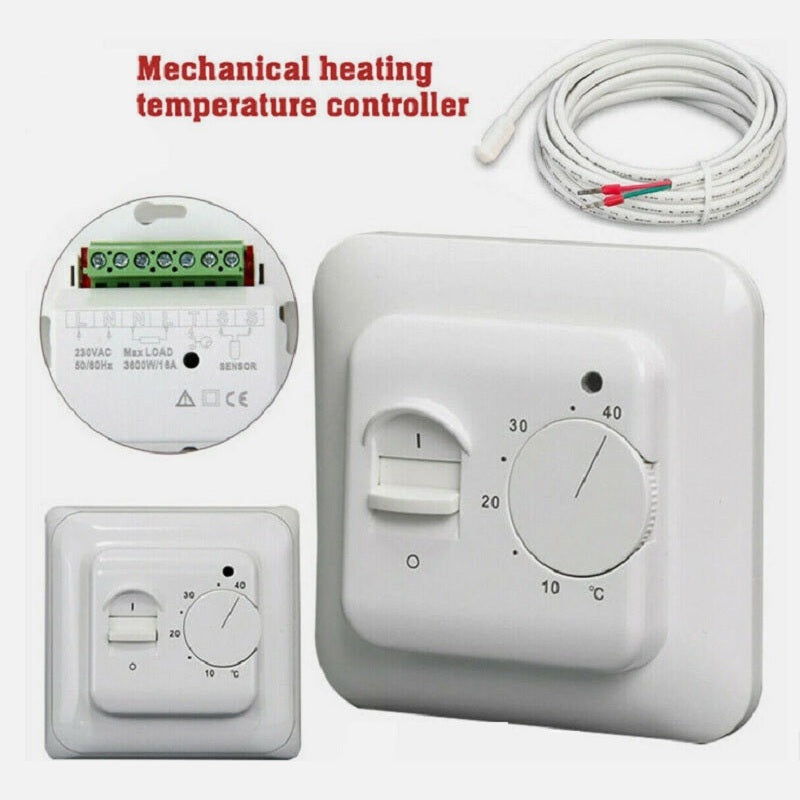

16A Electric UnderFloor Heating Thermostat Control

Features:

It controls the temperature with an NTC sensor placed externally.

With 10K NTC sensor, additional 3m sensor cable included.

With manual switch and knob for easy operation.

Can fit into a standard single switch backbox.

LED indicator is light when heating is on.

With manual switch and knob for easy operation.

Full Installation and Operation Instructions Included.

Specifications:

-Power supply: 220V 50/60HZ

-Power consumption: 5W

-Max. Current: 16A

-Adjusting range: 0℃~40℃

-Differential per. tem.: ± 1 ℃

-Operating temperature: -5℃~60℃

-Degree of protection: IP20

-Housing material: self-extinguishing Polycarbonate(PC)

-Floor sensor: NTC sensor 3m

-Dimension: 86mm x 86mm x 49mm

Package Included:

1 x Manual thermostat

1 x 3 meter sensor cable

2 x Mounting screws

1 x English user manual
