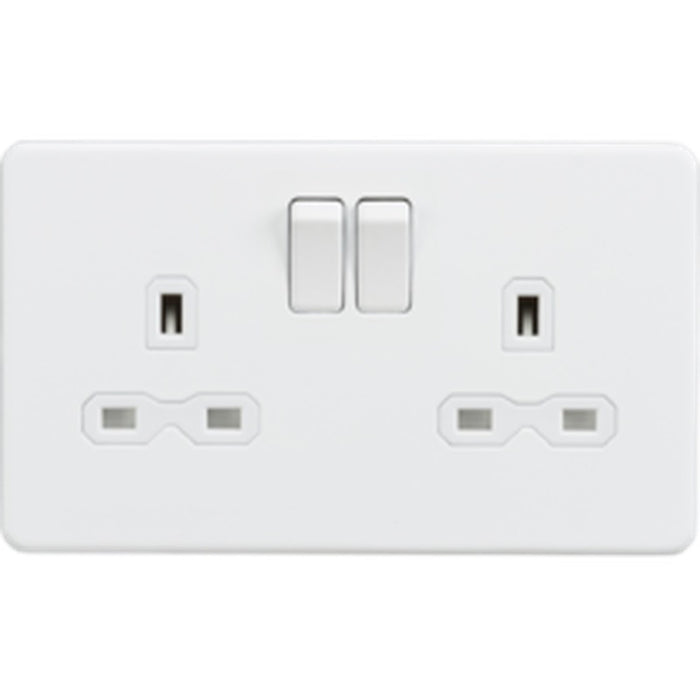

The Knightsbridge SN9000 is a white Square Edge 13A two-gang double-pole switched socket with twin earth terminals. It has top-access captive terminals and screw-cap covers. The manufacturer lists ASTA approval, licence 1412.
- Model: SN9000
- Rating: 13A, 230 V, 50 Hz
- Switching: double pole
- Construction: white thermoset resin
- Dimensions: 86 mm high × 146 mm wide; 31.6 mm overall depth
- Total projection / recessed depth: 13.7 mm / 17.9 mm
- Plate depth: 9 mm; the rockers add 4.7 mm to the projection shown in the drawing
- Minimum mounting-box depth: 25 mm
- Terminal capacity: 3 × 2.5 mm² or 2 × 4.0 mm²
- Protection: IP20, indoor use
- Manufacturer-listed standard: BS 1363-2
- EAN: 5055832952862
Check the mounting box, wiring space and installation conditions before fitting. Installation must follow the manufacturer instructions; verify that the supply is isolated before work.
Manufacturer dimensions
View the full-size SN9000 manufacturer drawing
Manufacturer documents
The current datasheet lists a 25-year manufacturer warranty, subject to the manufacturer's applicable installation and use terms.
