Knightsbridge CU9000S 13A 2G SP Socket with Twin Earths – White
Original price
£4.19
-
Original price
£4.19
Original price
£4.19
£4.19
-
£4.19
Current price
£4.19

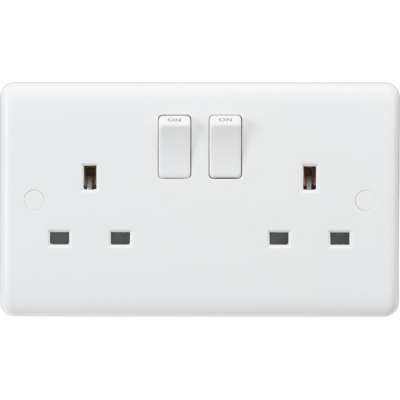

The Knightsbridge CU9000S is a white Curved Edge two-gang 13A single-pole switched socket with twin earth terminals. It has top access to captive terminals and includes screw-cap covers.
- Model: CU9000S
- Configuration: 2-gang switched socket, single-pole switches
- Rating: 13A, 230 V, 50 Hz
- Dimensions: 146 mm wide × 86 mm high; 31.3 mm overall depth
- Total projection / recessed depth: 11.4 mm / 19.9 mm
- Plate depth: 7 mm; the rocker adds 4.4 mm to the projection shown in the drawing
- Minimum mounting-box depth: 25 mm
- Construction: white thermoset resin
- Earth connections: twin earth terminals
- Terminal capacity: 3 × 2.5 mm² or 2 × 4.0 mm²
- Protection: IP20, indoor use
- Manufacturer-listed standard: BS 1363-2
- EAN: 5055832972235
The manufacturer describes this exact model as ASTA approved under licence 1412 and states that its anti-microbial properties were third-party tested to ISO 22196:2011. Follow the manufacturer instructions and check the circuit, earthing and available wiring space before fitting.
Manufacturer dimensions
View the full-size CU9000S manufacturer drawing
Manufacturer documents
The current datasheet lists a 25-year manufacturer warranty, subject to the manufacturer's applicable installation and use terms.
