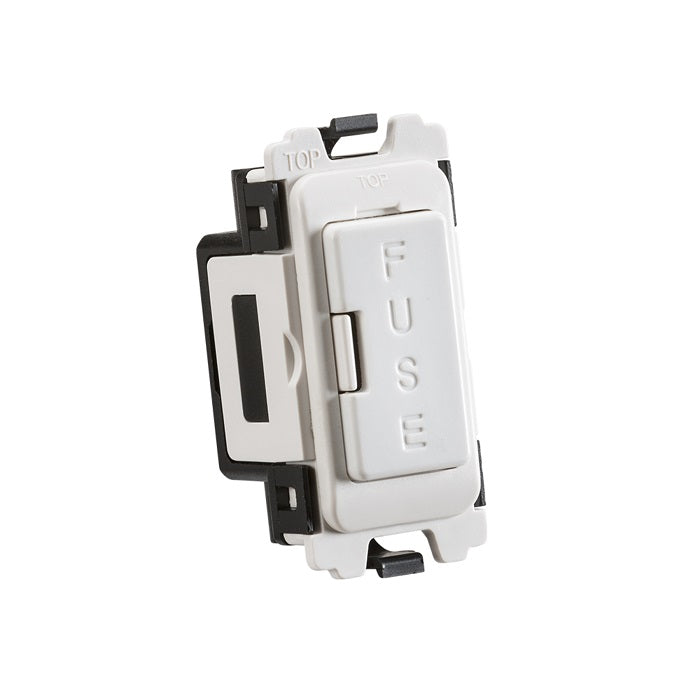

Knightsbridge CUGM15 13A Fuse Holder Module – White Curved Grid
The Knightsbridge CUGM15 is a white, front-mounting 13 A fuse-holder module for appliance-protection circuits in the Knightsbridge Curved Grid system only. The manufacturer specifies a replaceable 13 A fuse. A suitable grid frame and front plate are required separately.
- Model: CUGM15
- Rating: 13 A, 230 V, 50 Hz
- Current datasheet dimensions: 55 mm high × 25 mm wide × 25 mm deep
- Minimum mounting-box depth: 35 mm
- Terminal capacity: 3 × 2.5 mm² or 2 × 4.0 mm²
- Construction: white thermoset resin
- Protection: IP20, indoor use
- Manufacturer-listed standard: BS 1363-4
- EAN: 5055832985068
This Curved Grid module is not compatible with the manufacturer's Screwless, Flat Plate or Decorative Grid ranges. Check the actual fitted fuse, unit markings and circuit requirements before installation or fuse replacement.
Document differences: the current datasheet lists 55 mm height and 25 mm depth; the linked drawing labels 54.4 mm height and 25.5 mm depth. Confirm the supplied unit where exact fit matters. The current datasheet lists a 25-year warranty, while the older range booklet states 15 years; confirm the terms applicable to the supplied unit.
Manufacturer dimensions
View the full-size CUGM15 manufacturer drawing
Manufacturer documents
