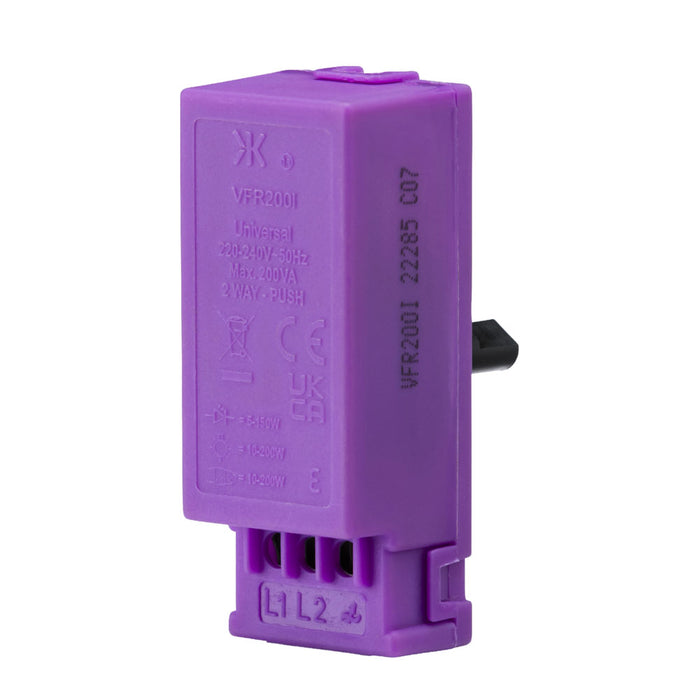

2-Way Push On-Off Intelligent Module Dimmer 5-150w
2-Way Intelligent Module Dimmer 5–150W
Take full control of your lighting with this 2-Way Intelligent Module Dimmer, rated for 5–150W loads. Designed to fit behind existing switches, this module upgrades standard 2-way circuits to dimmable without the need to replace your faceplates.
- Load range: 5–150W (LED & Halogen)
- 2-way compatible — works with existing switch configurations
- Intelligent module design — fits neatly behind your current switch plate
- Leading edge or trailing edge option
- Requires 25mm back box
- Captive terminal screws
- Suitable for mains voltage lighting (230V)
- Current & thermal overload protection
- Anti-flicker technology
- Inrush current limiter (ICL)
- Rotary action with push on/off
- Trimming function
- Easy retrofit installation
Ideal for living rooms, bedrooms, and hallways where ambience and energy savings matter. Order online at apmi.uk with fast delivery across London and the UK.
| Specification | |
|---|---|
| Brand | Knightsbridge |
| Model No. | VFR200I |
| Product Type | Intelligent Dimmer Module |
| No. of Ways | 2-Way |
| Number of Gangs | 1 Gang |
| Dimmer Switch Operation | Rotary |
| On/Off Switch Operation | Push |
| Waveform | Leading Edge or Trailing Edge |
| Power Voltage Supply | 230V |
| Min. Dimmable Load (LED) | 5W |
| Max. Dimmable Load (LED) | 150W |
| Min. Dimmable Load (Halogen) | 10W |
| Max. Dimmable Load (Halogen) | 150W |
| Min. Dimmable Load (Incandescent) | 10W |
| Max. Dimmable Load (Incandescent) | 200W |
| Fluorescent Compatibility | Not Compatible |
| Overload Protection | Current & Thermal |
| Terminal Capacity | Up to 3 × 1.5mm² cables |
| Terminal Description | Captive Terminal Screws |
| Modular or Grid | Modular |
| Fixings Supplied | Not Supplied |
| Smart Compatibility | Not Smart |
| Manufacturer Guarantee | 2 Years (T&Cs Apply) |
| Advisory Notice | Electronic dimmable transformer required for low voltage halogen bulbs (230V to 12V) |
| Manufacturer | ML Accessories Limited |
