Knightsbridge CUGM10 20AX DP Key Switch Module – EMG LTG TEST

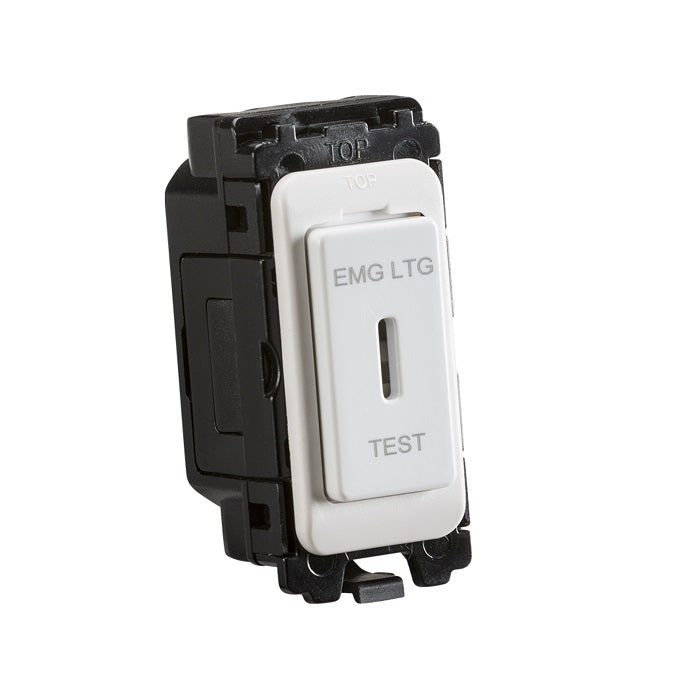

The Knightsbridge CUGM10 is a white, double-pole key-operated switch module marked “EMG LTG TEST”. It is rated at 20AX and designed for the Knightsbridge Curved Grid system. A key is included.

• Manufacturer model: CUGM10
• EAN: 5055832984894
• Switch function: one-way key switch, double pole
• Rating: 20AX, 230V, 50Hz
• Mounting: front-mounting grid module
• Nominal dimensions: 55 mm high × 25 mm wide × 25 mm deep, as listed in the current manufacturer datasheet
• Minimum mounting-box depth: 35 mm
• Terminal capacity: 3 × 2.5 mm² or 2 × 4.0 mm²
• Material: white thermoset resin
• Protection: IP20, for indoor use

Check the grid system: this module is for the Knightsbridge Curved Grid system only. The manufacturer states that Curved Grid products are not compatible with its Screwless, Flat Plate or Decorative Grid ranges. A suitable mounting frame and front plate are required separately.

Manufacturer documents

• CUGM10 manufacturer datasheet (PDF)
• Curved Edge Grid installation and maintenance instructions (PDF)

Read the instructions before fitting. Isolate the supply before installation or maintenance, and use a qualified electrician where required. Circuit design and suitability must be checked for the intended installation.
