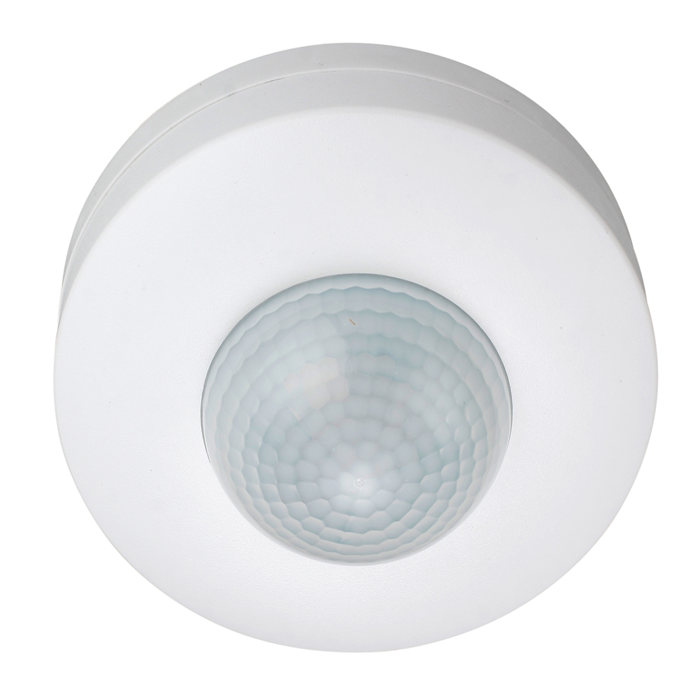

360 CELING 12M PIR IP20 WHITE

Product Features
Adjustable lux level
Reliable uninterrupted all-round protection of covered area
Time and twilight threshold infinitely variable at control dials
Wall mountable with motion detection capacity up to 360° of covered area.

Technical Information
Wattage (W) 0.5
Ambient Light <3-2000Lux (adjustable)
Applications Domestic and commercial applications
Approvals/Certifications CE ,ROHS
Body Material Polycarbonate
Class I
Cut-Hole Ø (mm) n/a
Detection Distance (m) Max.12
Detection Motion Speed 0.6-1.5m/s
Detection Range 360°
Frequency (Hz) 50/60
Ingress Protection (IP) IP20
Input Voltage (v) 220-240
Installation Height (Meters) 1.5-3.5
Product Colour/Finish White
Relay Rating 6A
Sensor Range (Mtrs / °) Max 12mtrs
Time Delay 10sec± to 15min± (adjustable)
Warranty Period (Years) 5
Dimensions (mm) 76*87
Barcode 5027825201141
