360 CORNER PIR 12M BLACK
Original price
£12.59
-
Original price
£12.59
Original price
£12.59
£12.59
-
£12.59
Current price
£12.59
Product Summary

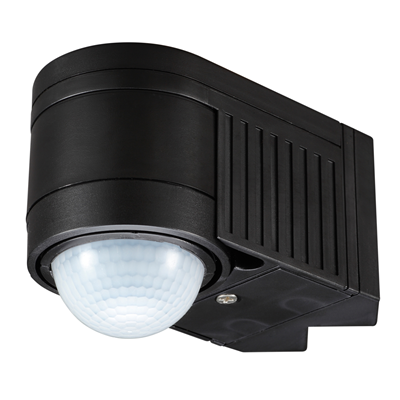

This 360° Wall Mount Corner Infrared Motion Detector combines the latest sensor technology and modern design to create a well-balanced unit. The motion detector is equipped with two highly sensitive infrared detectors positioned at a specific angle to each other. Reliable, uninterrupted all-round protection of areas as large as 180°. Suitable for outdoor and indoor, front of large buildings, driveways, gardens and courtyards as well as for corridors or basements. Reach of the motion sensor can be set to a maximum of 12 m or 5 m by turning the multi lens. The shrouds provided can also be used for limiting the detection zone and matching it to the specific situation. Time and twilight threshold can be infinitely varied at control dials. A corner wall mount is included for easy corner mounting
Technical Specification
| General Information | |
| Ambient Light | <3-2000Lux (adjustable) |
| Applications | Domestic, commercial applications |
| Approvals/Certifications | CE, ROHS |
| Barcode | 5027825201196 |
| Body material | PC(UV proof) |
| Class | I |
| Cut-Hole Ø (mm) | n/a |
| Detection Distance (M) | Max.12 |
| Detection Motion Speed | 0.6-1.5m/s |
| Detection Range | 360° |
| Dimensions (mm) | 119*60*80 |
| Frequency (Hz) | 50/60 |
| Ingress Protection (IP) | IP44 |
| Input Voltage (V) | 220-240 |
| Installation Height (Meters) | 1.8 - 2.5 |
| Product Colour/Finish | Black |
| Relay Rating | 6A |
| Sensor Range (Mtrs / °) | Max 12mtrs |
| Time Delay | 10sec± 3sec to 15min±2min (adjustable) |
| Warranty Period (Years) | 5 |
| Wattage (W) | 0.5 |
| Weight (g) | 600 |
