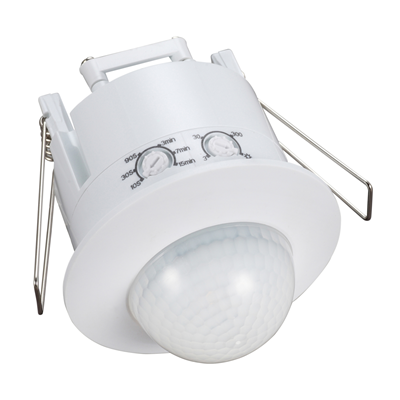

360 RECESSED 12M PIR IP20 WHITE
Original price
£8.93
-
Original price
£8.93
Original price
£8.93
£8.93
-
£8.93
Current price
£8.93
Product Summary
The White 360°/12m recessed mount PIR combines the latest sensor technology and modern design to create a well-balanced unit. The motion detector is equipped with two highly sensitive infrared detectors positioned at a specific angle to each other. Reliable, uninterrupted all-round 360° protection. Suitable for outdoor and indoor, front of large buildings, driveways, gardens and courtyards as well as for corridors or basements. Reach of the motion sensor can be set to a maximum of 12m by turning the multi lens. Time and twilight threshold can be infinitely varied at control dials.
Technical Specification
| General Information | |
| Ambient Light | <3-2000Lux (adjustable) |
| Applications | Domestic and commercial applications |
| Approvals/Certifications | CE ,ROHS |
| Barcode | 5027825200847 |
| Body material | Poly-carbonate |
| Class | I |
| Cut-Hole Ø (mm) | 62-65 |
| Detection Distance (M) | Max.12 |
| Detection Motion Speed | 0.6-1.5m/s |
| Detection Range | 360° |
| Dimensions (mm) | Ø76*87 |
| Frequency (Hz) | 50/60 |
| Ingress Protection (IP) | IP20 |
| Input Voltage (V) | 220-240 |
| Installation Height (Meters) | 1.5-3.5 |
| Product Colour/Finish | White |
| Relay Rating | 6A |
| Sensor Range (Mtrs / °) | Max 12mtrs |
| Time Delay | 10sec± to 15min± (adjustable) |
| Warranty Period (Years) | 5 |
| Wattage (W) | 0.5 |
| Weight (g) | 500 |
