ASCO 2-Port Solenoid Valve 15mm Compression — SCXH210G202BW 6V DC WRAS Approved

ASCO 2-Port Solenoid Valve 15mm — SCXH210G202BW

Genuine ASCO (Emerson) 2/2 normally-closed solenoid valve with 15mm compression fittings and WRAS approval for potable water applications. Brass body construction with EPDM seals.

Specifications

• Manufacturer: ASCO (Emerson)

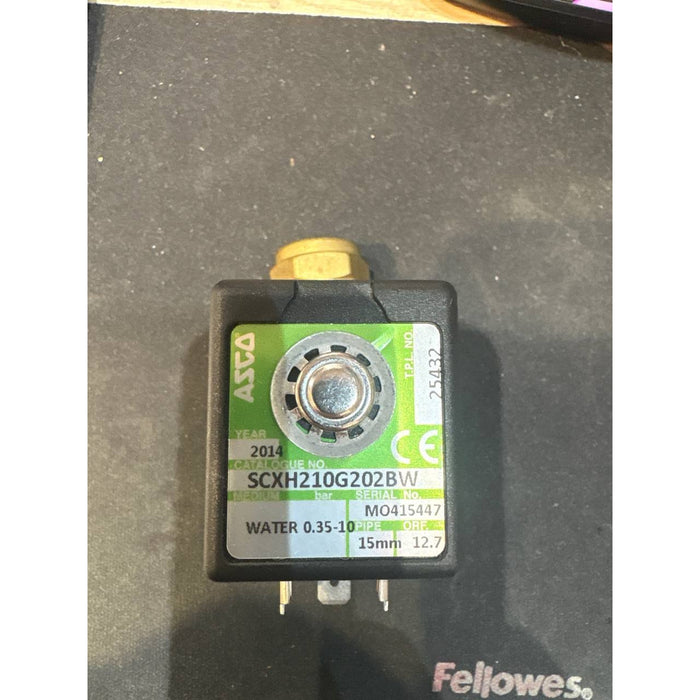

• Model: SCXH210G202BW
• Also known as: X210525720102E7
• Type: 2/2 Normally Closed, Pressure Assisted Latching

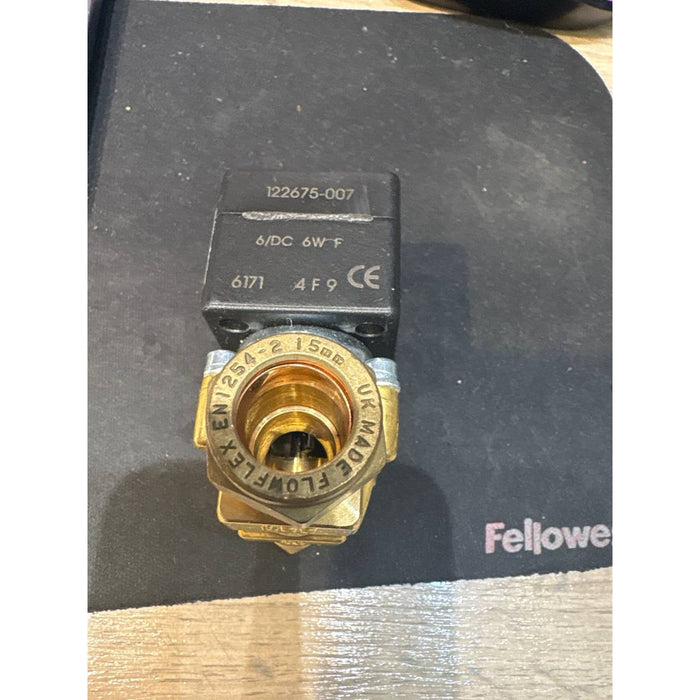

• Pipe Size: 15mm compression (Flowflex EN1254-2)
• Orifice: 12.7mm

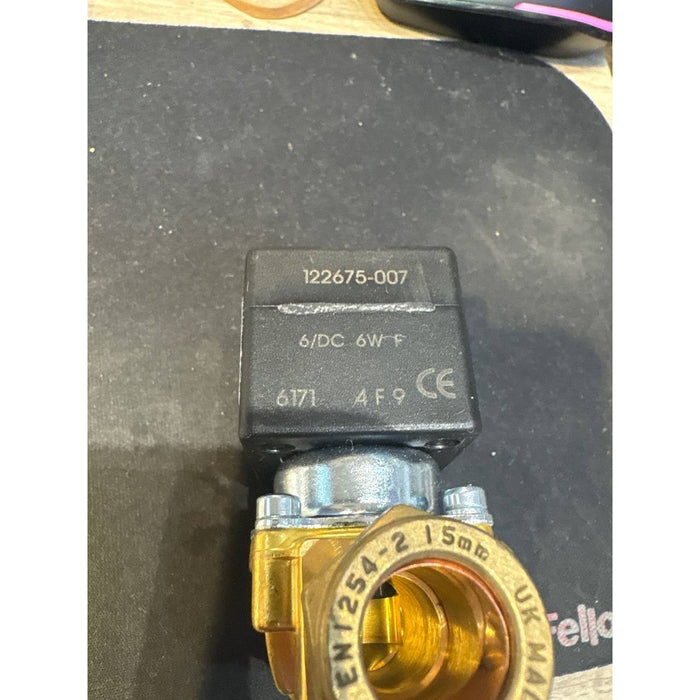

• Coil: 6V DC, 6W (Part: 122675-007)
• Pressure Range: 0.35 – 10 Bar
• Body Material: Brass
• Seals: EPDM (ethylene propylene elastomers)
• Approvals: WRAS Approved, CE Marked, IP65
• Medium: Water (oil-free systems only)
• Made in: UK 🇬🇧

Applications

Commonly used in commercial washroom and urinal flushing systems, water management, building services and HVAC applications. Covered by PED (Pressure Equipment Directive) 97/23/EC for Group 1 and 2 fluids.

Important

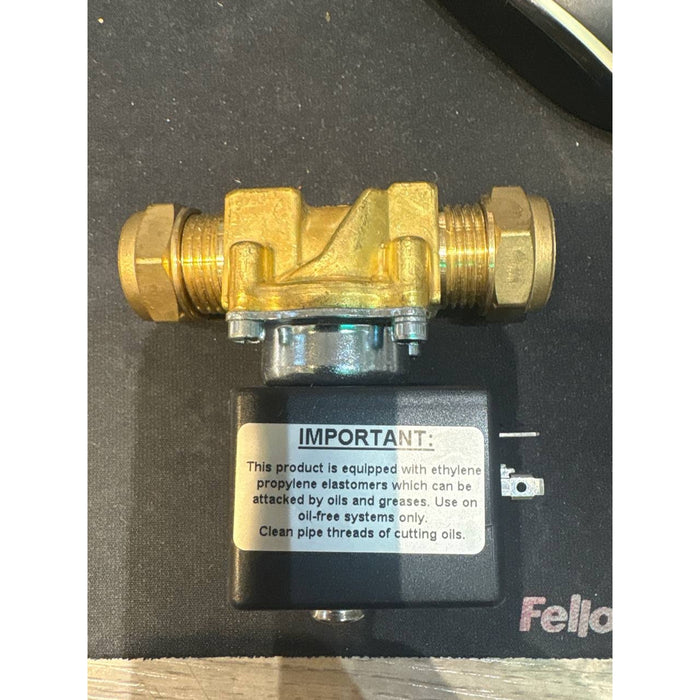

This product is equipped with ethylene propylene elastomers which can be attacked by oils and greases. Use on oil-free systems only. Clean pipe threads of cutting oils before installation. We recommend fitting a Y-type strainer at the valve inlet to prevent debris build-up.

✅ Brand New — Unused, in original packaging.
