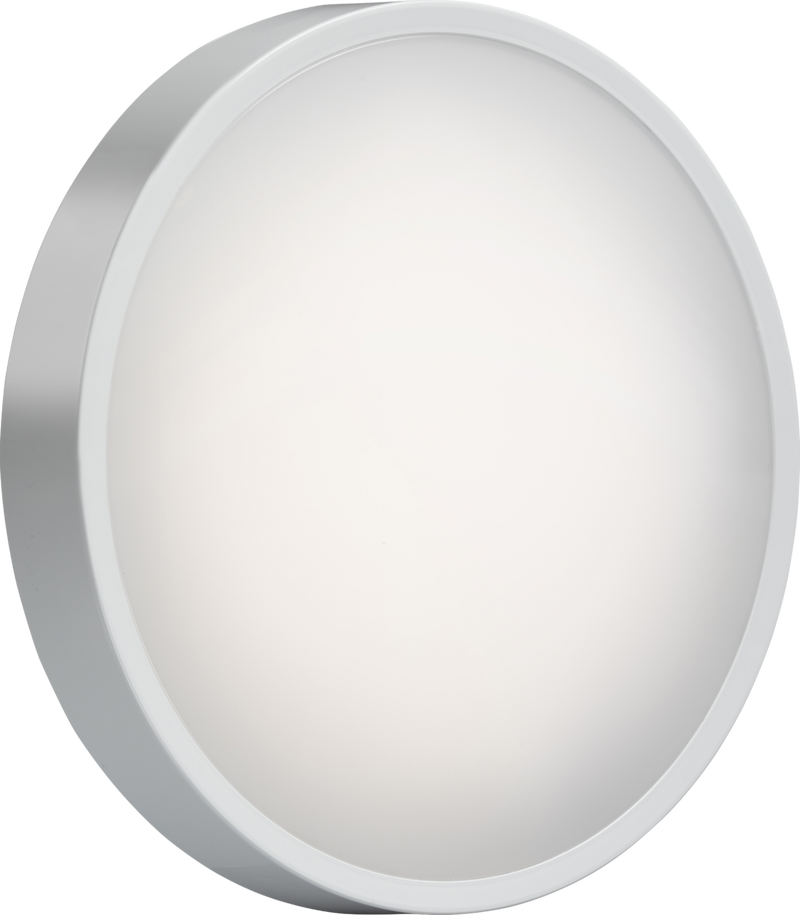

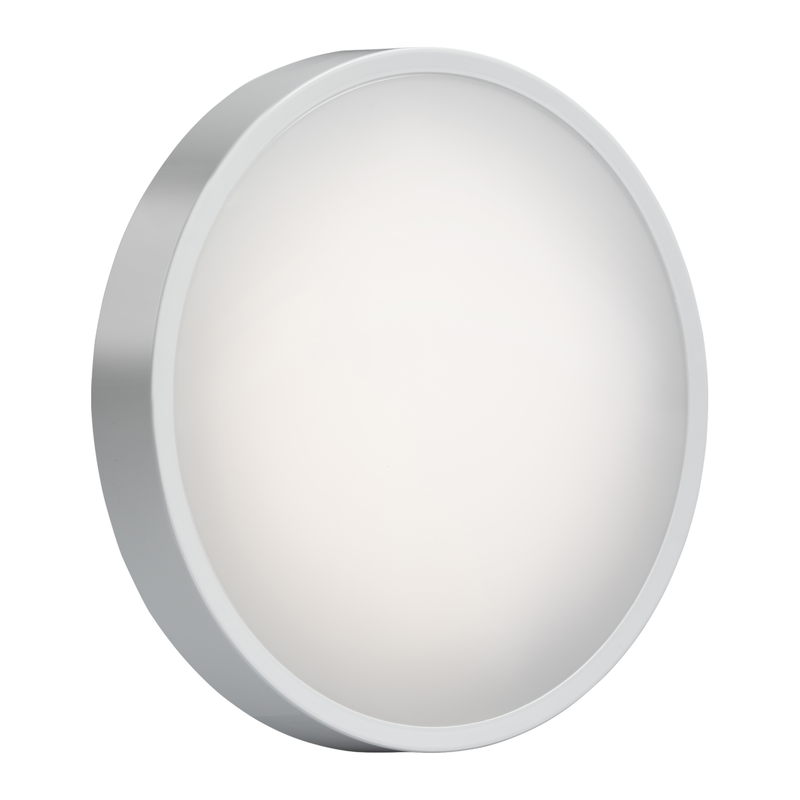

Knightsbridge BTEVP BT EVO 9/14/18W IP65 LED Bulkhead with Daylight Sensor

The Knightsbridge BTEVP BT EVO is a white LED bulkhead with an integral daylight photocell for exterior use. Choose the wattage and colour temperature to suit the installation.

• Adjustable wattage: 9W, 14W or 18W.
• Adjustable colour temperature: 3000K, 4000K or 5700K.
• Light output at 4000K: 930lm at 9W, 1400lm at 14W or 1750lm at 18W.
• IP65 weather protection and IK10 impact rating.
• UV-stabilised polycarbonate body and diffuser, supplied in white.
• Class II, non-dimmable; 230V 50Hz supply.
• Push-fit terminals, hinged gear tray and twist-lock diffuser.
• 20mm conduit entries on four sides and rear BESA mounting points.

This listing is the BTEVP daylight-sensor model. Decorative bezels are optional accessories supplied separately.

Product documents

• BTEVP product datasheet (PDF)
• BTEVP installation and maintenance instructions (PDF)
• BT EVO dismantling and recycling instructions (PDF)

Refer to the original instructions for installation, output selection and photocell settings. Installation must follow the applicable wiring and building regulations; consult a qualified electrician if in doubt.
