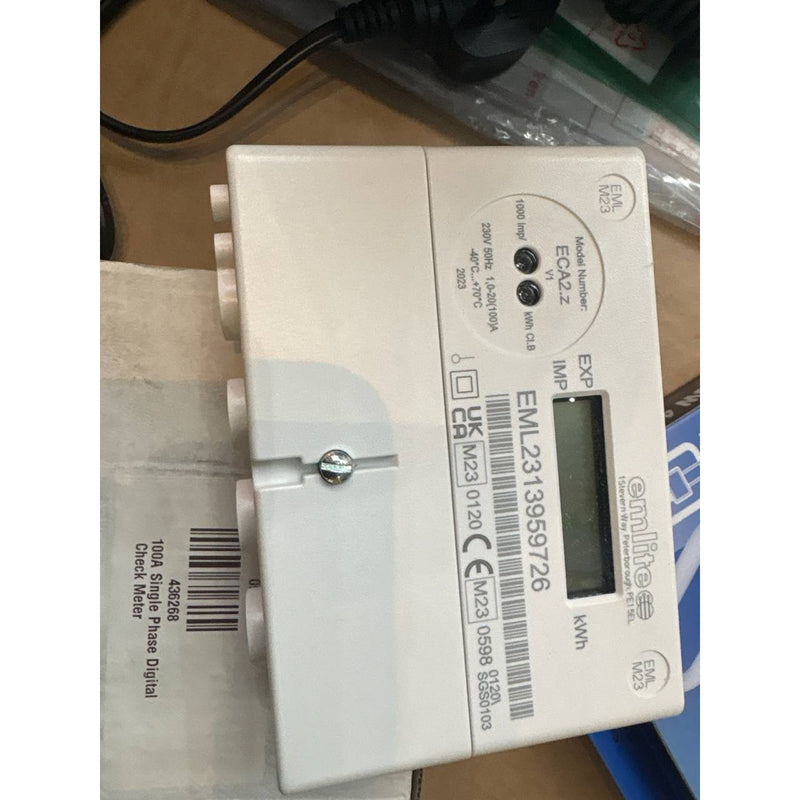

Emlite ECA2-MID 100A Single Phase Digital kWh Check Meter UK

The Emlite ECA2-MID is a compact, MID-approved single phase digital kWh electricity meter rated at 100A direct connection. Ideal for sub-metering, landlord billing, energy monitoring, and micro-generation metering. One of the world's most compact metering devices, perfect for installations where space is limited.

• Model: ECA2-MID
• Type: Single Phase Digital kWh Meter
• Current Rating: 100A direct connected
• Voltage: 220-240V, 50Hz
• Accuracy: Class B (Class 1) per MID directive
• Approval: MID certified (Measuring Instruments Directive) — suitable for billing purposes
• Display: 7-digit LCD with backlight
• Output: Pulsed output (1000 imp/kWh)
• Mounting: DIN rail (35mm) — 1 module wide
• Features: Import metering, tamper-proof sealed terminal cover
• Brand: Emlite
• Product Code: 436268

A legal requirement for many landlord and commercial sub-metering applications. MID approval means it can be used for billing tenants and verifying utility charges.
