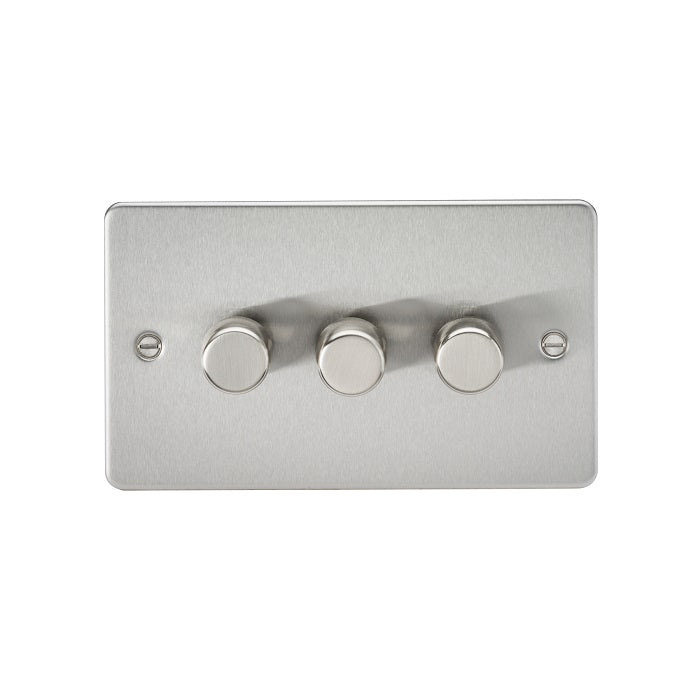

Knightsbridge FP2183BC 3G 2-Way Trailing-Edge Dimmer – Brushed Chrome

The Knightsbridge FP2183BC is a 3-gang, 2-way trailing-edge dimmer with a low-profile flat metal plate and brushed chrome finish.

Model identification: this listing's barcode 5055832980407 matches FP2183BC in the original manufacturer datasheet. It is distinct from the newer FP2193BC replacement and the CS2193BC square-edge model.

Original manufacturer specifications

• Supply: 230V 50Hz
• Manufacturer-stated load: 10–200W, or 5–150W LED
• Dimming technology: trailing edge
• Plate dimensions: 87.5mm high × 147.5mm wide; 2.5mm projection
• Minimum mounting box depth: 25mm
• Construction: premium grade steel; IP20
• Earth terminal: yes
• Terminal capacity: 2 × 1.0mm² or 2 × 1.5mm²

Specifications above are from the manufacturer datasheet dated 9 March 2022 for this original model. Check the actual product and lamp compatibility before installation; the replacement model's programming and mode-switching instructions must not be assumed to apply.

Manufacturer document

Read the original Knightsbridge FP2183BC manufacturer datasheet (PDF, 2022)

This is a product datasheet, not a wiring or installation manual. An exact FP2183BC installation-instruction PDF has not been verified; use the instructions supplied with the actual unit.
