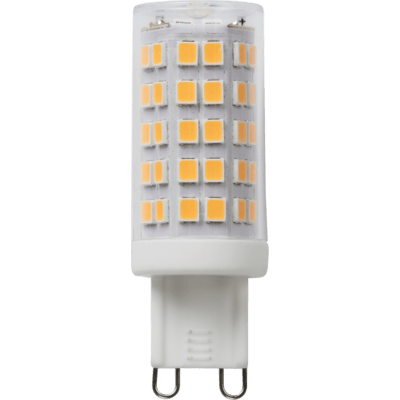

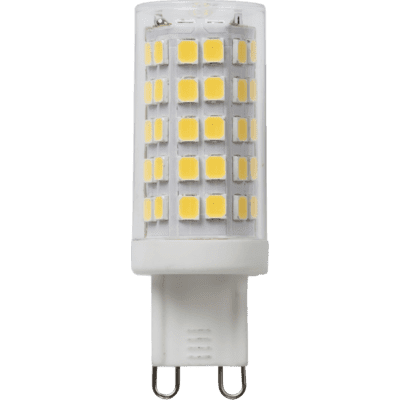

Knightsbridge G9LED17 4W G9 Dimmable LED Lamp – 4000K

The Knightsbridge G9LED17 is a 4W G9 LED capsule lamp with a clear diffuser and 4000K cool-white light. It provides a manufacturer-rated 430 lumens with a wide 270° beam.

• Manufacturer model: G9LED17
• EAN: 5056270824490
• Power and supply: 4W; 230V, 50Hz
• Cap: G9
• Light output: 430 lumens, ±5% manufacturer tolerance
• Colour temperature: 4000K cool white
• Size: 19 mm diameter × 54 mm overall height
• Construction: ceramic and polycarbonate, with a clear diffuser
• Protection: IP20, for indoor use

Dimming and fit: the manufacturer lists leading- and trailing-edge dimming and asks that compatibility is checked before installation. Check the dimmer's LED compatibility and load range, and the available space in your fitting. A G9 cap alone does not establish that the lamp will fit every enclosure.

Manufacturer size drawing

Open the original manufacturer drawing at full size

Manufacturer document

G9LED17 manufacturer datasheet (PDF)

Switch off and allow the lamp to cool before replacement. Follow the light fitting's instructions and rating limits.
