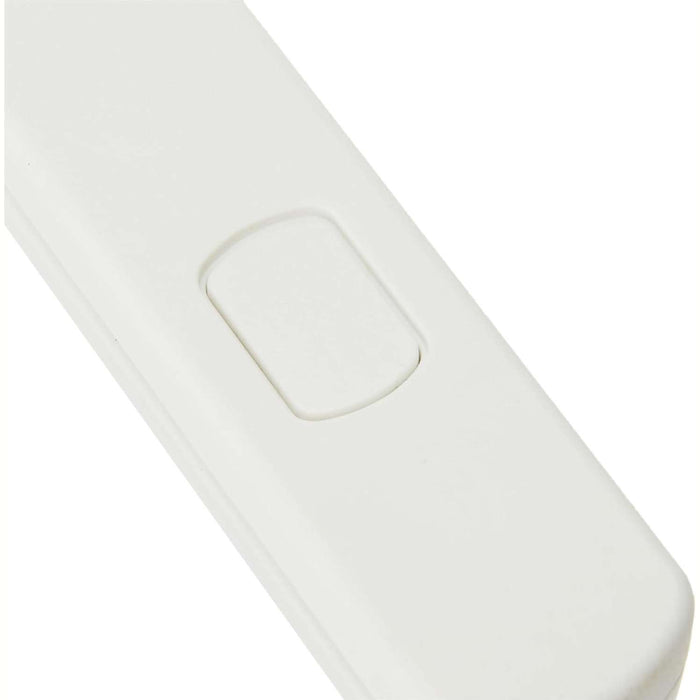

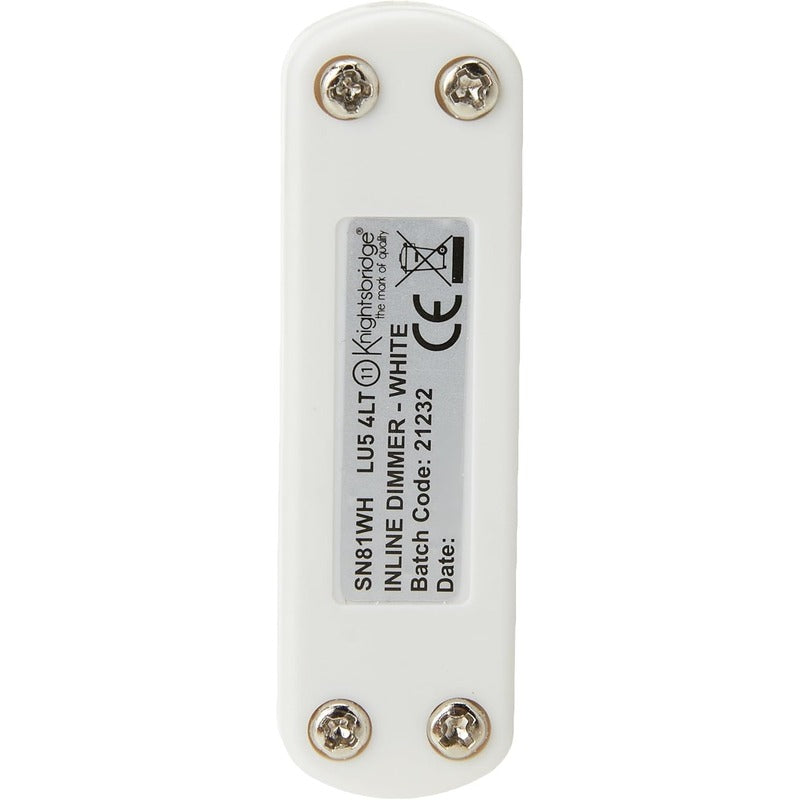

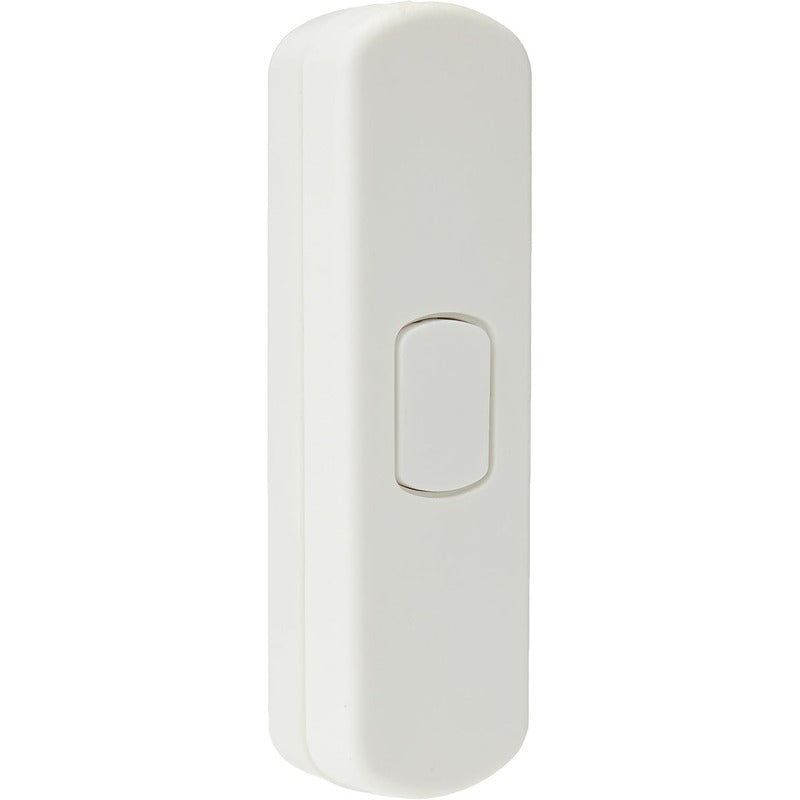

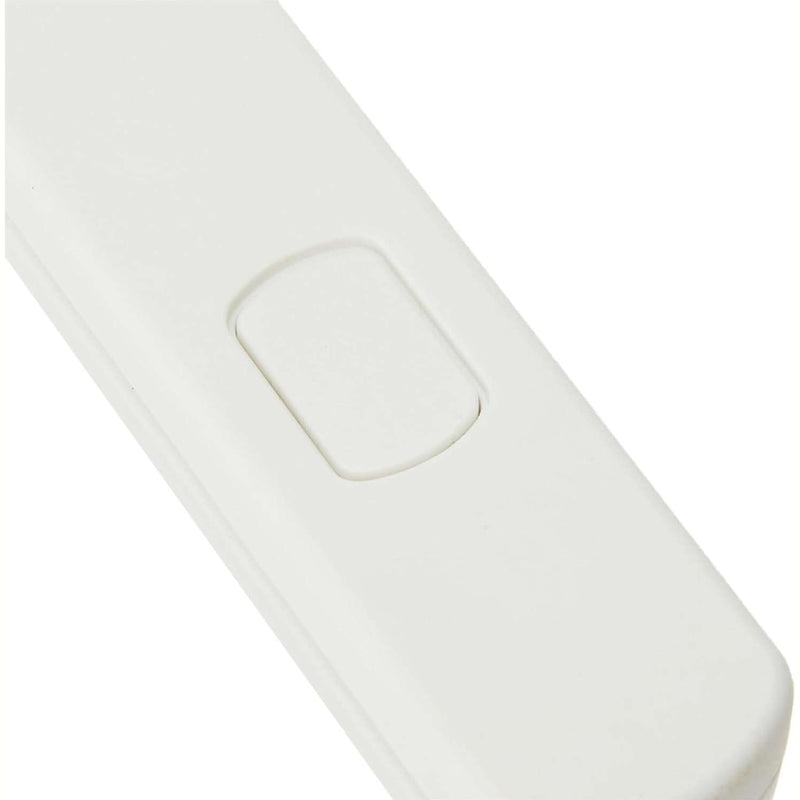

Knightsbridge SN81WH Inline Cord Dimmer – White, 1–25W LED

The Knightsbridge SN81WH is a white rewireable inline cord dimmer for low-wattage lamps. It uses push-button trailing-edge control with soft on/off operation.

• Incandescent lamp rating: 1–60W.
• Compatible dimmable LED lamp rating: 1–25W.
• 230V 50Hz supply; IP20 rated, Class II.
• White polycarbonate housing, 67mm long × 20mm wide.

LED lamps must be dimmable. Check compatibility with the lamp manufacturer before use. This listing is the white SN81WH version.

Product documents

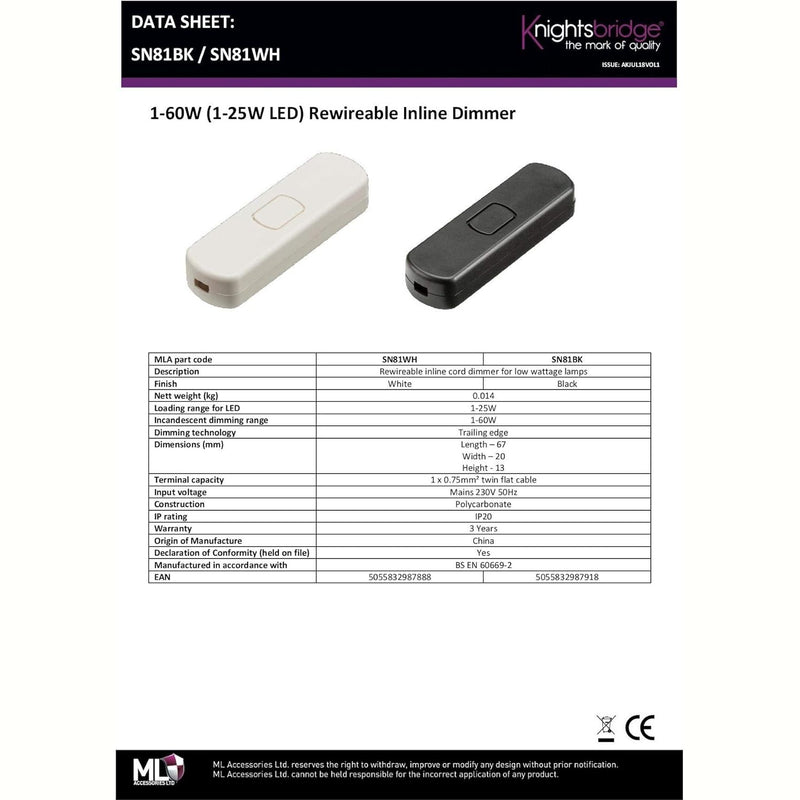

• White dimmer manufacturer datasheet (PDF, reference ZSN81WH, EAN 5055832987888)
• Knightsbridge inline dimmer installation and operating instructions (PDF)

Follow the original instructions for wiring, operation and minimum-level setup. Unplug the lamp before installation or maintenance; installation should be carried out by a qualified electrician or competent person.
