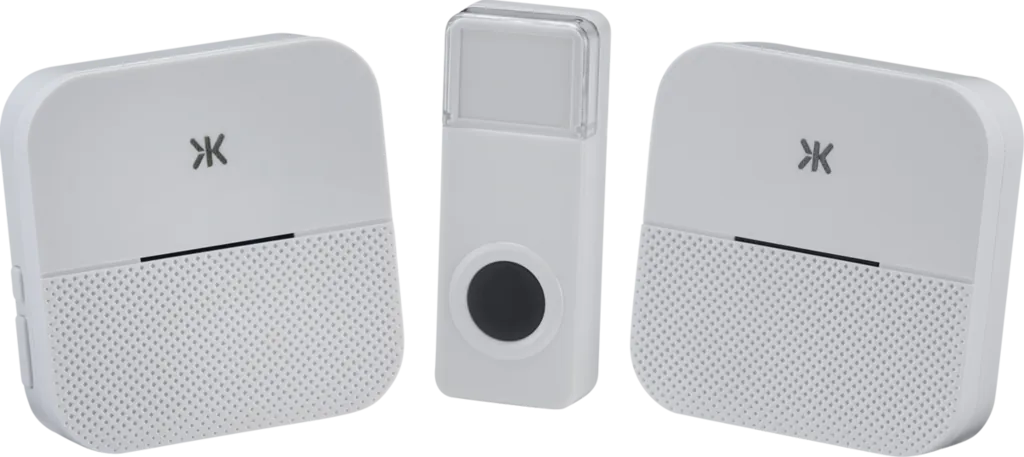

Knightsbridge DC015 Wireless Plug-In Dual Receiver Door Chime

The Knightsbridge DC015 is a white wireless door chime kit with one bell push and two 230V plug-in receivers. Place the receivers in separate indoor locations and pair them with the bell push using the manufacturer's instructions.

• Sound and alerts: 58 ringtones, adjustable volume up to a manufacturer-listed 110dB, and a visual alert.
• Wireless range: approximately 150–200m, depending on the installation and surrounding environment; 433MHz operation.
• Bell push: IP55, white with grey button and door-number sleeve. Uses one 12V 23A alkaline battery, listed by the manufacturer as included.
• Receivers: two mains plug-in units, IP20, for indoor use only.
• Mounting: bell push can be fixed with screws or adhesive pads. Avoid metal door frames that may reduce the signal.
• Model / EAN: DC015 / 5056270827507.

Battery type: the bell push requires a 12V 23A alkaline battery, rather than a CR2032 coin cell. Test the system at the intended locations before mounting, and follow the pairing and positioning guidance in the manual.

Manufacturer documents

• DC015 datasheet (PDF)
• Door chime installation, battery and pairing instructions (PDF) — includes DC015; original revision AKJUL22_V2. The manual also covers other kits and accessories; this listing is the two plug-in receiver kit.
