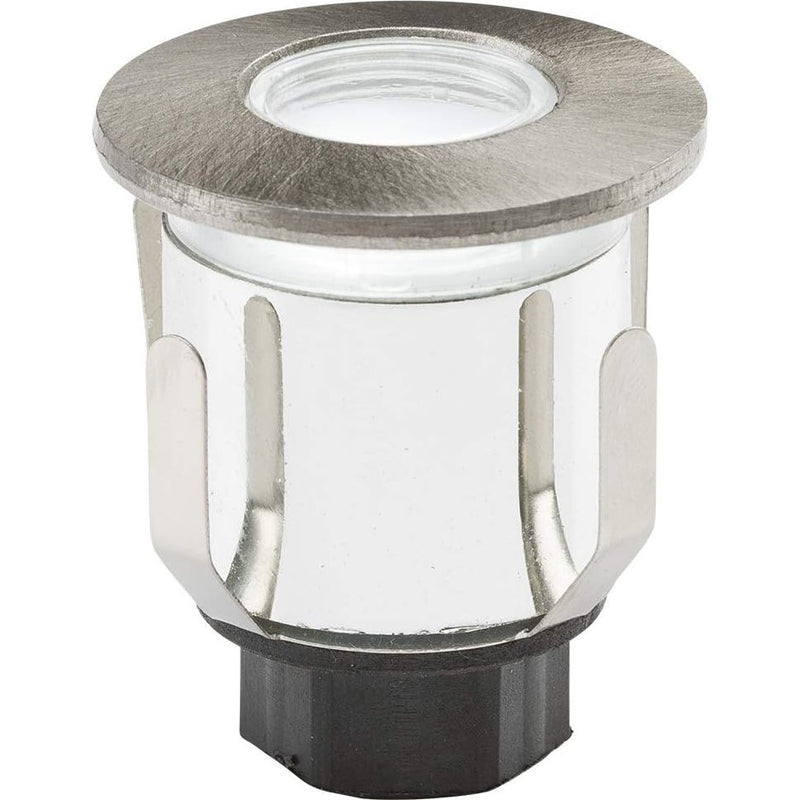

Knightsbridge LEDM06WW 0.6W Mini Ground Light – 3000K, IP65

The Knightsbridge LEDM06WW is a 0.6W mini ground light with warm-white 3000K light. It uses a 230V mains supply and comes with three interchangeable heads and a 2m cable.

• 0.6W integrated LED; 25lm luminaire output.
• 3000K warm white; non-dimmable.
• IP65 rated and Class II.
• Stainless steel and polycarbonate construction, with a brushed steel finish.
• 230V 50Hz supply; no separate transformer required.
• Supplied with 2m of 2-core 1.0mm² H05RN-F cable.

Measurements

• 38mm diameter; 29mm base diameter.
• 32mm cut-out diameter.
• 46mm overall height; manufacturer-listed recessed depth: 48mm.

Installation suitability

The manufacturer requires at least 300mm of drainage below the light. Avoid locations prone to flooding or standing water. This model is not suitable for coastal or marine environments. Follow the complete installation instructions when choosing and preparing the site.

Product documents

• LEDM06WW product datasheet (PDF)
• LEDM06 installation and maintenance instructions (PDF)

Installation must follow the applicable wiring and building regulations; consult a qualified electrician if in doubt.
