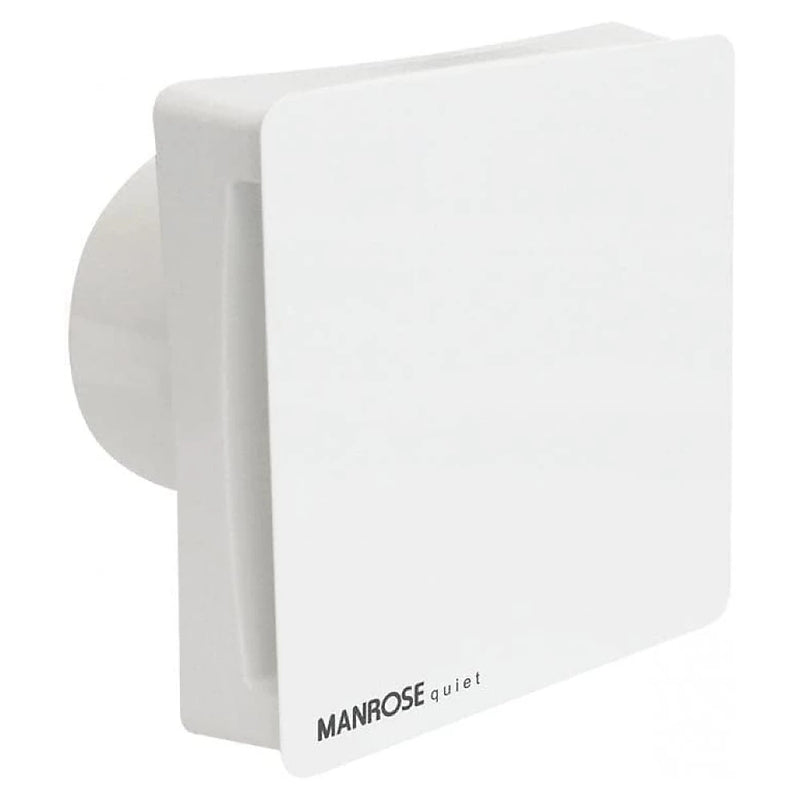

Manrose 4' (100mm) Quiet Fan X5 Conceal Timer Zone

Product information

This model works in conjunction with the room light switch, when the light is switched on the fan comes on, when the light is switched off the fan continues to operate for a pre-set time. Requires permanent live, switched live and neutral wires (3 cores excluding earth) at the fan connections to function correctly. IET Regulations (U.K.) allow for IPX5 fans to be installed into zone 1 without the need for low voltage transformer.

• Fittings & fixings not included
• Ducting not included

Features and benefits

• Mains voltage 220-240V AC 50Hz. Requires THREE separate electrical connections, permanent liv, switched live and neutral. Class II - double insulated, no earth connection required
• 5.5 watts power consumption, SFP of just 0.29W/l/s
• Extraction rate 21 litres per second, 75 cubic metres per hour. Sound output 28dB(A) @ 3m
• Timer adjustable between 5 and 30 minutes. Suitable for wall or ceiling locations
• IPX5 rated - suitable for use in zone 1 or 2 if circuit protected by RCD
• Flexible plastic backdraught strips. Made in the UK
• UKCA & CE certified
• Dimensions: 160mm wide x 162mm tall x 38mm deep (beyond installed surface). 99mm diameter spigot, extends for 81mm. For connection to 100mm diameter ducting.
