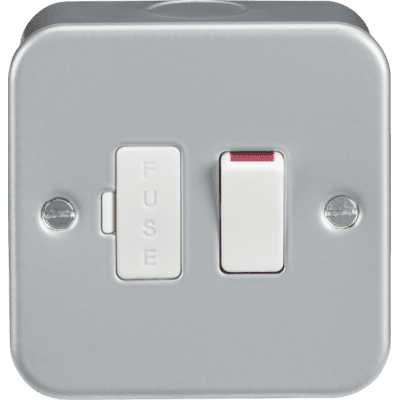

Knightsbridge M6300N 13A Metal Clad Fused Spur with Neon – Grey

The Knightsbridge M6300N is a 13A metal-clad switched fused connection unit with a neon indicator. It has double-pole switching, a powder-coated silver/grey finish and is supplied complete with its metal back box.

• Model: M6300N
• Unit rating: 13A, 230 V, 50 Hz
• Switching: double pole
• Construction: SPCC steel
• Finish: powder-coated silver/grey
• Dimensions: 81.2 mm high × 81.2 mm wide × 48.4 mm deep, as shown in the current manufacturer datasheet and drawing
• Installation: metal-clad unit with back box included
• Electrical class: Class I; earth connection required
• Terminal capacity: 3 × 2.5 mm² or 2 × 4.0 mm²
• Protection: IP20, indoor use
• Manufacturer-listed standard: BS 1363-4
• EAN: 5055832919902

Fuse selection: 13A is the unit rating. The fitted fuse and markings on the supplied unit have not been physically checked; select and verify the fuse rating to suit the appliance, cable and circuit. Follow the manufacturer instructions, provide the required earth connections and verify that the supply is isolated before work.

Manufacturer dimensions

View the full-size M6300N manufacturer drawing

Manufacturer documents

• M6300N manufacturer datasheet (PDF)
• Manufacturer wiring-accessories instructions — DCAUG22 V3 (PDF)

The current datasheet lists a 25-year manufacturer warranty, subject to the manufacturer's applicable installation and use terms.
