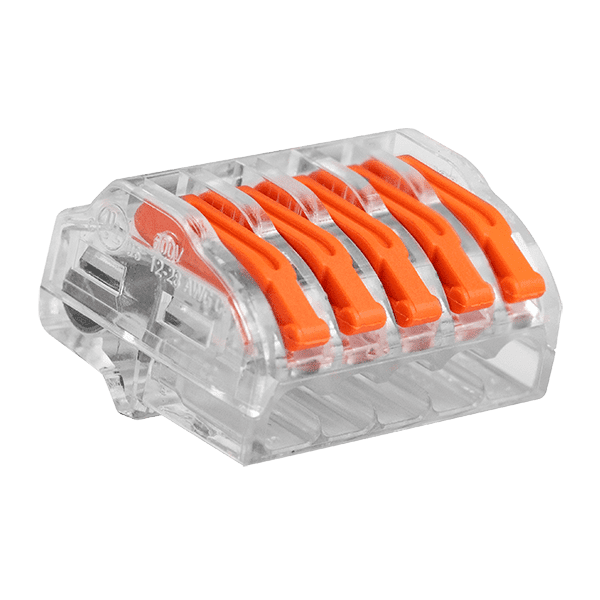

Q-NECT 32A 450V 5 Port Lever Wire Connectors - Box of 30 UK

Suitable for solid, stranded and flexible cable types, the lever operated connectors use screwless spring clamp technology — no tools needed. The inspection window allows for quick and easy testing while installed. Offering a strong and reliable connection with a conductor range of 0.2 – 4mm². Reusable, making them perfect for temporary or mobile installations. Transparent housing allows visual inspection of wire positioning.

• 32A 450V Rating
• 5 Port Lever Connector
• Conductor Range: 0.2 – 4.0mm² (Solid or Stranded)
• Tool-Free Installation
• Transparent Polycarbonate Housing
• Reusable
• Inspection Window for Testing
• Flammability: UL94V-0
• Max Operating Temperature: 85°C
• Box of 30

📄 Downloads & Specifications

• Technical Datasheet (PDF)
• Q-Nect Full Brochure (PDF)
