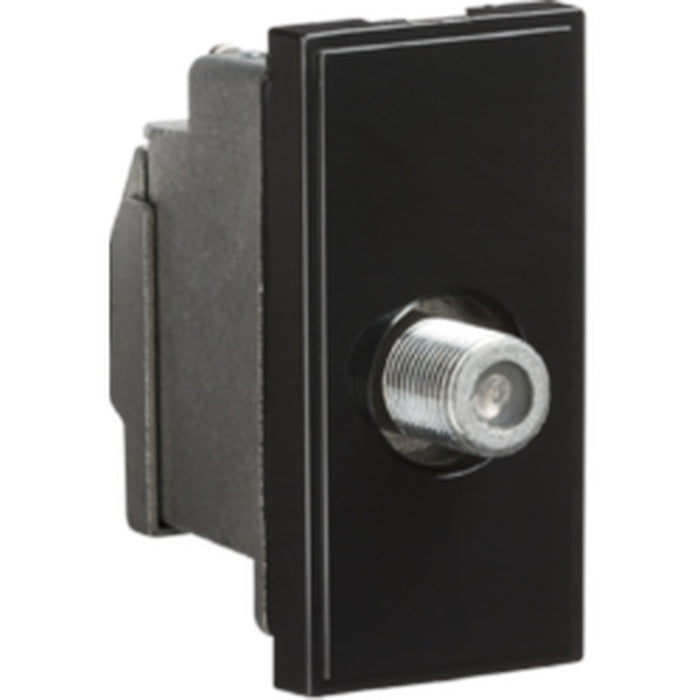

Knightsbridge NETSATSBK Screened SAT Module 25 × 50 mm – Black

The Knightsbridge NETSATSBK is a black 25 × 50 mm screened satellite outlet module with an F-type connection. It uses clamp-and-screw cable terminals.

• Model: NETSATSBK
• Module size: 50 mm high × 25 mm wide
• Current datasheet dimensions: 37.5 mm overall depth; 27 mm recessed depth
• Minimum mounting-box depth: 35 mm
• Construction: ABS
• Finish: black
• Connection: satellite F-type
• Terminals: clamp and screw
• Protection: IP20, indoor use
• Screening: manufacturer product summary states EN 50083-2; the datasheet lists BS 5733 as its manufacturing standard
• EAN: 5055832939795

Cable selection: the manufacturer specifies cable with a 1 mm conductor, giving PF100, H109F and QF100 as examples. Verify the cable and the intended modular mounting frame before fitting; no universal faceplate compatibility is asserted.

Dimension references: the datasheet gives 37.5 mm overall and 27 mm recessed depth. The linked drawing separately labels a 30 mm side-body reference and a 5 mm front section. These references should not be treated as interchangeable measurements. The supplied unit's dimensions and usable installation space have not been physically checked.

Manufacturer dimensions

View the full-size NETSATSBK manufacturer drawing

Manufacturer document

NETSATSBK manufacturer datasheet (PDF)

The current datasheet lists a two-year manufacturer warranty, subject to the manufacturer's applicable installation and use terms.
