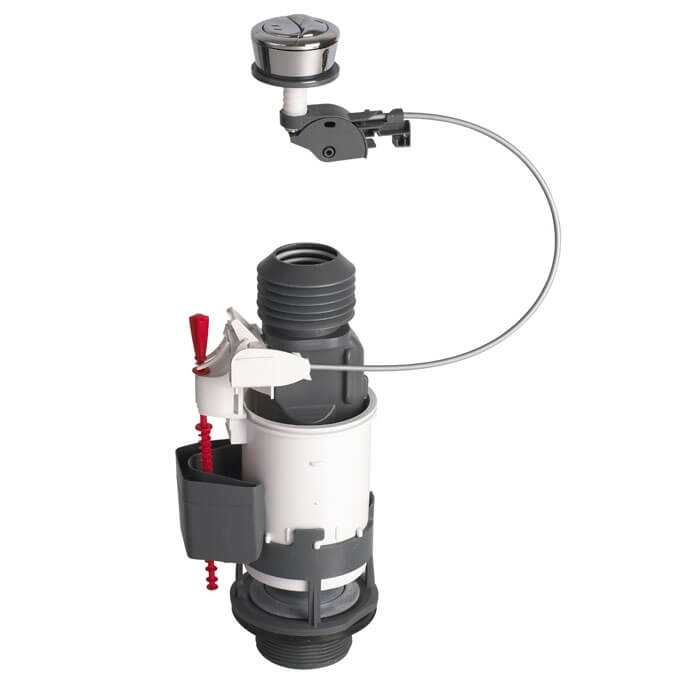

Wirquin 10120446 Jollyflush Cable Operated Dual Flush Valve & Push Button

The Wirquin Jollyflush 10120446 is a WRAS-approved cable-operated dual flush valve designed for reliable, water-saving performance in close-coupled cisterns. Its flexible cable operation allows easy installation in narrow cisterns and enables the push button to be mounted on the top or front, replacing a traditional lever with the included spacer.

Key Features

• Cable operation for flexible installation and no height adjustment needed
• Adjustable telescopic overflow from 240mm to 270mm with no cutting required
• Universal outlet suits 1-1/2″ (40mm) or 2″ cisterns with reducing adapter
• Push button fits cistern holes from 14mm to 46mm diameter
• Water-saving dual flush with adjustable volumes
• Easy to service and maintain
• Supplied with chrome button, close coupling kit and washers

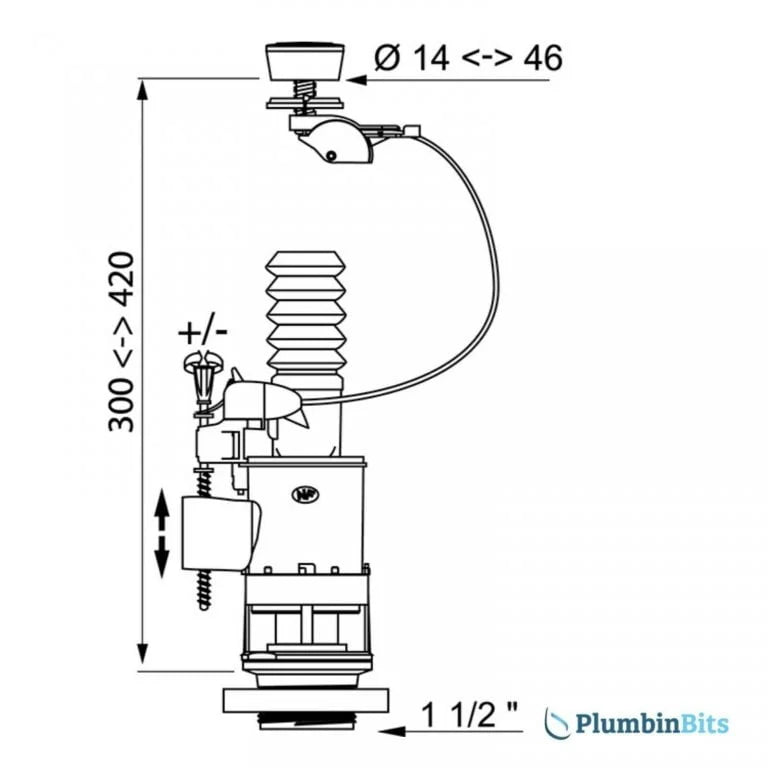

Specifications

• Cistern height compatibility: 300mm to 420mm
• Overflow adjustment: 240mm to 270mm
• Cable length: 300mm
• Outlet: 1.5″ or 2″ with reducing washer
• Button diameter range: 14mm to 46mm
• Flush rate: 2.2 l/sec (WRAS approved 1.85 l/sec)
