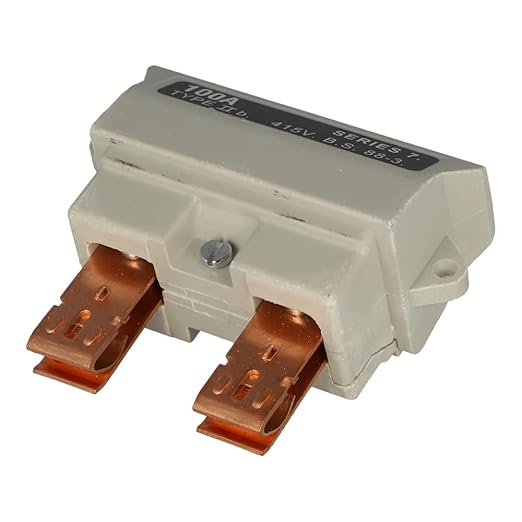

WT Henley Series 7 Main Head Cut Out 100A Single Pole Carrier (Fuse Not Included)

The WT Henley Series 7 Main Head Cut Out 100A Single Pole Carrier is manufactured from glass reinforced polyester (DMC), providing exceptional strength, durability, and excellent tracking resistance. Designed for industrial and commercial electrical panels — fuse sold separately.

Sharply serrated double entry phase and neutral terminals accept aluminium or copper conductors from 2.5mm² up to 35mm². Socket-headed terminal screws (operated by a custom designed tool) ensure effective, secure connections, while precision-designed fuse-clips guarantee low contact resistance every time.

• Supports HRC MF Fuses 60A, 80A & 100A
• Fully compliant with BS 7657:2010
• Manufactured from glass reinforced polyester (DMC)
• Sharply serrated terminals accept 2.5mm² – 35mm² aluminium or copper conductors
• All phase terminal screws held captive within the base for easy installation
• Close-coupled version interfaces with industry standard meter types to prevent theft of supply
• Units may be combined to make a Triple Pole Set
• Fuse not included

Specifications
