Condensate Pumps for Gas Boilers — Aspen Silent+, CONLIFT1, and Choosing the Right Pump for UK Installations

Modern condensing boilers are highly efficient — but that efficiency comes with a by-product: acidic condensate water. In most domestic and commercial installations, this drains away by gravity to a nearby waste pipe. But when the boiler sits in a utility room, plant room, or location where gravity drainage isn't feasible, a condensate pump is the solution. This guide covers when you need one, how to specify the right pump, and which models work best for UK heating and plumbing installations.

Why Condensing Boilers Produce Condensate

A condensing boiler extracts latent heat from flue gases, cooling them below the dew point of water vapour. This condensation collects in the heat exchanger and must drain away. Typical condensate output is 1–3 litres per hour, depending on boiler output and efficiency. The condensate is mildly acidic (pH 3–4), which is why pipework must be either plastic or acid-resistant material — standard copper pipe degrades over time.

Under BS 6798:2014 (Specification for the design, installation, commissioning, and maintenance of domestic heating and hot water systems), condensate must be disposed of safely — ideally to an internal soil stack, waste pipe, or condensate soakaway. When none of these options are practical, a condensate removal pump provides a pumped route to a suitable drain point up to several metres away.

When Do You Need a Condensate Pump?

A condensate pump is needed when:

• The boiler is below the drain level — gravity drainage is impossible, and a pumped route is the only option
• The boiler is distant from a suitable drain — gravity drainage would require a long horizontal run that isn't practical within the structure
• An external condensate pipe would freeze — while insulating the external pipe is the primary recommendation, in exposed locations a pump routing to an internal waste point eliminates freeze risk
• Retrofit situations with difficult access — where breaking into floors or chasing walls for gravity drainage would be cost-prohibitive

Condensate pumps are not a shortcut to avoid good drainage practice — BS 6798 and most boiler manufacturers' instructions specify gravity drainage as the first preference. But when gravity drainage genuinely isn't viable, a properly sized pump is a clean, compliant solution.

Key Specifications to Compare

Maximum Lift Height

This is the vertical height the pump can push condensate upward. Most mini condensate pumps achieve 5–8m maximum lift. In practice, you need to account for pipe friction losses, bends, and horizontal runs: a horizontal run of 1m is roughly equivalent to 0.1–0.2m of head loss. Always size with headroom — if you're pumping 3m vertically with 4m of horizontal pipe, choose a pump rated for at least 5m head.

Flow Rate

Condensate volume is low — typically 1–3 L/hr from a domestic boiler. However, commercial multi-boiler installations or combined boiler/AC setups can produce significantly more. Check the pump's rated flow at your actual working head, not just the maximum head figure.

Noise Level

Condensate pumps cycle on and off whenever condensate accumulates to trigger level. In open-plan spaces, kitchens, or bedrooms (for example in loft conversions or apartments), audible pumping cycles are unacceptable. The Aspen Silent+ range is designed specifically for low-noise applications, rated at 24 dB(A) or below — comparable to a quiet refrigerator.

Tank Capacity

A larger reservoir tank means the pump cycles less frequently. For domestic boilers, a 0.5–1.5 litre tank is typically sufficient. High-output commercial applications may need tanks of 2–4 litres to match condensate volume without rapid cycling.

Inlet Connections

Most mini condensate pumps accept 6mm, 8mm, or 10mm condensate tube from the boiler. Some models offer multiple inlets, which is useful when combining boiler condensate with that from an air conditioning or MVHR unit on the same pump.

Choosing the Right Pump: Application Guide

Installation Notes

Pipe sizing: Most manufacturers specify 10mm or 12mm OD tube from pump to drain. Avoid using smaller tubing — increased friction losses reduce effective head and increase pump cycling frequency.

Non-return valve: Install a non-return valve on the discharge pipe if there is any risk of back-siphon from the drain into the pump. Some pumps include an integrated non-return valve; check before adding a separate one.

Alarm output: Quality condensate pumps include an alarm terminal that signals if the tank overfills (indicating a blockage or drainage failure). Wire this to the boiler's external control terminal where possible — this shuts the boiler down before condensate backs up into the heat exchanger. All four pumps featured below include an alarm output.

Power supply: All condensate pumps require a 230V supply. They draw very little power (typically 10–25W) but must be supplied from a suitable fused spur — not plugged into a 13A socket. Ensure the spur is accessible for servicing.

Commissioning: After installation, manually pour a small quantity of water into the boiler's condensate outlet to verify flow through the pump, check for leaks, and confirm the pump trips correctly at high level and resets on drain-down.

Featured Products

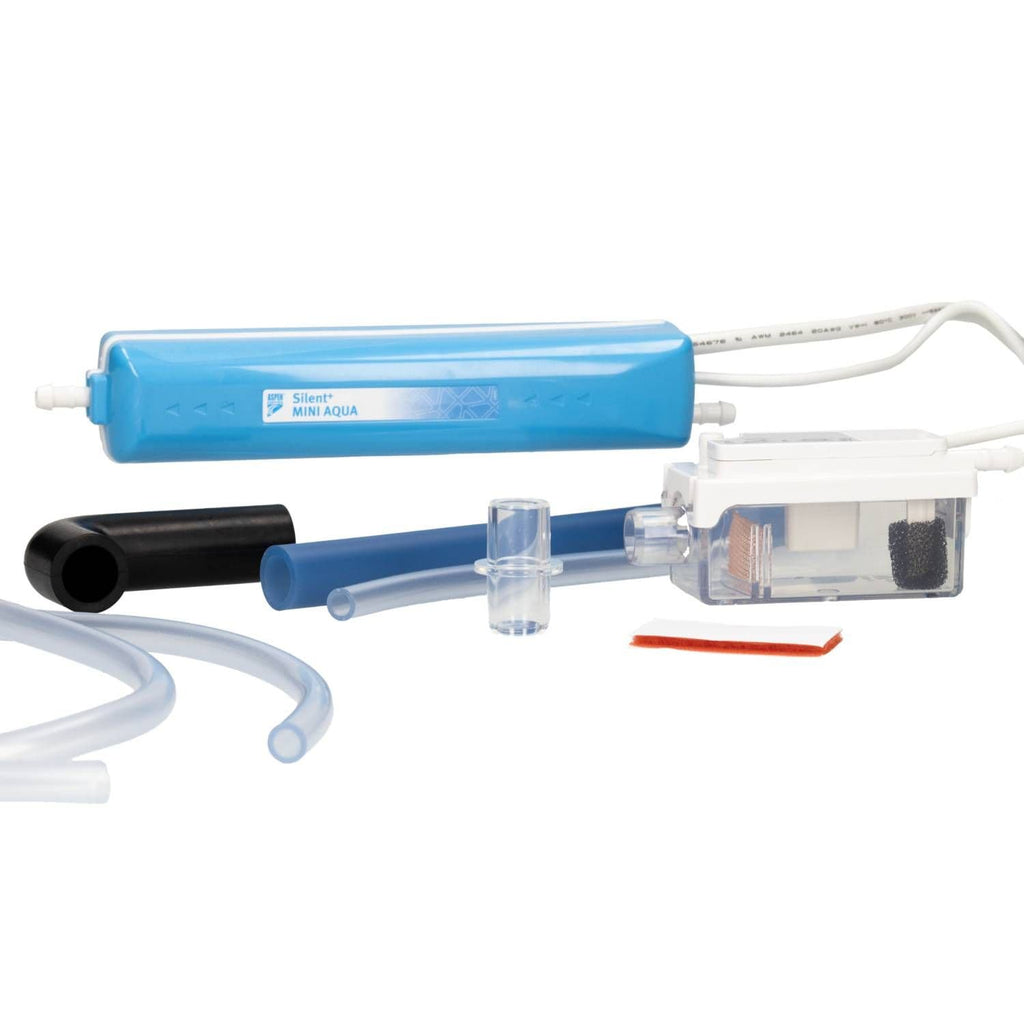

1. Aspen Silent+ Mini Aqua Gen 5 Condensate Removal Pump (FP3420)

The market-leading silent condensate pump for domestic heating installations. The fifth-generation Silent+ Mini Aqua is rated at 24 dB(A) — suitable for installation in bedrooms, living spaces, and any noise-sensitive application. It features a 0.75-litre tank, 8m maximum head, and a dual-float level control for reliable, energy-efficient cycling. Multiple condensate tube inlet sizes are accepted (6/8/10mm). Includes a volt-free alarm output for boiler lockout integration.

Best for: Domestic combi boiler installations where noise matters — apartments, loft conversions, open-plan kitchens with boiler cupboards.

View Aspen Silent+ Mini Aqua Gen 5 (FP3420)

2. Aspen Mini Orange Condensate Removal Pump (FP2212)

The Mini Orange is a compact, bright-orange pump designed for rapid visual identification during service. It offers a 5m maximum head, 0.6-litre tank, and straightforward single-float level switching. The bright housing makes it instantly visible in cluttered utility cupboards or plant rooms, reducing time spent tracing pipework on service calls. Accepts 6/8/10mm condensate tube inlets and includes an alarm output.

Best for: Standard domestic installations and commercial sites where quick pump identification during service is valued. More compact footprint than the Silent+ Gen 5.

View Aspen Mini Orange (FP2212)

3. CONLIFT1 LS Condensate Removal Pump

The Grundfos CONLIFT1 LS is a robust, widely specified condensate pump suited to both domestic and light commercial boiler installations. It features a 10m maximum head (the highest in this selection), a 2-litre tank, and a fully adjustable discharge pipe that can exit in any direction — useful in tight spaces where pipework routing is constrained. The 'LS' variant includes a low-noise pump motor, making it suitable for occupied spaces, and an integrated alarm relay for boiler lockout. Compact dimensions allow installation directly beneath most floor-mounted boilers.

Best for: Installations requiring maximum head (basement to ground level), larger condensate volumes, or where pump-to-drain run length is long. The 2L tank also reduces cycling frequency on high-output boilers.

View CONLIFT1 LS

4. Aspen MAX Hi-Flow Low Profile Condensate Tank Pump (FP3349)

The lowest-profile pump in the Aspen range, designed for fan coil units, commercial multi-split air conditioning, and other applications where headroom above the pump is restricted. The 'Hi-Flow' designation refers to the pump's ability to handle higher condensate volumes — suitable for combining boiler and AC condensate in a single pump. Maximum head is 5m with a 1.0-litre tank. The low-profile form factor (under 60mm height in mounting position) allows installation in ceiling voids, fan coil unit trays, and under-counter positions inaccessible to standard mini pumps.

Best for: Commercial AC or multi-boiler installations where condensate volume is higher and physical clearance is limited. Also suits retrofit jobs where only a shallow void is available.

View Aspen MAX Hi-Flow Low Profile (FP3349)

Summary: Which Condensate Pump Should You Specify?

For most domestic combi boiler installations where noise could be an issue, the Aspen Silent+ Mini Aqua Gen 5 is the default choice. For basement plant rooms or long pump runs, the CONLIFT1 LS's 10m head and 2-litre tank make it the stronger specification. Commercial and AC applications point toward the Aspen MAX Hi-Flow Low Profile.
