Fused Connection Units, Switched Fused Spurs, and FCU Wiring: A UK Electrician's Guide

Fused connection units (FCUs) are one of the most versatile wiring accessories in a UK electrician's toolkit. From protecting kitchen appliances to providing safe isolation of boilers and immersion heaters, the FCU is everywhere in domestic and commercial electrical installations. This guide covers every type of FCU, fuse selection, wiring methods, and compliance with BS 7671.

1. What Is a Fused Connection Unit?

An FCU is a wiring accessory that combines a switched (or unswitched) outlet with a cartridge fuse holder. It provides:

• Overcurrent protection: the fuse protects the connected appliance's flex and prevents overloading the ring or radial circuit feeding it
• Local isolation: switched FCUs provide a local isolator for the connected load (compliant with BS 7671 Regulation 462 for isolation requirements)
• Spur conversion: FCUs allow fused spurs to be taken from ring final circuits — the fuse rating limits current to the spur and connected appliance

FCUs are available in standard UK single-gang plate format (86mm × 86mm) or double-gang (146mm × 86mm) to match standard back boxes. They accept BS 1362 cartridge fuses in the same ratings used in 13A plug tops.

2. Types of FCU

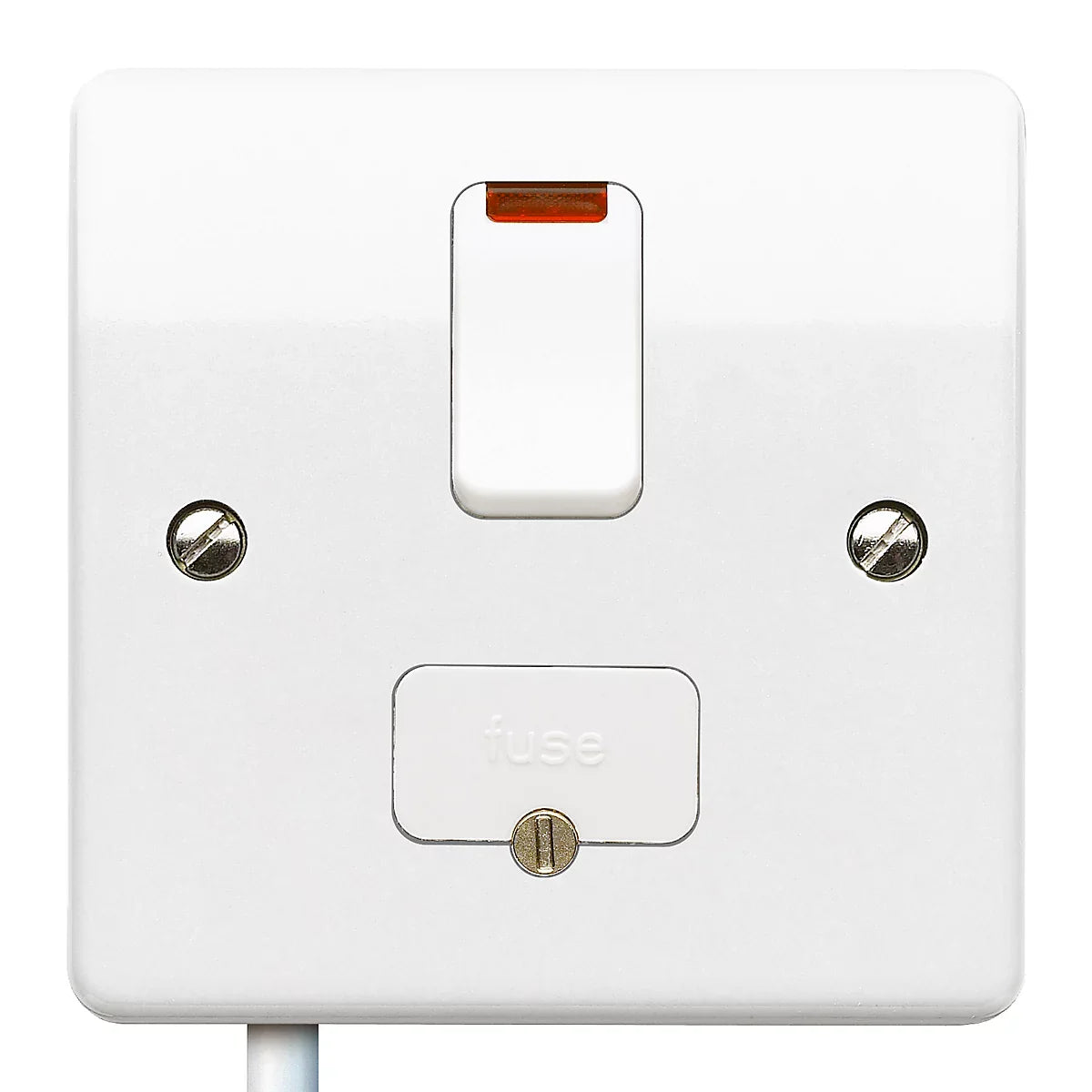

Switched FCU with Flex Outlet

The most common domestic type. Has an on/off rocker switch and a knockout or grommeted flex outlet in the faceplate, allowing a fixed appliance to be permanently wired to the FCU without a plug. Used for: extractor fans, waste disposals, dishwashers, washing machines, kitchen appliances.

Switched FCU without Flex Outlet (with Neon)

No flex outlet — the connection is made on the back of the unit via fixed terminals. Used where the appliance is wired in cable rather than flex (e.g., boiler feed, immersion heater feed, panel heater). The neon indicator shows when the FCU is switched on — useful for confirming power to a boiler or immersion.

Unswitched FCU

Provides fusing only, no local switch. Used where isolation is provided elsewhere (e.g., at the distribution board) or where the appliance has its own integral on/off control. Less common in modern installations where Part P requires accessible local isolation of fixed appliances.

Dual USB FCU

Combines an FCU with one or two USB-A or USB-C charging ports. Increasingly specified for bedside and study locations.

Double-Pole Switched FCU (DPFCU)

Switches both line and neutral simultaneously, providing true double-pole isolation. Required for:

• Connections in bathroom zones (where applicable)
• Any appliance where safe isolation requires both poles switched (e.g., boiler connections per manufacturer's wiring instructions)
• Commercial installations and anywhere BS 7671 Regulation 537.3.2 applies

45A DP Switched Fused Connection Unit (Cooker/Shower Fused Unit)

Not technically an "FCU" in the BS 1362 fuse sense, but a dedicated DP switch rated for higher currents. Used for cookers, electric showers, and immersion heaters on their own dedicated circuits. These do not contain a cartridge fuse — overcurrent protection is provided by the MCB at the distribution board.

3. Fuse Selection

FCUs accept standard BS 1362 cartridge fuses in the following ratings:

Best practice: Always size the fuse to protect the flex or fixed wiring feeding the appliance, not just to match the appliance's current draw. A 1mm² flex is limited to 10A continuous — a 13A fuse will not protect it adequately if it's only carrying a small load; use 3A or 5A instead.

Fuse Sizing for Common Applications

• Boiler: 3A (boilers draw typically 100–250W; 3A protects the 0.75mm² flex commonly specified by boiler manufacturers)
• Immersion heater: 13A (3kW element; but note — immersion heaters should be on dedicated radial circuits, FCU used for local isolation)
• Extractor fan: 3A (fans draw 15–100W; 3A provides adequate protection for 0.5mm² flex)
• Dishwasher/washing machine: 13A (draws up to 2.5kW on heating element)
• Fridge/freezer: 5A (typical 100–200W draw, but 5A allows for starting current)
• LED lighting spur: 1A or 2A (protects against flex overloading even with very low LED loads)

4. Wiring an FCU — Domestic Ring Circuit Spur

The most common application is wiring a fused spur from a ring final circuit to supply a fixed appliance.

Regulatory Requirements

• A spur from a ring final circuit must be fused (BS 7671 Reg 433.1.7) — hence the FCU
• Each spur may supply only one socket outlet, one FCU, or one fixed appliance — not a socket and an FCU in series
• The number of spurs must not exceed the number of socket outlets on the ring
• The spur cable must be the same CSA as the ring cable (typically 2.5mm² T&E)

Wiring Connections

FCUs have two sets of terminals:

• FEED (IN): connects to the incoming supply (from the ring or radial circuit)
• LOAD (OUT): connects to the appliance or downstream wiring

Core identification:

Important: The fuse is in series with the LOAD side only. The FEED terminals remain live regardless of the switch position. Always isolate and verify dead before working on an FCU.

Step-by-Step Installation

1. Isolate the ring circuit at the consumer unit and prove dead with an approved voltage indicator
2. Identify a socket on the ring for the spur connection — do not create a spur from an existing spur
3. Run 2.5mm² T&E from the back of the socket to the FCU back box position
4. At the ring socket: connect the spur cable to the same terminals as the ring conductors (all browns together, all blues together, earths together via a terminal block if needed)
5. At the FCU: connect spur cores to FEED terminals (L, N, E)
6. Connect the appliance cable/flex to LOAD terminals (L, N, E)
7. Fit the correct fuse rating for the appliance
8. Secure back box and faceplate
9. Restore power and test: confirm switched operation with a socket tester or voltage indicator

5. Wiring an FCU for a Boiler

The boiler FCU is one of the most common FCU applications. It provides:

• Local isolation for boiler servicing (as required by gas regulations)
• Fuse protection for the boiler's control wiring (3A)
• Neon indicator confirming power is on

Recommended specification: 13A Switched FCU with Neon, double-pole. Fuse: 3A. Cable: 1.5mm² T&E from ring or radial circuit.

Boiler FCU Positioning

• Mount in an accessible position adjacent to or above the boiler
• Must be visible from the boiler so a gas engineer can confirm isolation before working
• Not inside an airing cupboard where it could be accidentally switched off — unless it's clearly labelled
• In bathroom: FCU must be outside the bathroom or in Zone 3 (outside 2.4m from bath/shower) and double-pole

6. Wiring an FCU for an Extractor Fan

Bathroom and kitchen extract fans are typically wired from the FCU LOAD terminal, with the FCU supplied from the lighting circuit or a dedicated spur. The switching arrangement depends on the fan type:

Intermittent Fan (switched with light)

• FCU supplies permanent live to fan live terminal
• Switched live from the bathroom light switch also runs to the fan
• Fan starts when light comes on; overrun timer continues fan after light is off

Timer/Humidity Fan

• FCU supplies permanent live and neutral to fan
• Fan runs on its internal timer/humidity sensor — no switched live required
• FCU remains permanently on (or switched by a pull cord if in bathroom)

Fuse rating: 3A for virtually all domestic extract fans.

7. FCUs in Bathroom Zones

BS 7671 Section 701 (Special Locations — Bathrooms) restricts wiring accessories in bathrooms:

• Zone 1 (inside bath/shower enclosure): no FCUs permitted
• Zone 2 (within 0.6m of bath/shower edge): no standard FCUs — only IPX4-rated accessories specifically designed for Zone 2
• Outside zones: FCUs may be installed but should be double-pole switched if within the bathroom room (for isolation purposes)
• Shaver unit (BS EN 61558-2-5): an isolating transformer-based shaver socket is the only socket-type device permitted in bathroom zones

In practice, most bathroom FCUs (for extractor fans, heated towel rails, mirror demister pads) are located outside the bathroom zones — in the adjacent wall space, hallway, or airing cupboard.

8. FCUs for Immersion Heaters

Immersion heaters are high-current loads (3kW) and require dedicated radial circuits. The FCU in this application provides local isolation for the immersion heater — it does not provide primary overcurrent protection (the MCB at the consumer unit does this).

• Dedicated circuit: 20A radial, 2.5mm² T&E, 20A MCB at CU
• FCU specification: 20A DP switch (often called an "immersion heater switch" or "20A DP switch") — not a standard 13A FCU
• Alternatively: 13A FCU with 13A fuse if supplied from a ring circuit (less common — a 3kW load is at the limit of a ring circuit spur and should really have a dedicated supply)
• Position: adjacent to hot water cylinder, accessible for isolation

9. Inspection and Testing

After installing any FCU, complete the following verification:

• Visual inspection: correct fuse rating fitted, connections secure, earth continuity visible at all terminals
• Continuity test: verify earth continuity from FCU to consumer unit earthing point
• Insulation resistance test: line-neutral, line-earth, neutral-earth — minimum 1MΩ (BS 7671 Table 61)
• Polarity check: confirm line is at L terminal of FCU feed, not swapped with neutral
• Operation test: switch on, verify connected appliance powers up; switch off, verify isolation

10. Common Installation Mistakes

• Wrong fuse rating: Fitting a 13A fuse in a 3A application — overprotects the circuit without protecting the appliance flex. Fit the correct fuse for the load.
• FEED and LOAD reversed: The appliance ends up connected to the always-live FEED side, bypassing the switch. Always identify and connect FEED from supply and LOAD to appliance.
• Spur from a spur: Never take a spur from a socket that is itself a spur — this creates a series spur, not permitted under BS 7671.
• Missing earth at FCU: FCUs must be earthed even if the connected appliance is Class II (double-insulated). The FCU metalwork must be earthed.
• FCU for shower or cooker: Standard 13A FCUs are not suitable for 7.2kW+ showers or cookers. Use a dedicated DP switch rated for the load.
